- 18 -

Only for training and service purposes

LGE Internal Use Only

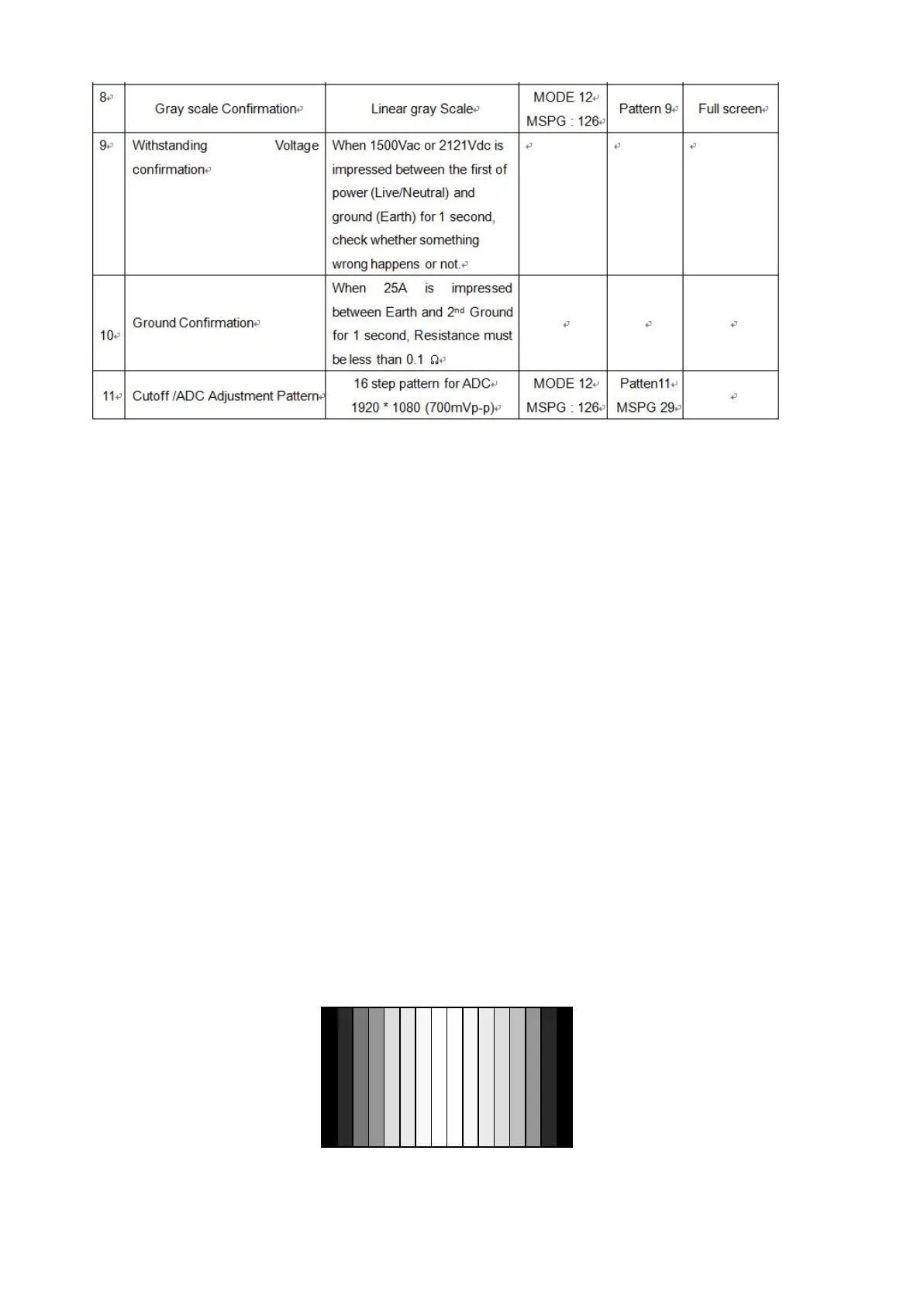

*Note 1 (Test condition):

- mode12(1920x1080 @60Hz),

- Burst pattern

- 100V ~ 240Vac

- Analog & Digital & HDMI

- After aging 30min

5. Pattern for Adjustment

Pattern 0 : FULL BLACK (State of without video signal )

Pattern 1 : FULL WHITE (Don’t display other Character except for White Pattern)

Pattern 3 : FULL WHITE

Pattern 4 : Cross hatch pattern (Horizontal 10Line, Vertcial 8Line) & Rectangle Pattern

Pattern 5 : 1 Dot on, 1 Dot off & Rectangle Pattern

Pattern 6 : Vertical Sync only input (Use signal cable of which Pin #5 is GND)

Pattern 7 : Horizontal Sync only input (Use signal cable of which Pin #5 is GND)

Pattern 8 : State of without Vertical/Horizontal Sync and Video Signal. (Use signal cable of which Pin #5 is GND)

Pattern 9 : 8 Color Bar Pattern + 16 Gray Level Pattern

Pattern 10 : SMPTE Pattern

Pattern 11 : 16 Gray Step Pattern (700mV)

)
