TROUBLESHOOTING GUIDE
- 20 -
Copyright © 2010 LG Electronics. Inc. All right reserved.
Only for training and service purposes
LGE Internal Use Only

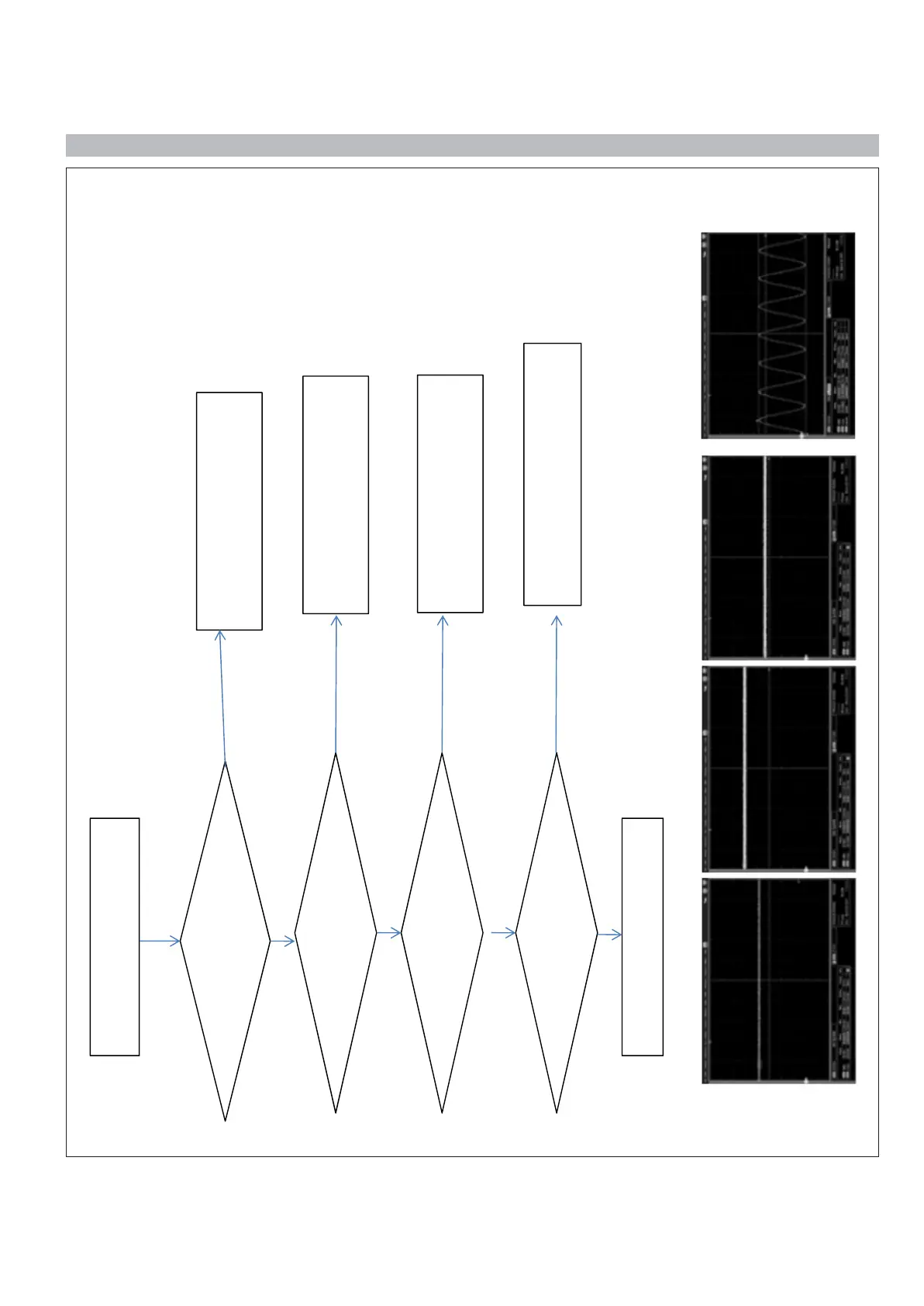

1. NO POWER
`
No power issue
Check JK100 PIN 1
Is IC102
PIN2(19V),PIN3(5V)
CHECK ADAPTER
CHECK IC102
Is IC 201
PIN1(3.3V)
PIN3(1.2V).
CHECK 201
Is IC100 PIN45,PIN46
PULSE
CHECK CRYSTAL X100
YES
YES
YES
NO
NO
NO
NO
CHECK IC100
IC102‐#1 IC102‐#2 IC201
X100
