EXTERNAL EQUIPMENT SETUP
PILLOW SPEAKER
RGB IN (PC)
RF IN
TV-LIN
K
CFG
SPEAKER
OUT(8Ω)
REMOTE
CONTROL
OUT
RS-232C IN
(SERVICE ONLY)
GAME CONTROL
/ M.P.I.
PILL
O
W
S
PEAKE
R
RGB IN
(
PC
)
RF
IN
TV
-L
INK
C
F
G
S
PEAKER
OUT
(
8Ω
)
R
EM
O
T
E
C
ONTROL
O
UT
R
S
-2
3
2C I
N
(
SERVICE ONLY
)
GAME CONTROL
/
M.P.I
.
AUDIO IN
(RGB/DVI)
/DVI IN IN
1 2
L R
DVI-DTV OUTPUT
L
R
1
2
NOTE
G A DVI to HDMI cable or adapter is required for
this connection. DVI doesn't support audio, so a
separate audio connection is necessary.
!
?
!
?
! !
DVI to HDMI Connection

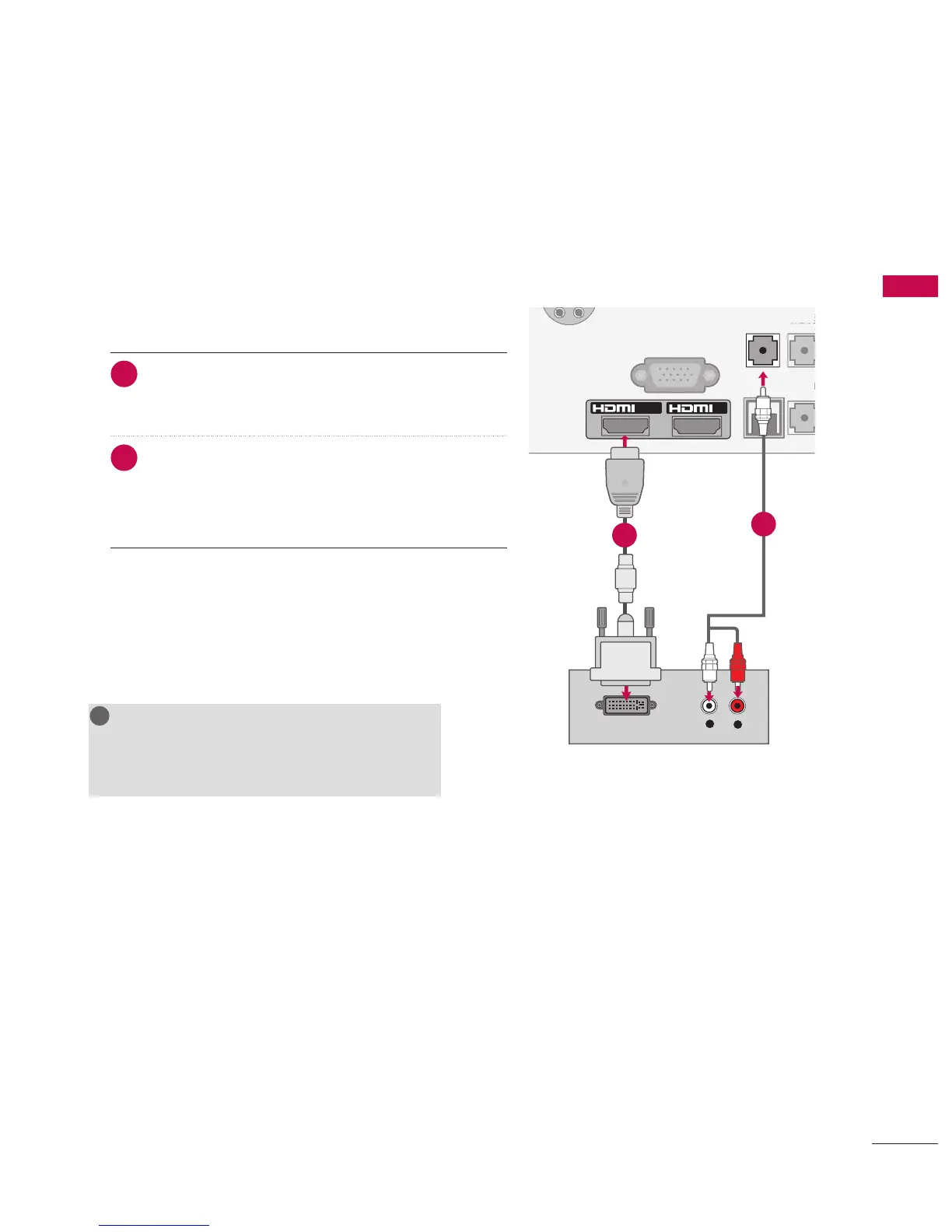

1. How to connect
1
Connect the DVI output of the digital set-top box to
the HDMI/DVI IN 1 jack on the TV.
2
Connect the audio output of the digital set-top box to
the AUDIO IN(RGB/DVI) or AV IN AUDIO jack on
the TV.
2. How to use
V Turn on the digital set-top box.
(Refer to the owner’s manual for the digital set-top box.)
V Select the HDMI 1 input source on the TV using the
INPUT button on the remote control.
