LG 26LX2R User Manual

23
Installation
(R) AUDIO (L)
DVI-DTV OUTPUT
PC SOUND
RS-232C INPUT
(CONTROL/SERVICE)
REMOTE
CONTROL
DVI INPUT
(PC/DTV INPUT)
VARIABLE
AUDIO OUT
R
L
HDMI

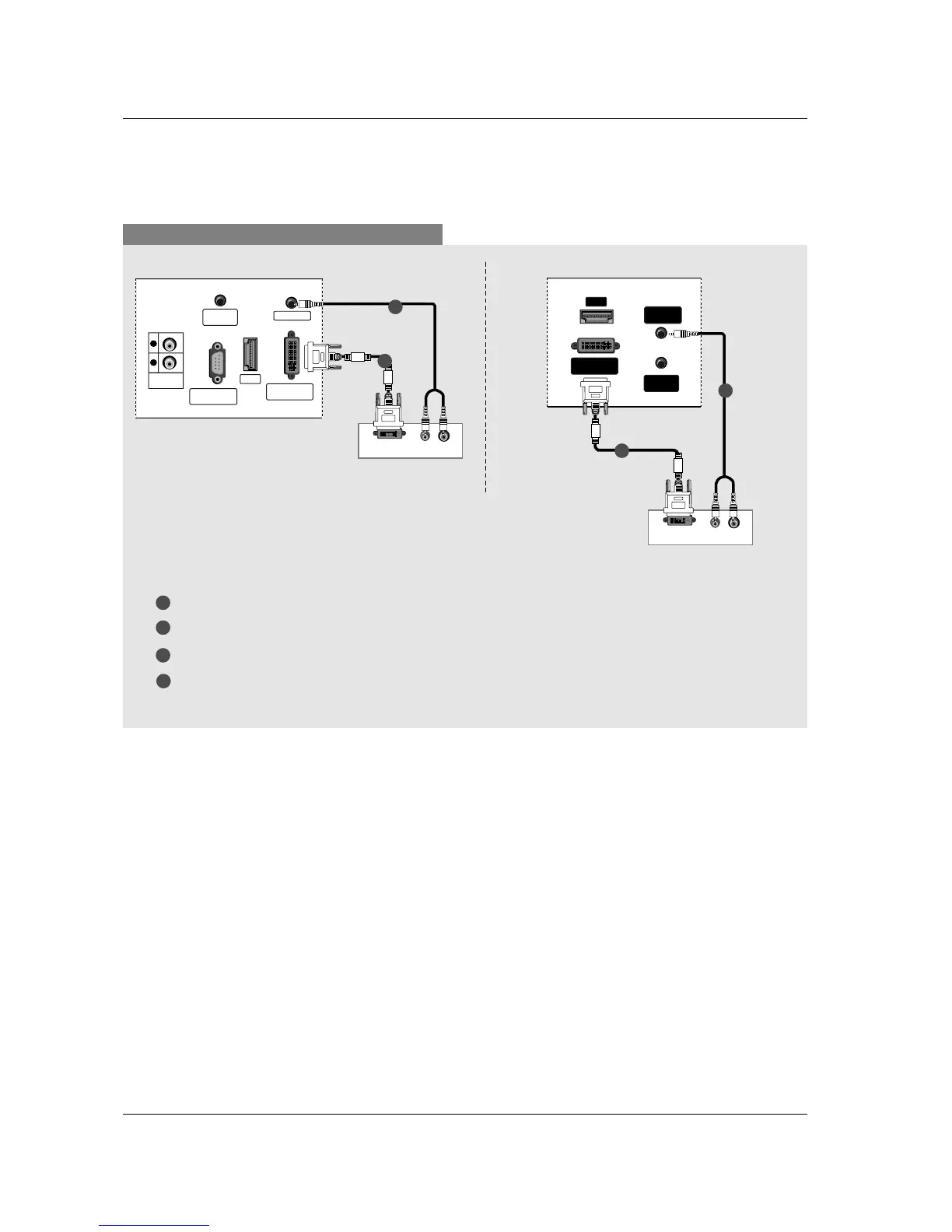

When connecting with a DVI cable
1
1
2
2
3
4
Connect the DVI output of the digital set-top box to the DVI INPUT (PC/DTV INPUT) jack on the set.
Connect the digital audio outputs of the set-top box to the PC SOUND jack on the set.
Turn on the digital set-top box. (Refer to the owner’s manual for the digital set-top box.)
Select DVI DTV input source with using the INPUT button on the remote control.
Digital Set-top Box
(R) AUDIO (L)
DVI-DTV OUTPUT
PC
SOUND
REMOTE
CONTROL
DVI INPUT
(PC/DTV INPUT)
HDMI
1
2
Digital Set-top Box
TV Back panel (32inch)
TV Back panel (26inch)

LG 26LX2R Specifications

General

Brand	LG
Model	26LX2R
Category	LCD TV
Language	English
