Installation
- After subscribing to a cable TV service from a local provider and installing a converter, you can watch cable
TV programming. The TV cannot display TV programming unless a TV tuner device or cable TV converter
box is connected to the TV.
- For further information regarding cable TV service, contact your local cable TV service provider(s).

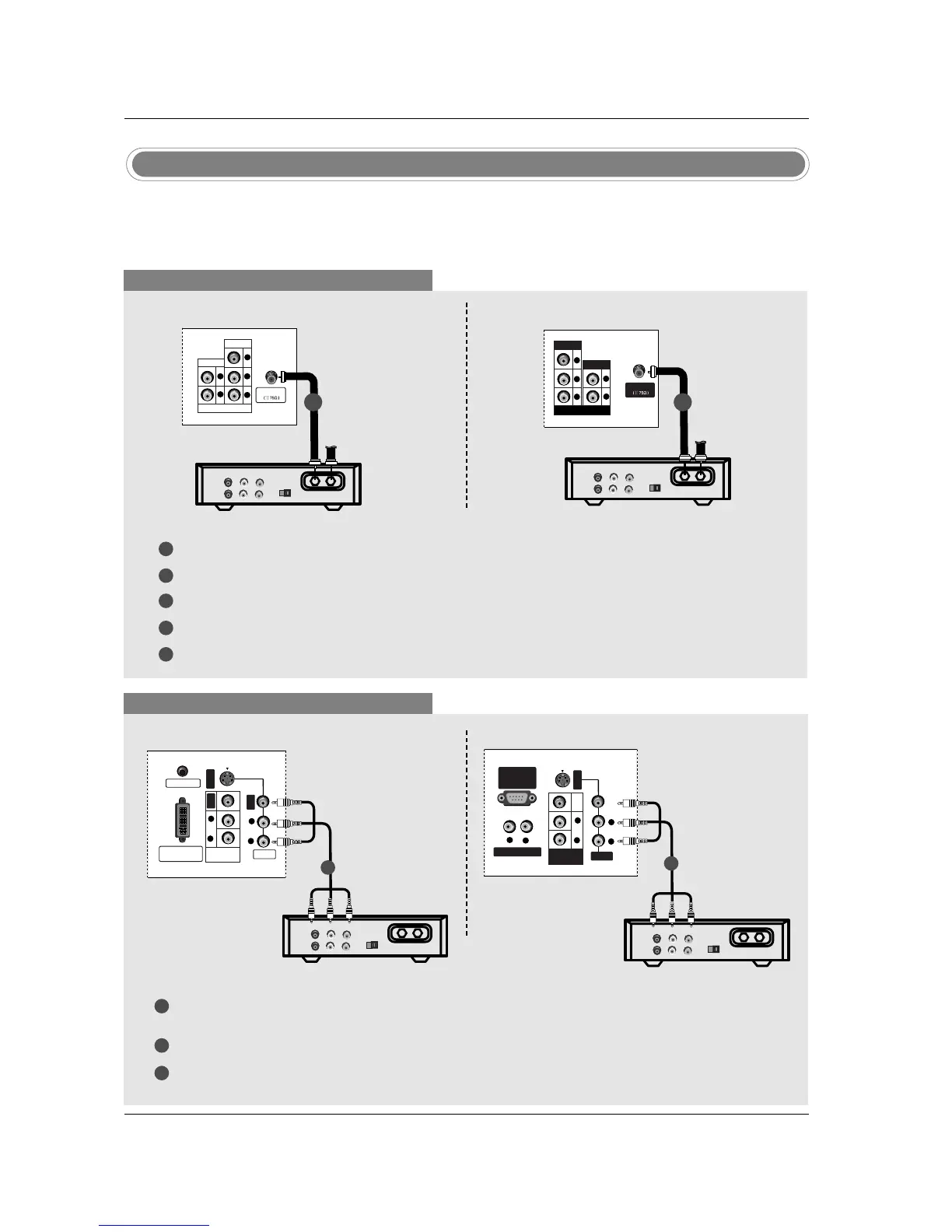

Cable TV Setup
When connecting with an antenna
1
2
3
4
5
When connecting with a RCA cable
Antenna
PR
PB
Y
R
L
VIDEO
COMPONENT 1
AUDIO
TV
VCR
RF Cable
(R) AUDIO (L)
VIDEO
34
OUTPUT
SWITCH
1
2
1/2
3
Connect the AUDIO/VIDEO jacks between TV and Cable box. Match the jack colors (Video = yellow,
Audio Left = white, and Audio Right = red)
Select Video input source with using the INPUT button on the remote control.
Select your desired channel with the remote control for the cable box.
TV
VCR
RF Cable
(R) AUDIO (L)
VIDEO
34
OUTPUT
SWITCH
R
PR PB Y
L
VIDEO
COMPONENT 1
AUDIO
Antenna
TV Back panel (32inch)
TV Back panel (26inch)
Cable Box
Cable Box
Connect the RF antenna socket of the cable box to the Antenna socket on the set.
Connect the antenna cable to the RF antenna socket of the cable box.
Select 3 or 4 with channel switch on the cable box.
Tune the TV channel to the same selected output channel on the cable box.
Select channels at the cable box or with the cable box remote control.
1/2
PC SOUND
DVI INPUT
(PC/DTV INPUT)
S-VIDEO
VIDEO
AUDIO
R
L
VIDEO
VIDEO
AUDIO
R
L
MONITOR
OUT
TV
VCR
RF Cable
(R) AUDIO (L)
VIDEO
34
OUTPUT
SWITCH
Cable Box
VIDEO
VARIABLE AUDIO OUT
RS-232C INPUT
(CONTROL
/SERVICE PORT)
S-VIDEO
AUDIO
VIDEO
VIDEO
R
R
L
AUDIO
R
L
L
MONITOR
OUT
TV
VCR
RF Cable
(R) AUDIO (L)
VIDEO
34
OUTPUT
SWITCH
Cable Box
1
1
TV Back panel (32inch) TV Back panel (26inch)
