LG 26LX2R - When Connecting with a Hdmi Cable

22
Installation
- To watch digitally broadcast programs, purchase and connect a digital set-top box.
STB Setup

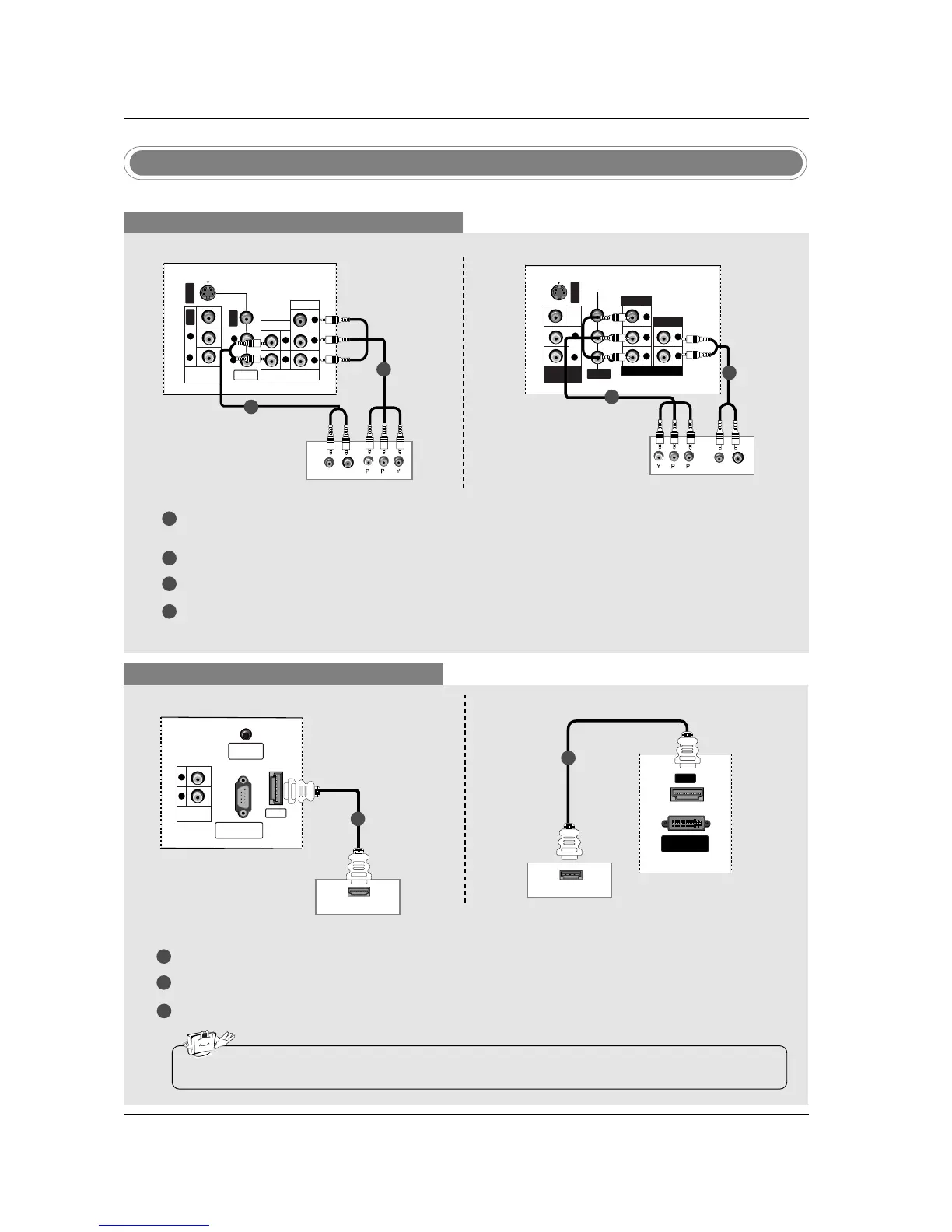

When connecting with a component cable
1
2
3
4
Connect the video outputs (Y, P
B, PR) of the digital set-top box to the COMPONENT1 VIDEO (Y, PB, PR)
jacks on the set.
Connect the audio outputs of the digital set-top box to the COMPONENT1 AUDIO jacks on the set.
Turn on the digital set-top box. (Refer to the owner’s manual for the digital set-top box.)
Select Component 1 input source with using the INPUT button on the remote control.
- If connected to COMPONENT2 input, select Component 2 input source.
S-VIDEO
PR
PB
Y
R
L
VIDEO
COMPONENT 1
AUDIO
VIDEO
AUDIO
R
L
VIDEO
AUDIO
R
L
MONITOR
OUT
B
R
(R) AUDIO (L)
VIDEO
Digital Set-top Box
TV Back panel (32inch)
1
2
S-VIDEO
AUDIO
VIDEO
R
L
R
PR PB Y
L
VIDEO
COMPONENT 1
AUDIO
VIDEO
AUDIO
R
L
MONITOR
OUT
B
R
(L)AUDIO(R)
VIDEO
Digital Set-top Box
TV Back panel (26inch)
1
2
RS-232C INPUT
(CONTROL/SERVICE)
REMOTE
CONTROL
VARIABLE
AUDIO OUT
R
L
HDMI-DTV OUTPUT
HDMI
When connecting with a HDMI cable
1
1
2
3
Connect the HDMI output of the digital set-top box to the HDMI jack on the set.
Turn on the digital set-top box. (Refer to the owner’s manual for the digital set-top box.)
Select HDMI DTV input source with using the INPUT button on the remote control.
Digital Set-top Box
HDMI
DVI INPUT
(PC/DTV INPUT)
HDMI-DTV OUTPUT
Digital Set-top Box
• TV can receive the video and audio signal simultaneously with using a HDMI cable.
TV Back panel (32inch)
TV Back panel (26inch)
1
