LG 32LC7D-UB - HDMI to DVI Cable Connection

EXTERNAL EQUIPMENT SETUP
20
EXTERNAL EQUIPMENT SETUP
REMOTE
CONTROL IN
RS-232C IN
(CONTROL & SERVICE)
RGB IN
(PC)
AUDIO IN
(RGB/DVI)
DIGITAL AUDIO
OUT
OPTICAL
SERVICE
COMPONENT IN
AV OUT
AV IN 1
VIDEO AUDIO
MONO
( )
S-VIDEO
ANTENNA/
CABLE IN
HDMI IN
HDMI/DVI IN
1
2
L R
DVI-DTV OUTPUT
VIDEO AUDIO

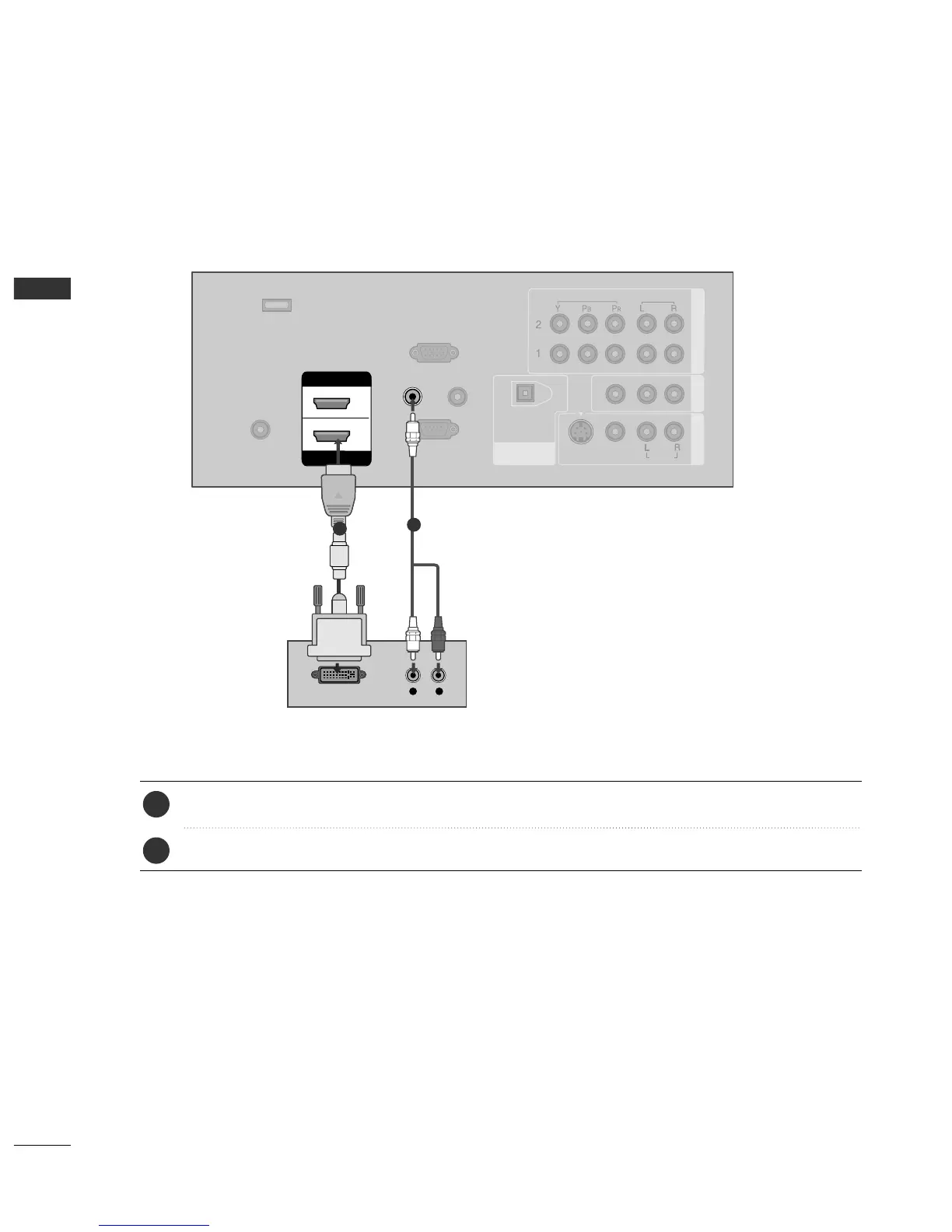

Connect the DVI output of the digital set-top box to the
HHDDMMII//DDVVII IINN 11
jack on the set.
Connect the audio output of the digital set-top box to the
AAUUDDIIOO IINN
((
RRGGBB//DDVVII
))
jack on the set.
1. How to connect
■
Turn on the digital set-top box.
(
Refer to the owner’s manual for the digital set-top box.
)
■
Select
HHDDMMII11//DDVVII
input source by using the
IINNPPUUTT
button on the remote control.
2. How to use
2
1
1
2
When connecting HDMI to DVI cable
