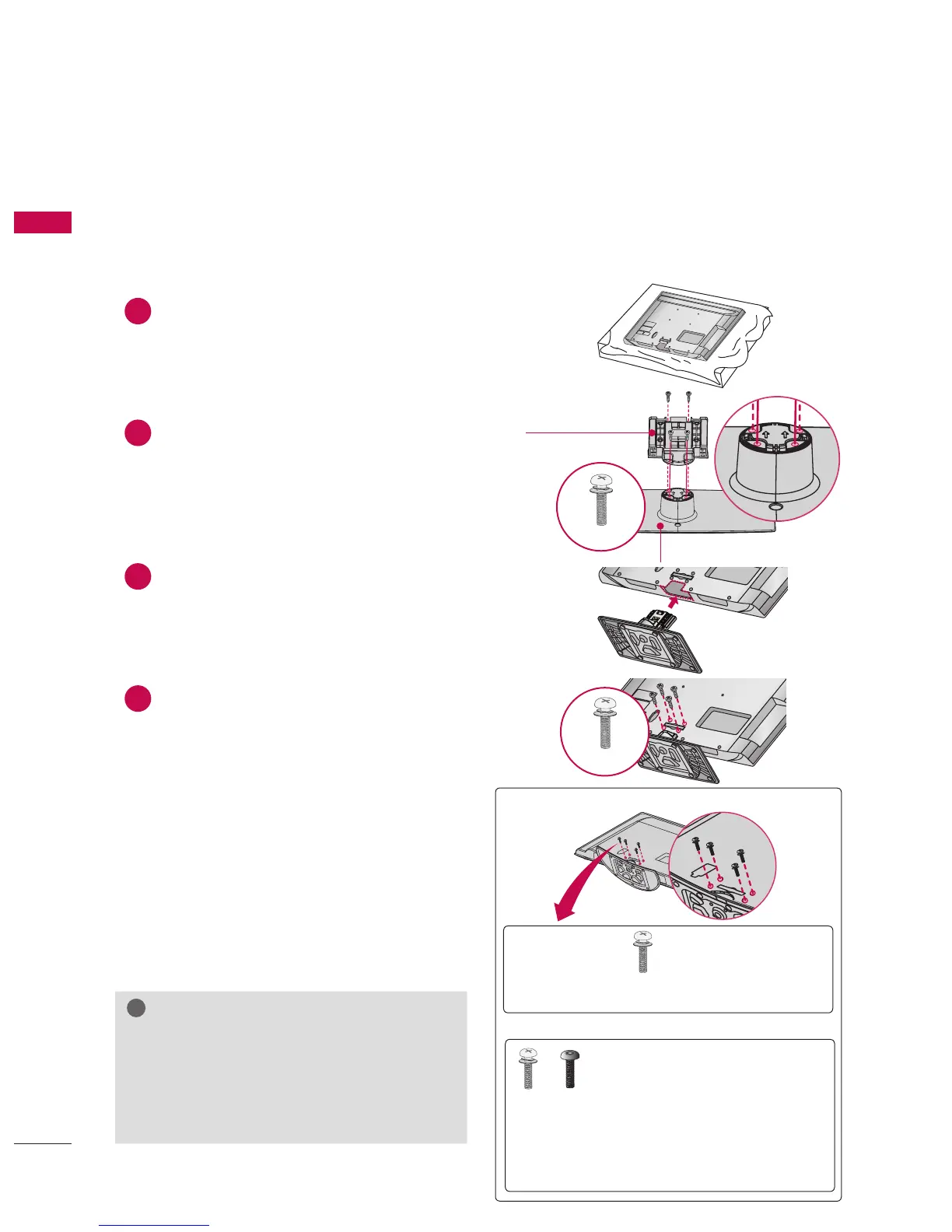

STAND INSTRUCTIONS
(For
32/42/47LD420, 32/42/47/55LD520, 55LD520C)
Image shown may differ from your TV.
1
Carefully place the TV screen side down on
a cushioned surface to protect the screen
from damage.
3
Assemble the TV as shown.
INSTALLATION
NOTE
► When assembling the desk type stand,
make sure the screws are fully tightened (If
not tightened fully, the TV can tilt forward
after the product installation). Do not over
tighten.
4
Install the 4 screws into the holes shown.
M4 x 24
Tighten the stand with the four screws
(provided as parts of the TV).
x 4
or
Tighten the two of these four
screws and the two Torx plus
star head screws (provided as
parts of the TV) to secure the TV. Tighten
the two Torx plus star head screws with a
star head driver bit (not provided as parts
of the TV).
x 2
x 2
For 55LD520C
2
(For 55LD520C, 55LD520)
Assemble the parts of the STAND BODY
with the STAND BASE of the TV.
To Next Page
