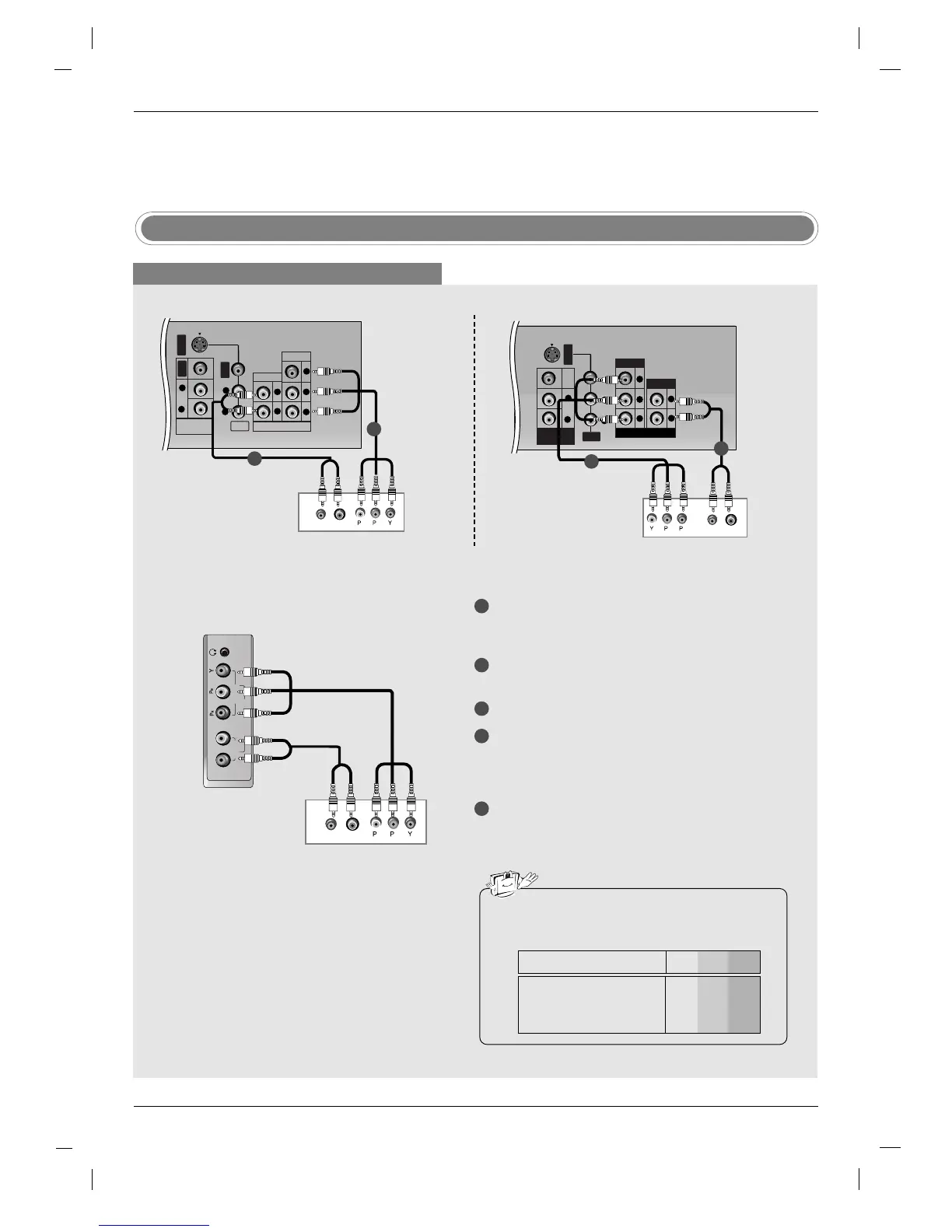

DVD Setup
When connecting with a component cable
S-VIDEO
PR
PB
Y
R
L
VIDEO
COMPONENT 1
AUDIO
VIDEO
AUDIO
R
L
AV
VIDEO
AUDIO
R
L
MONITOR
OUT
B
R
(R) AUDIO (L)
DVD
TV Back panel (32inch)
R
L
COMPONENT2
AUDIO
VIDEO
B
R
(R) AUDIO (L)
DVD
1
1
2
2
AV
S-VIDEO
AUDIO
VIDEO
R
L
R
PR PB Y
L
VIDEO
COMPONENT 1
AUDIO
VIDEO
AUDIO
R
L
MONITOR
OUT
B
R
(L)AUDIO(R)
DVD
TV Back panel (26inch)
1
2
3
4
5
Connect the video outputs (Y, P
B, PR
) of the DVD
to the COMPONENT VIDEO (Y, P
B, PR) jacks on
the set.
Connect the audio outputs of the DVD to the COM-
PONENT AUDIO jacks on the set.
Turn on the DVD player, insert a DVD.
Select
Component 1 input source with using the
INPUT button on the remote control.
- If connected to Component 2, select
Component 2
input source.
Refer to the DVD player's manual for operating
instructions.
• Component Input ports
To get better picture quality, connect a DVD player
to the component input ports as shown below.
Y P
B
PR
Component ports on the TV
Y
Y
Y
Y
Pb
B-Y
Cb
PB
Pr
R-Y
Cr
PR
Video output ports
on DVD player
TV side panel (32, 26inch)
