LG 32LX2R Series - External AV Source Setup

19
S-VIDEO
VIDEO
AUDIO
R
L
AV
VIDEO
AUDIO
R
L
MONITOR
OUT
RL
AUDIO VIDEO
S-VIDEO
Camcorder
Video Game Set
1
1
2
3
Connect the AUDIO/VIDEO jacks between TV and external equipment. Match the jack colours (Video = yellow,
Audio Left = white, and Audio Right = red).
Select
AV input source with using the INPUT button on the remote control.
Operate the corresponding external equipment. Refer to external equipment operating guide.

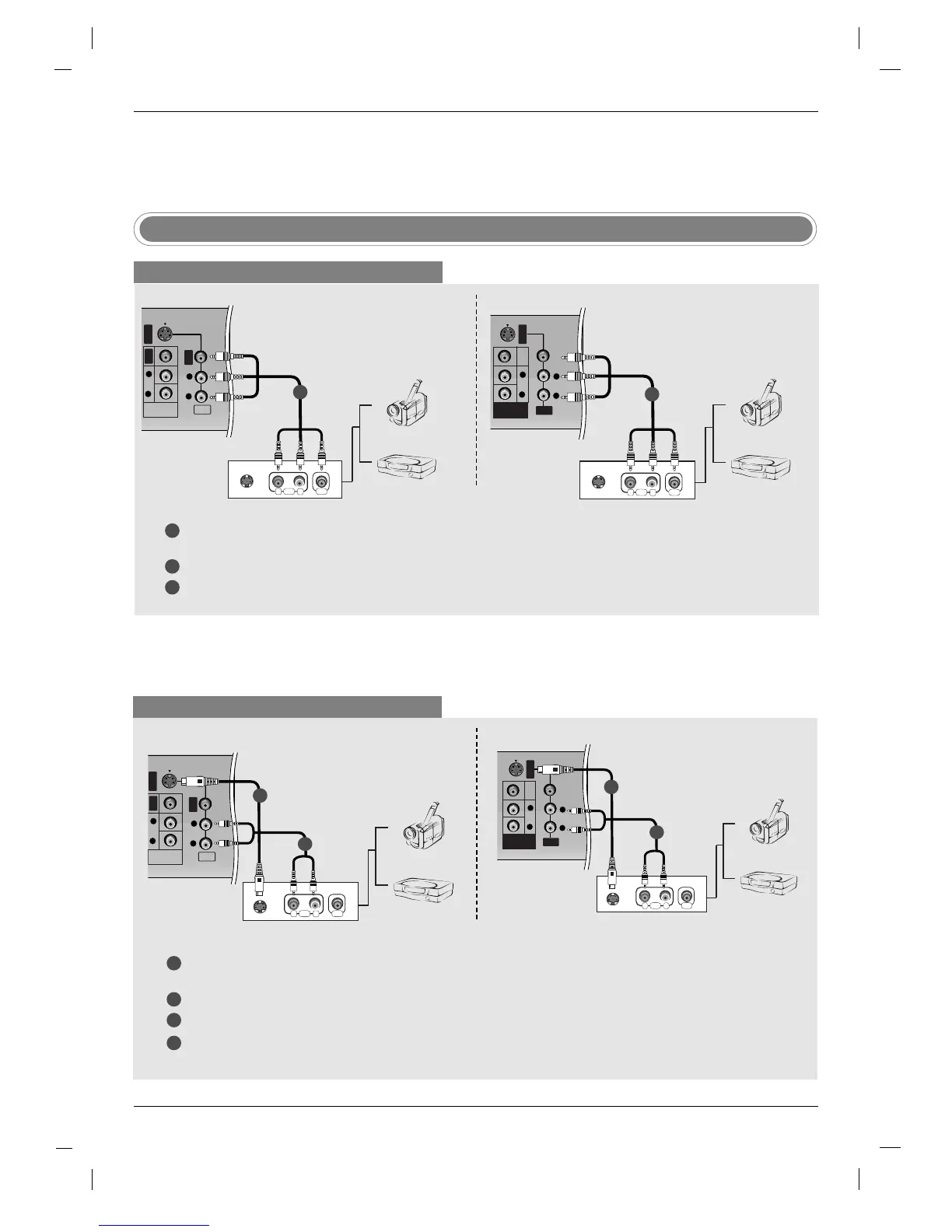

External AV Source Setup
When connecting with a RCA cable
RL
AUDIO VIDEO
S-VIDEO
AV
S-VIDEO
AUDIO
VIDEO
R
L
VIDEO
AUDIO
R
L
MONITOR
OUT
Camcorder
Video Game Set
1
When connecting with an S-Video cable
S-VIDEO
VIDEO
AUDIO
R
L
AV
VIDEO
AUDIO
R
L
MONITOR
OUT
RL
AUDIO VIDEO
S-VIDEO
1
1
2
2
3
4
Connect the S-VIDEO output of the external equipment to the S-VIDEO input on the set. The picture quality is
improved.
Connect the AUDIO jacks between TV and external equipment.
Select
S-Video input source with using the INPUT button on the remote control.
Operate the corresponding external equipment. Refer to external equipment operating guide.
AV
S-VIDEO
AUDIO
VIDEO
R
L
VIDEO
AUDIO
R
L
MONITOR
OUT
RL
AUDIO VIDEO
S-VIDEO
1
2
Camcorder
Video Game Set
Camcorder
Video Game Set
TV Back panel (32inch)
TV Back panel (26inch)
TV Back panel (32inch)
TV Back panel (26inch)
