8

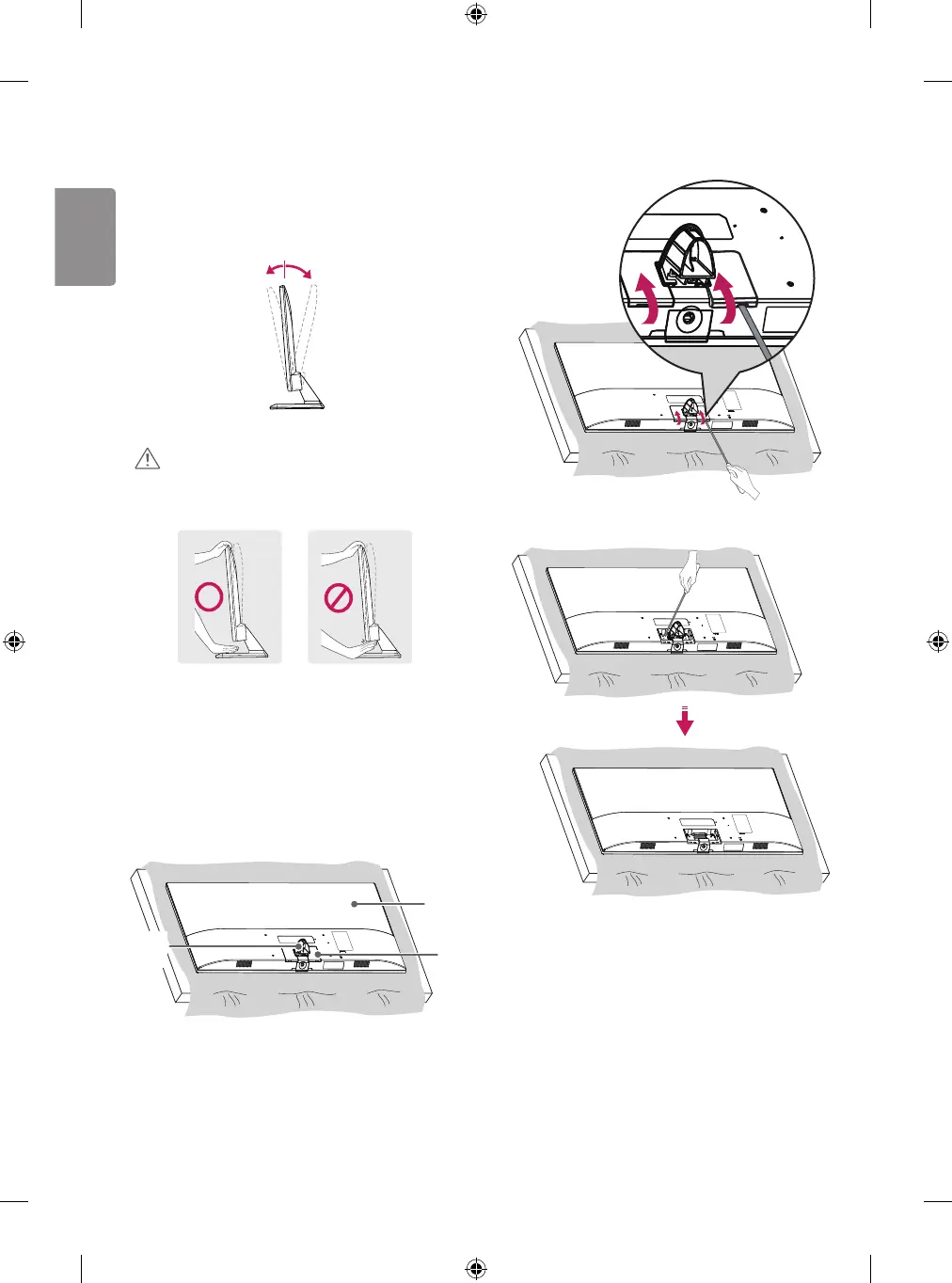

Adjusting the angle of the monitor to
suit view
• Image shown may differ from your monitor.
Tilt from -5° to 10° degrees up or down to adjust the angle of the
monitor to suit your view.
Front
Rear
CAUTION
• When you adjust the angle, do not hold the buttom of the monitor
frame as shown on the following illustration, as may injure your
fingers.
Installing the wall mounting bracket
support
As shown below, detach the stand bracket before installing the wall
mounting bracket support.
1 Lay the monitor down on a at surface with the panel facing
down. Before that, lay down a soft cloth or a cushion rst so as to
prevent damage to the panel.
Cover
Back
Stand
bracket
2 As shown in the gure, use a at tool to remove the cover.
Example: Slot (-) type screwdriver
3 Remove the screws and detach the stand bracket.
To Next Page
