ENG
ENGLISH
24
MAKING CONNECTIONS
AUDIO
VIDEO
L
R
P
C
-AUDI
O
I
N
L/MONO
AU
DI
O
R
VIDE
O
/
Y
P
P
B
B
P
P
R
R
COMPONENT IN
/AV IN

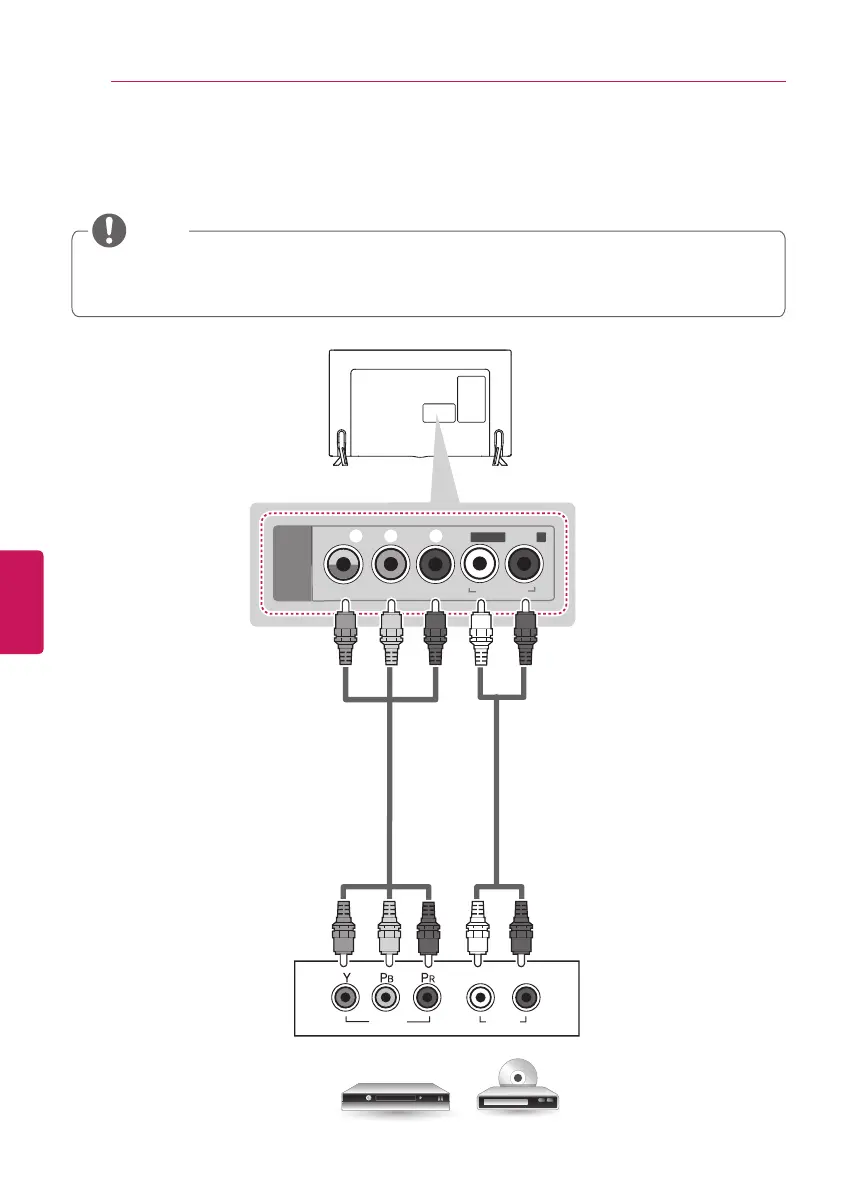

Component Connection
Transmits analog video and audio signals from an external device to the TV. Connect the external
device and the TV with a component cable as shown in the following illustration.
y
If cables are installed incorrectly, it could cause the image to display in black and white or with
distorted color.
y
Check to ensure the cables are matched with the corresponding color connection.
NOTE
(*Not Provided)
(*Not Provided)
DVD / Blu-Ray / HD Cable Box
GREEN
GREEN
BLUE
BLUE
RED
RED
RED
RED
WHITE
WHITE
