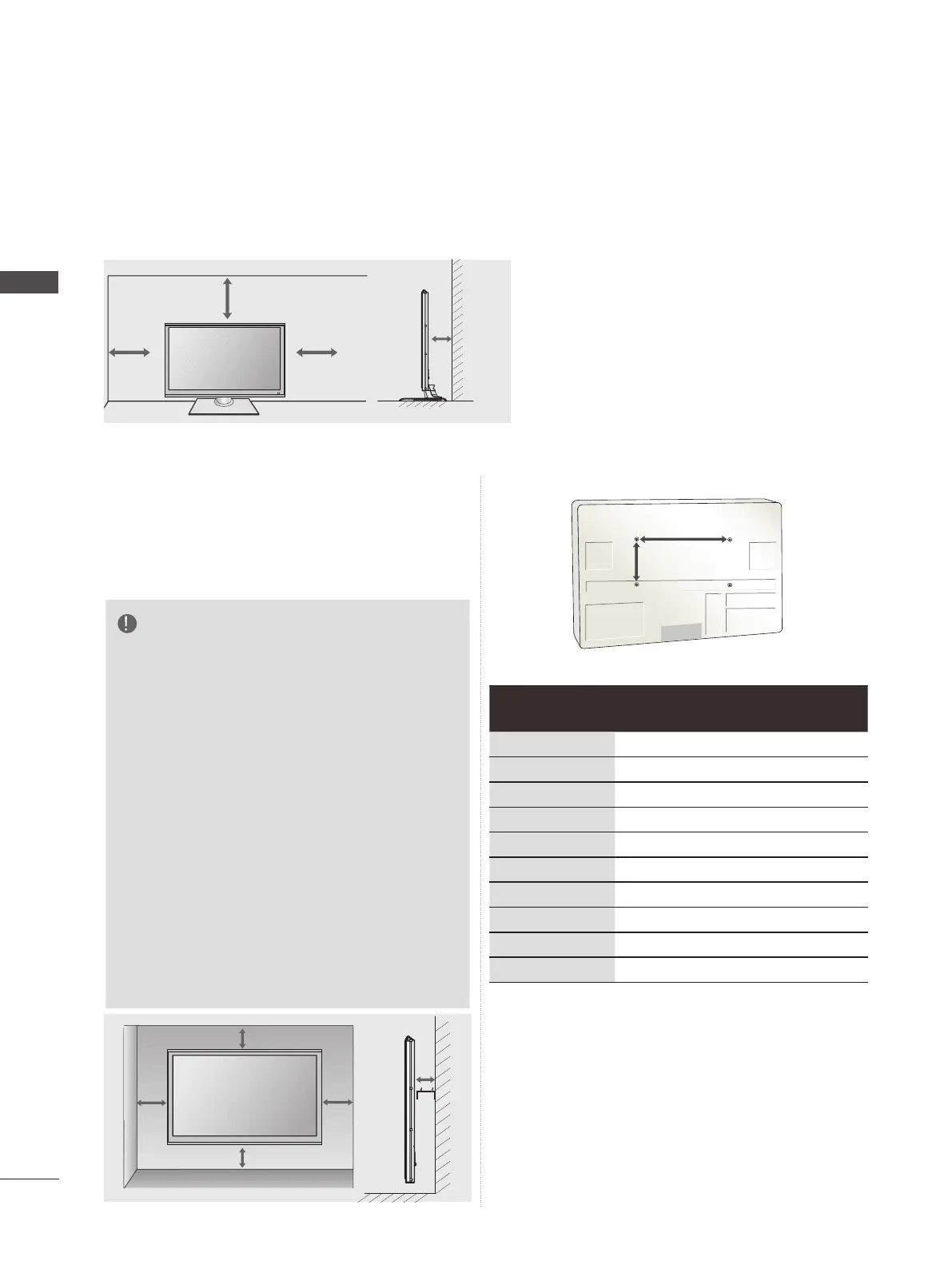

■ The TV can be installed in various ways such as on a wall, or on a desktop etc.
■ The TV is designed to be mounted horizontally.
WALL MOUNT : HORIZONTAL INSTALLATION
4 inches
4 inches
4 inches
4 inches
4 inches
4 inches
4 inches
4 inches
4 inches
Model
VESA
(A
*
B)
Standard
Screw
Quantity
42PJ2*** 400
*
400 M6 4
50PJ2*** 400
*
400 M6 4
42PJ3*** 400
*
400 M6 4
50PJ3*** 400
*
400 M6 4
42PJ5*** 400
*
400 M6 4
50PJ5*** 400
*
400 M6 4
42PJ6*** 400
*
400 M6 4
50PJ6*** 400
*
400 M6 4
50PK5*** 400
*
400 M6 4
60PK5*** 200
*
100 M4 4
■ We recommend the use of a LG Brand wall mount-
ing bracket when mounting the TV to a wall.
■ We recommend that you purchase a wall mount-
ing bracket which supports VESA standard.
■ LG recommends that wall mounting be per-
formed by a qualified professional installer.
NOTE
► Should Install wall mount on a solid wall perpendicu-
lar to the floor.
► Should use a special wall mount, if you want to
install it to ceiling or slanted wall.
► The surface that wall mount is to be mounted on
should be of sufficient strength to support the weight
of TV set; e.g. concrete, natural rock, brick and hol-
low block.
► Installing screw type and length depends on the wall
mount used. Further i nformation, refer to the
instructions included with the mount.
► LG is not liable for any accidents or damage to prop-
erty or TV due to incorrect installation:
- Where a non-compliant VESA wall mount
is used.
-
I
Incorrect fastening of screws to surface
which may cause TV to fall and cause
personal injury
- Not following the recommended Installation
method.
AA
BB
DESKTOP PEDESTAL
INSTALLATION
For adequate ventilation allow a clearande of 4" (10Cm) all around the TV.
