TSP500-M LVDS connection
1

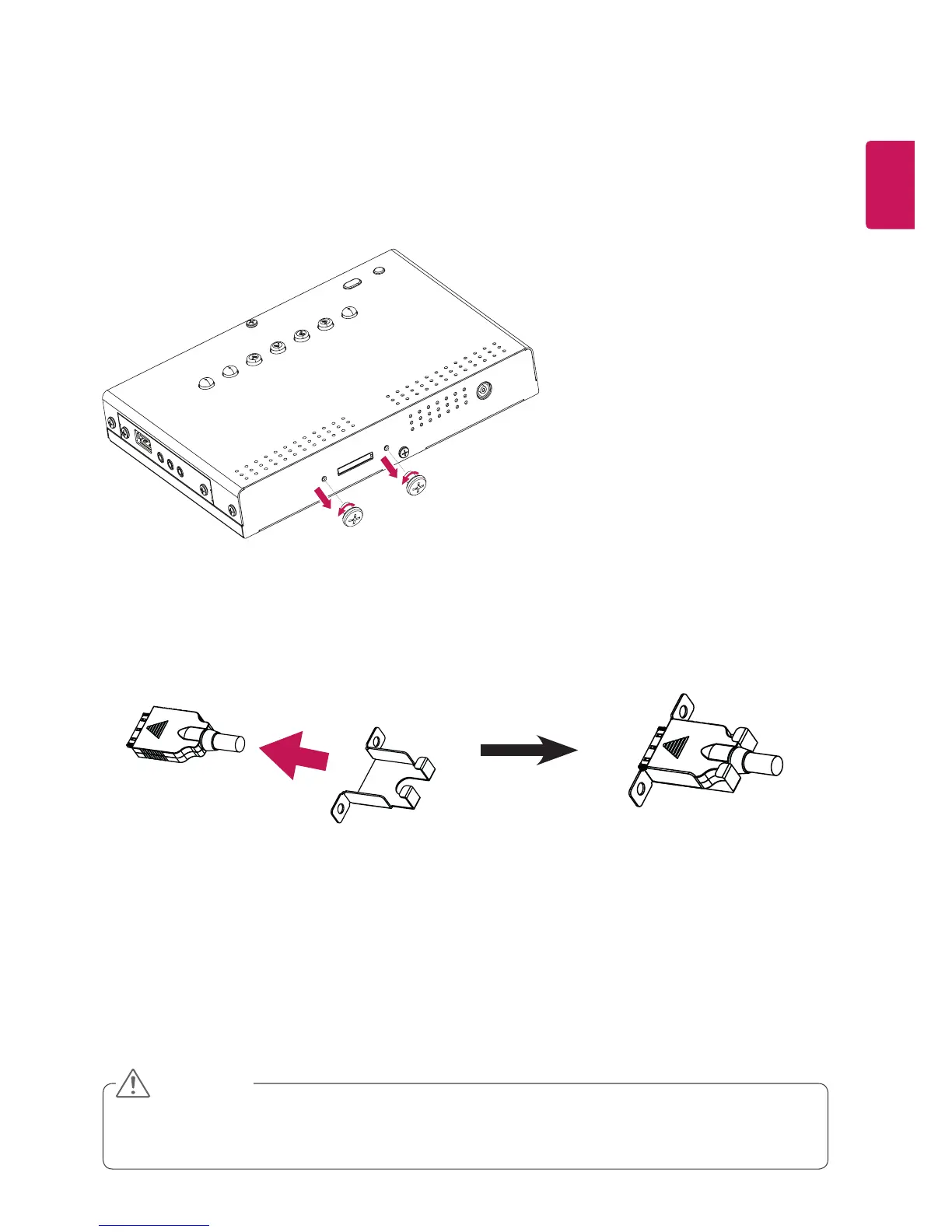

Unscrew two screws to assemble LVDS cable and holder. Don’t throw away the screws.
2
Put a LVDS cable in a holder. Cable head has to be properly oriented.

To prevent the LVDS cable from being separated, you must use a LVDS holder.

Check the direction of the LVDS cable to prevent damage to the LVDS cable.
CAUTION
