LG AMNH12GD4L0 - Dimensions; Indoor Unit Dimensions

- 12 -
Copyright ©2007 LG Electronics. Inc. All right reserved.
Only for training and service purposes
LGE Internal Use Only
Dimensions
Dimensions
Indoor Unit

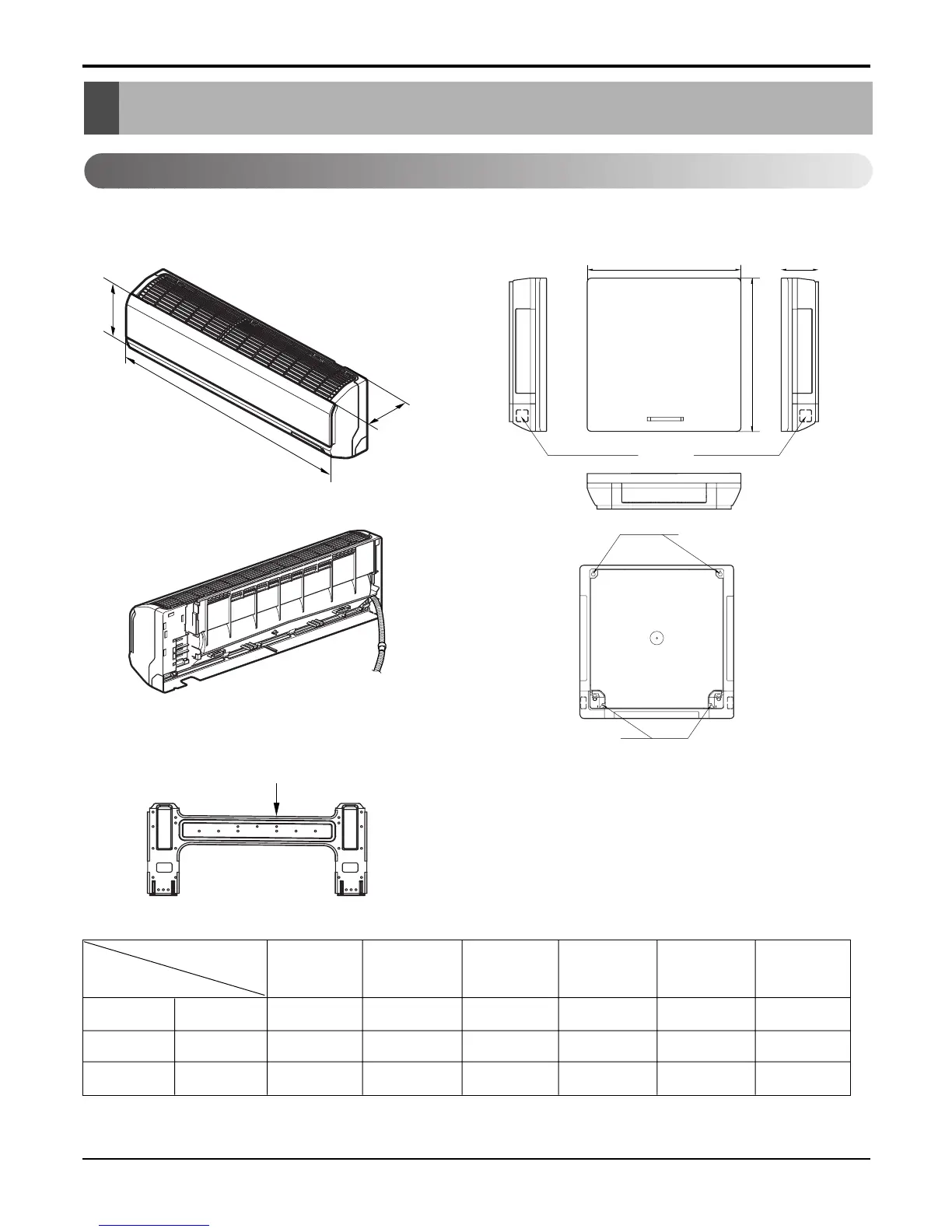

1. Split Type Indoor 2. Art Cool Type Indoor Unit
Pipe Hole
Fix Hole
Hanger Hole
H
W
D
Installation plate
D
H
W
W mm 824 900 1080 840 1090 570
H mm 260 285 314 270 300 568
D mm 155 156 172 153 178 137
Model
Dimension
SQ
7k, 9k
SR
9k, 12k
ST
18k, 24k
S4
7k, 9k, 12k
S5
18k, 24k
SP
9k, 12k
