LG AMNH12GD4L0 - Components Locations

- 160 -
Copyright ©2007 LG Electronics. Inc. All right reserved.
Only for training and service purposes
LGE Internal Use Only
Schematic Diagram
1. Indoor Unit
MAIN P.C.B ASM
1) Split Type

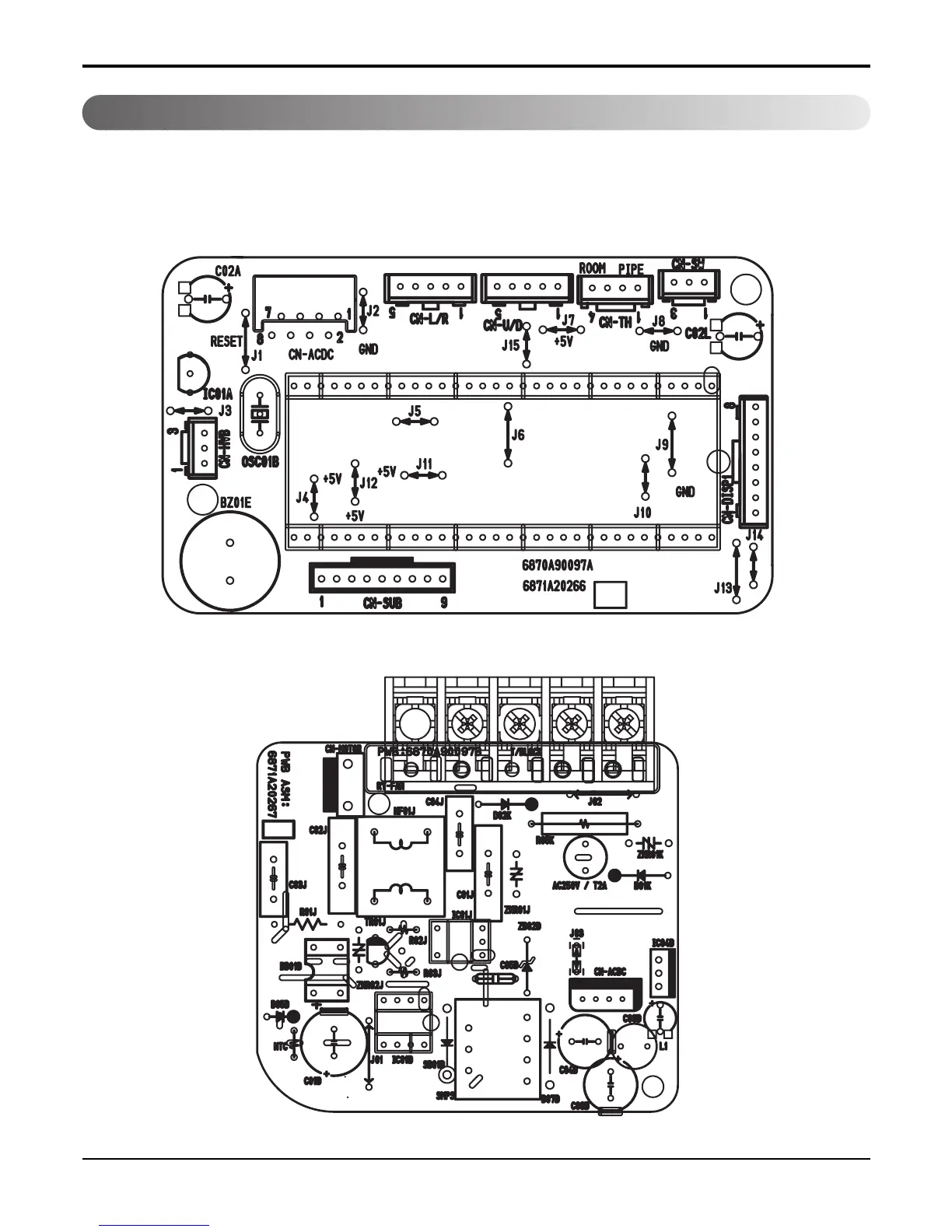

Components Locations
• DC part
• AC part
