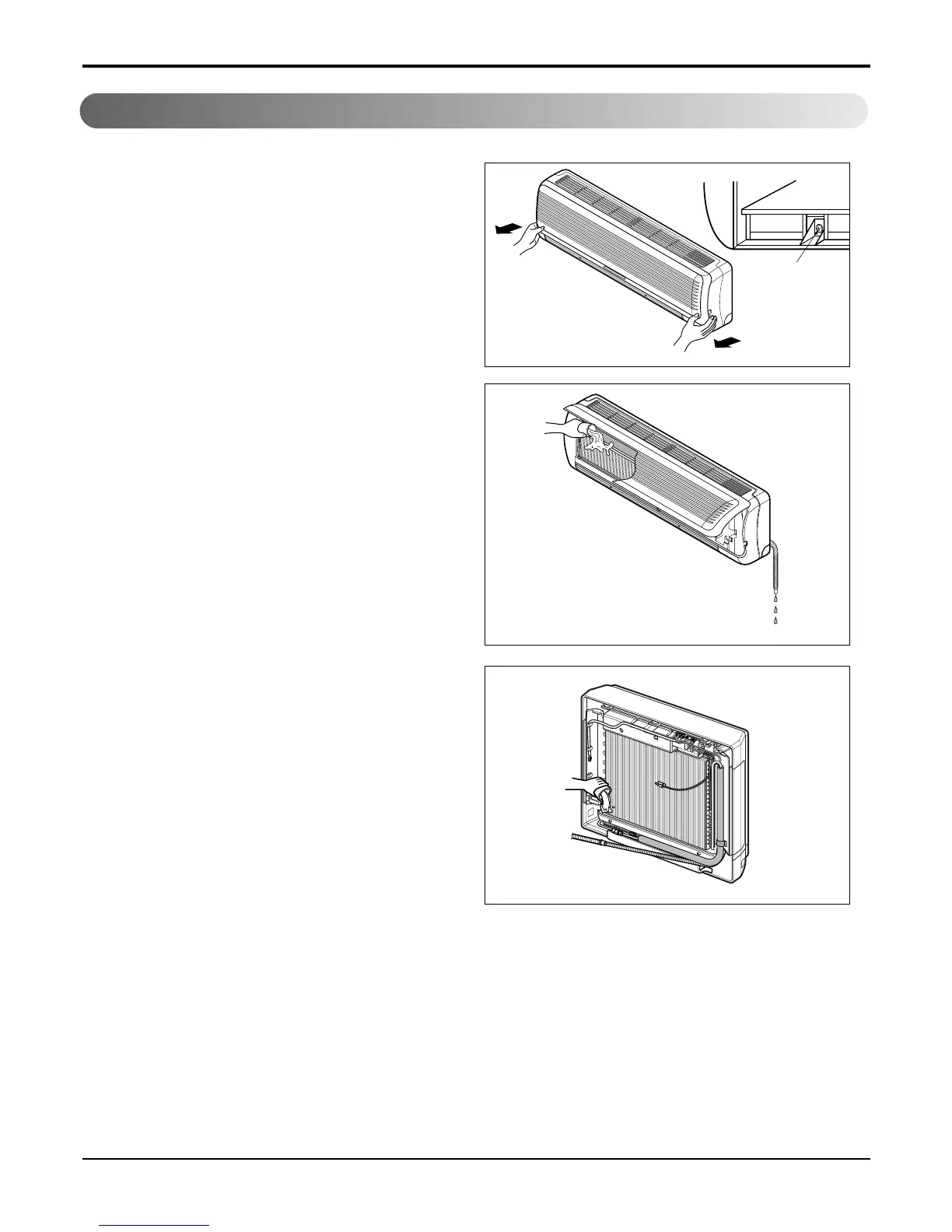

Checking the Drainage and Pipe forming

Pull the right and

the left side.

Screw

1. Split Type Indoor Unit

1) Remove the Grille from the cabinet

• Set the up-and-down air direction louver to

open position(horizontally) by finger pressure.

• Remove the securing screws.

• To remove the Grille, pull lower the left and

right side of the grille toward you (slightly tilted)

and lift it straight upward.

2) Check the drainage

• Pour a glass of water on the evaporator.

• Ensure if water flows drain hose of indoor unit

without any leakage.

2. Art Cool Type Indoor Unit

• Pour a glass of water on the evaporator.

• Ensure the water flows through the drain hose of

the indoor unit without any leakage and goes out

the drain exit.
