Installation
Installation
Read completely, then follow step by step.

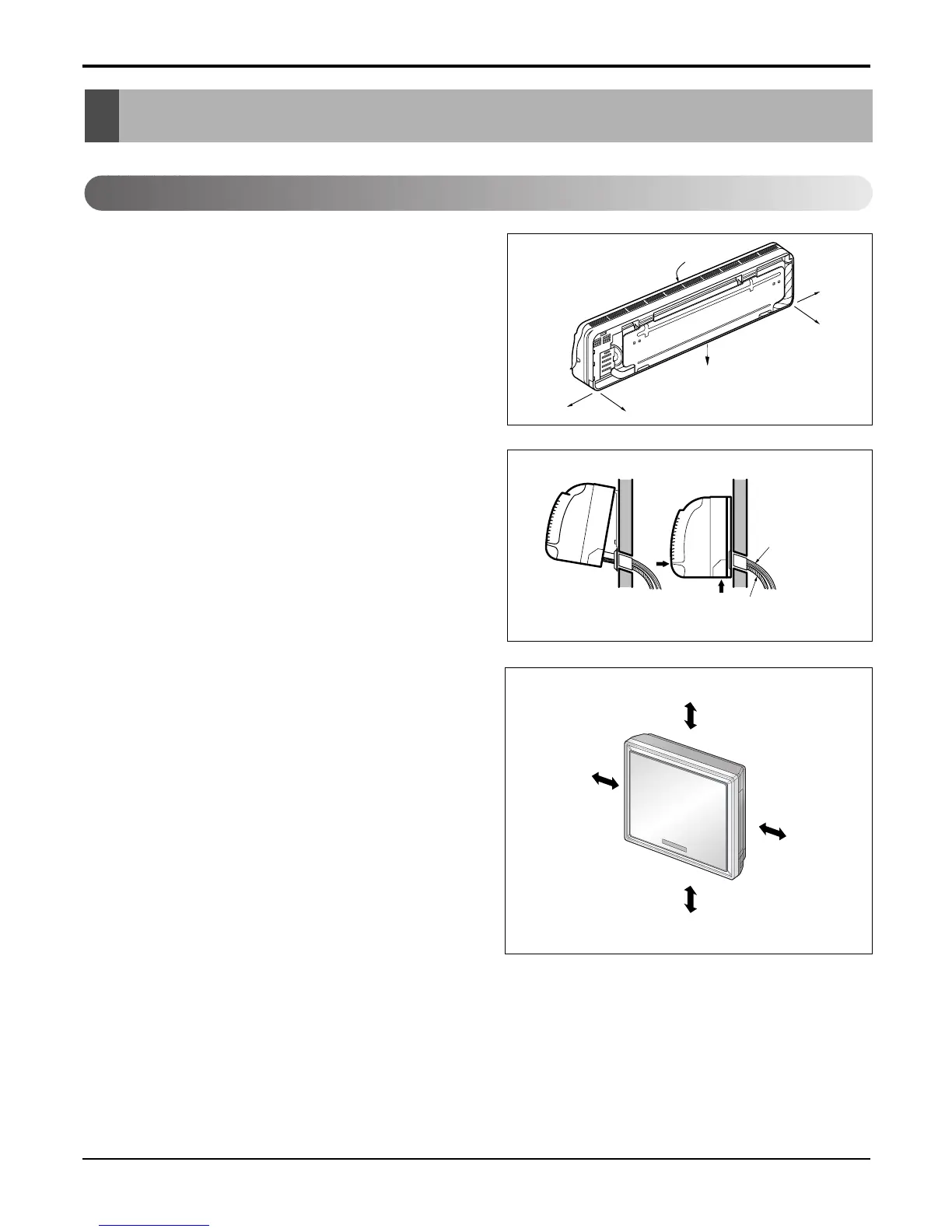

Select the best location of indoor unit
Connecting
cable
Drain hose
More than 10cm
More than 50cm
More than 2m
More than 50cm
1. Split Type Indoor Unit
• There should not be any heat source or steam near the
unit.
• There should not be any obstacles to prevent the air
circulation.
• A place where air circulation in the room will be good.
• A place where drainage can be easily obtained.
• A place where noise prevention is taken into considera-
tion.
• Do not install the unit near the door way.
• Ensure the spaces indicated by arrows from the wall,
ceiling, fence, or other obstacles.
2. Art Cool Type Indoor Unit
• Do not have any heat or steam near the unit.
• Select a place where there are no obstacles in front
of the unit.
• Make sure that condensation drainage can be conve-
niently routed away.
Do not install near a doorway.
• Ensure that the space around the left and right of the
unit is more than 50cm. The unit should be installed
as high on the wall as possible, allowing a minimum
of 10cm from ceiling.
• Use a stud finder to locate studs to prevent unneces-
sary damage to the wall.
