Disassembly of the parts

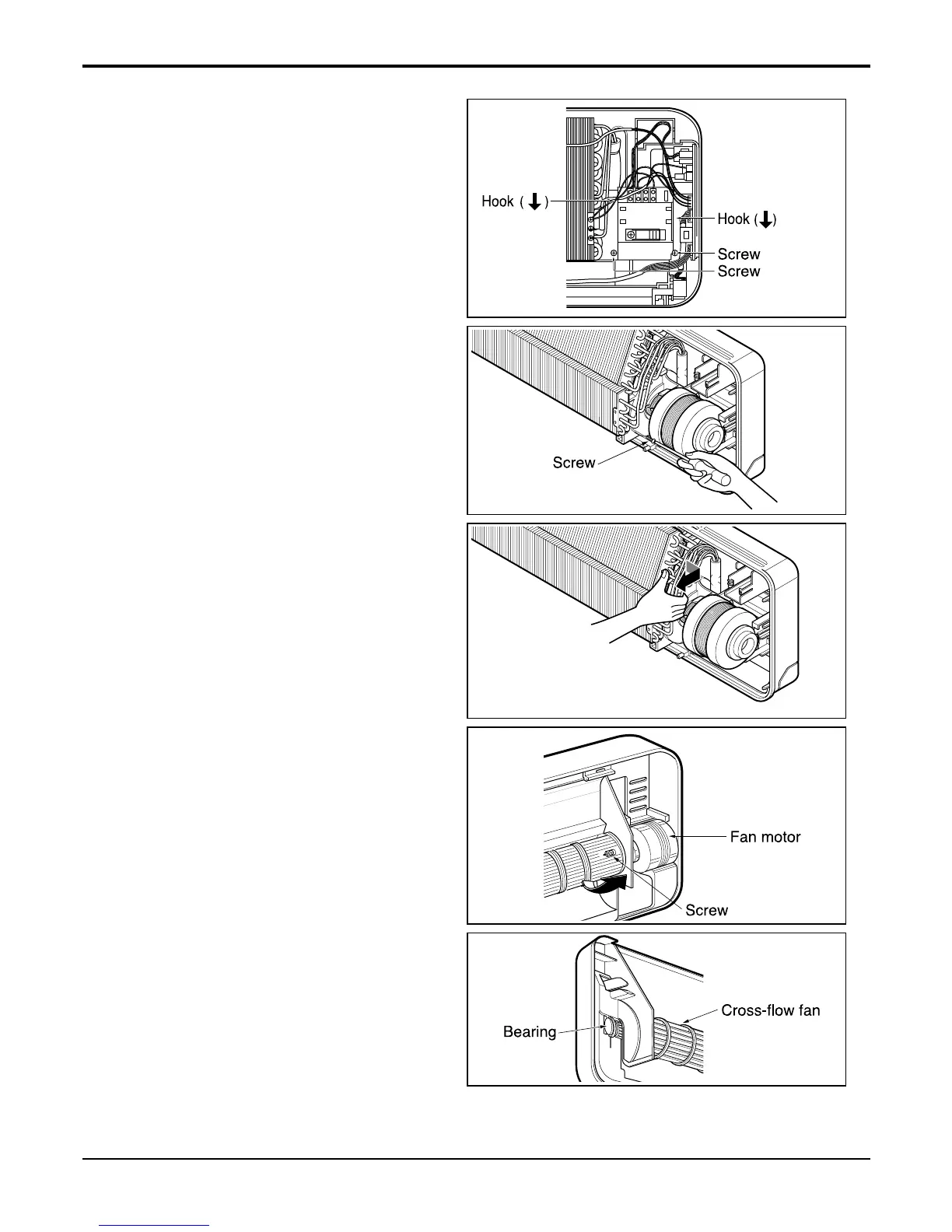

2) To remove the Control Box.

• Remove securing screws.

• Pull the control box out from the chassis care-

fully.

3) To remove the Discharge Grille.

• Pull the discharge grille out from the chassis

carefully.

4) To remove the Evaporator.

• Remove screws securing the evaporator and

the holder eva.

• Unhook the tab on the right inside of the chas-

sis at the same time, slightly pull the evapora-

tor toward you until the tab is clear of the slot.

5) To remove the Cross-Flow Fan

• Loosen the screw securing the cross-flow fan

to the fan motor (do not remove).

• Lift up the right side of the cross-flow fan and

the fan motor, separate the fan motor from the

cross-flow fan.

• Remove the left end of the cross-flow fan from

the self-aligning bearing.
