- 130 -

Only for training and service purposes

LGE Internal Use Only

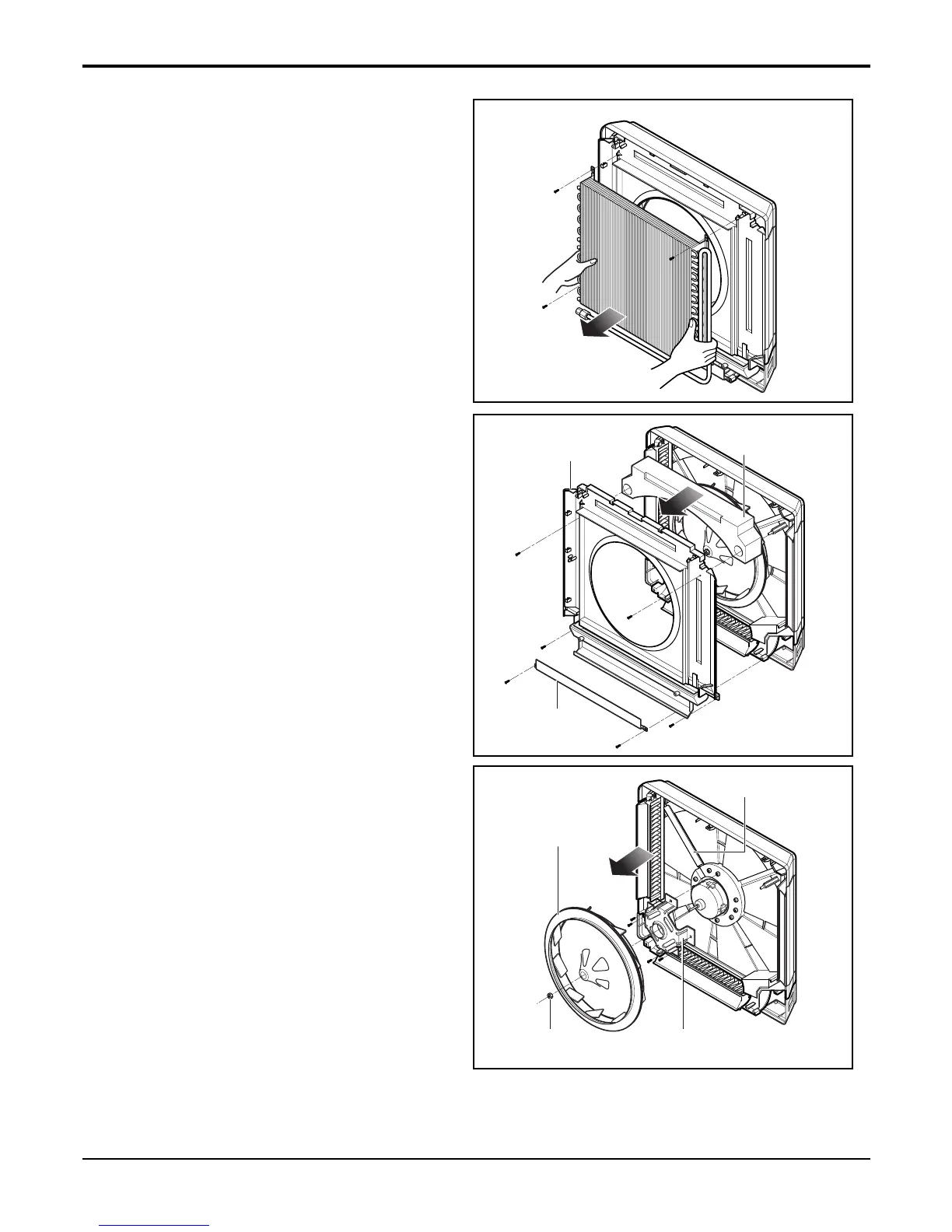

Disassembly of the parts

3) To remove the Evaporator.

- Remove 4 screws securing the evaporator.

- Pull the evaporator out from the chassis carefully.

4) Before removing the Turbo Fan.

- Remove the securing screws from the chassis.

- Pull the pipe cover, top cover and the air guide.

5) To remove the Motor.

- Remove the securing bolt from the motor shaft.

- Pull the fan out from the motor shaft.

- Remove 4 screws securing motor mount from the

chassis and lift up the motor mount and the brack-

et.

Top Cover

Pipe Cover

Air Guide

Turbo Fan

Bracket

Bolt Motor Mount
