Troubleshooting Guide

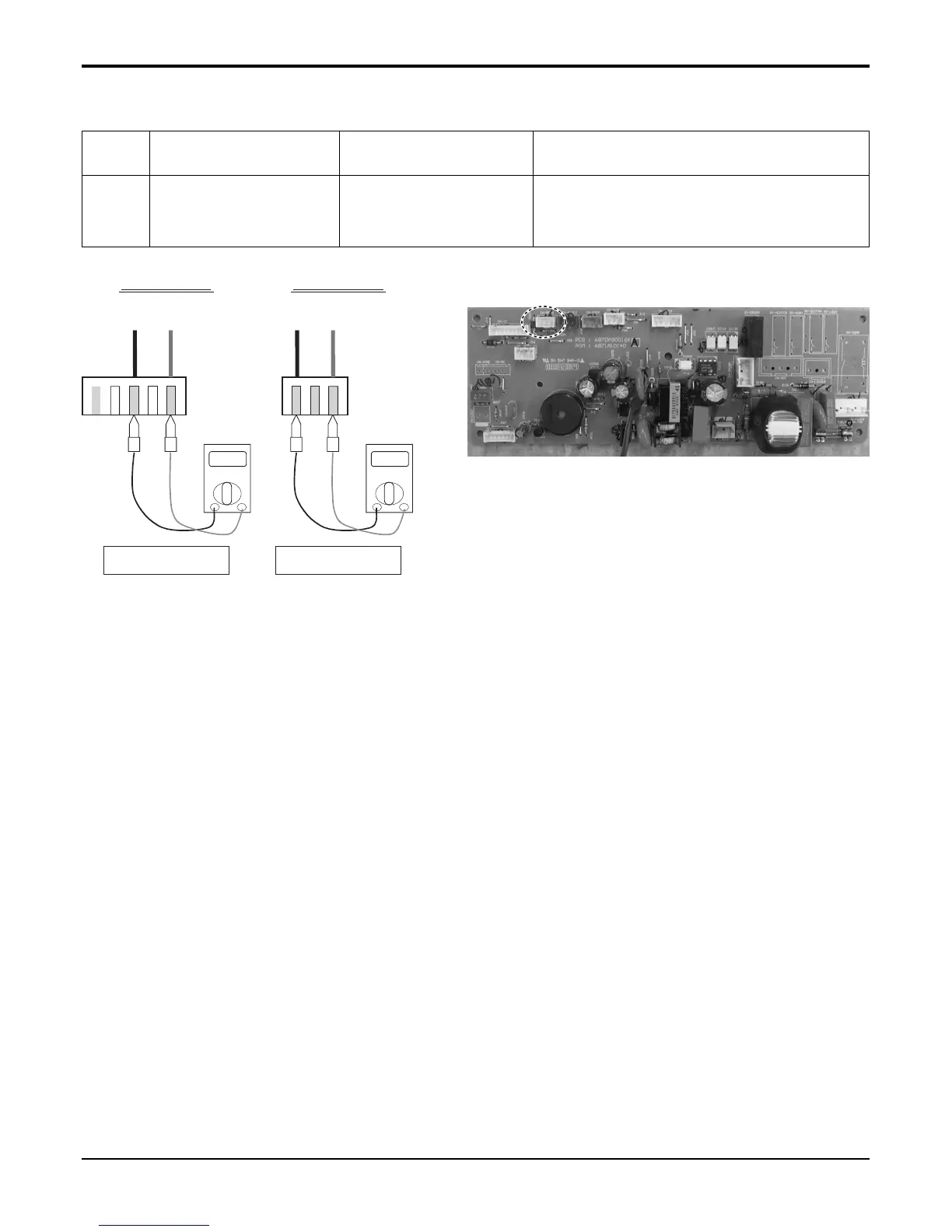

2) Troubleshooting CH03

Check the Volt.

Indoor Unit

12Vdc

12V S GND

Check the Volt.

Wired R/C

12Vdc

12V S GND

CN-REMO

Communication

Wired R/C

• Open / Short

• Wrong connection

• Connection of wire

• Main PCB Volt. DC12V

• Noise interference

Display

code

Title Cause of error Check point & Normal condition

Check Point

1. Check the wire connection. (Open / Short) → Repair the connection

2. Check the soldering state of connector. (Soldered poorly) → Repair or Change the PCB.

3. Check the volt. Of main PCB power source. (DC 12V, DC 5V) → Repair or Change the main PCB.

4. Check the installation of wired remote controller. (Noise interference) → Adjust the state of installation
