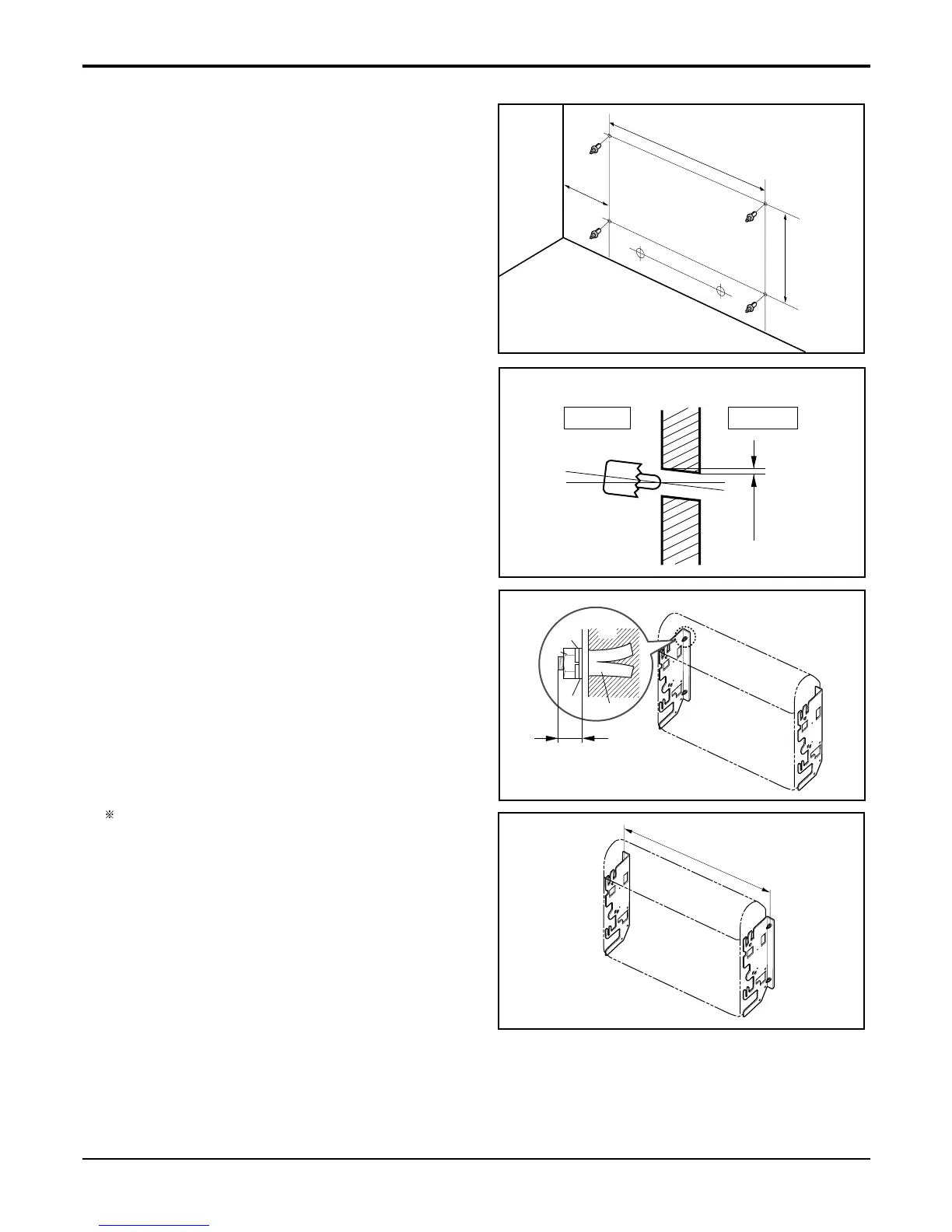

2) Installation on the Wall
• Select and mark the position for fixing bolts and piping
hole.
Decide the position for fixing bolts slightly tilted to the
drain direction after considering the direction of drain
hose.
• Drill the hole for anchor nut on the wall.
• Drill the piping hole on the wall slightly tilted to the out-
door side using a ø70 hole-core drill.
• Secure the 'Install Plate' onto the wall with four anchor
bolts, washers and spring washers.
Before secure the Install Plates, select the bent direc-
tion of the 'Install Plate' to the inside or outside accord-
ing to the installation circumstances.
