ENGLISH
7
INSTALLATION OF INDOOR
Selection of the best location
Install the air conditioner in the location that
satisfies the following conditions.
- The place shall easily bear a load exceeding
four times the indoor unit’s weight.
- The place shall be able to inspect the unit as
the figure.
- The place where the unit shall be leveled.
- The place shall easily connect with the
outdoor unit.
- The place where the unit is not affected by
an electrical noise.
- The place where air circulation in the room
will be good.
- There should not be any heat source or
steam near the unit.
* Suitable dimension "H" is necessary to get a
slope to drain as shown in the figure.
Confirm the positional relationship between
the unit and suspension bolts.
- Installation the ceiling opening to clean the
filter or service under the product.

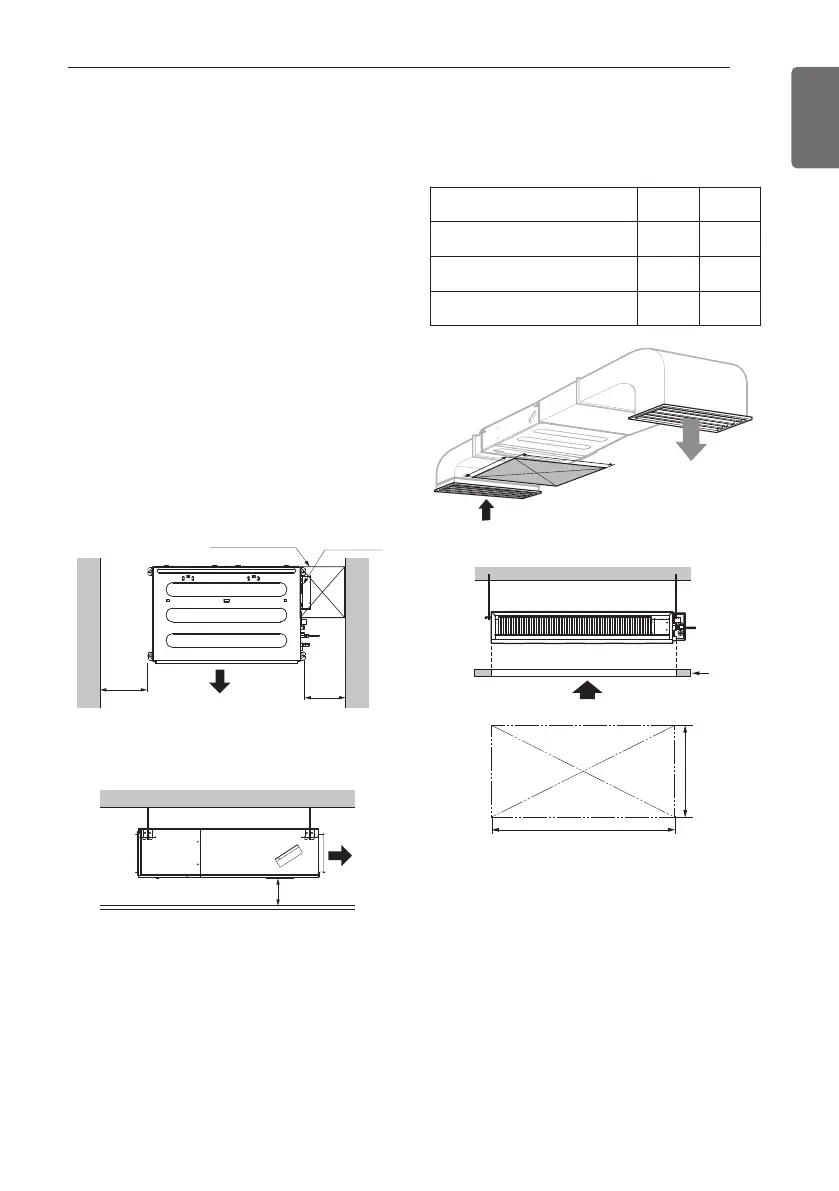

Top view
Unit: mm(inch)
Side view
Unit: mm(inch)
Inspection hole
(600 x 600)
Control box
H=20 or more
600
600
Air outlet
Air outlet
INSTALLATION OF INDOOR
Capacity (kBtu/h) A B
9 800 800
12 / 18 800 1000
24 800 1200
(Unit: mm)
Ceiling
Service Space
A
B
A(Min)
B(Min)
