INSTALLATION OF INDOOR

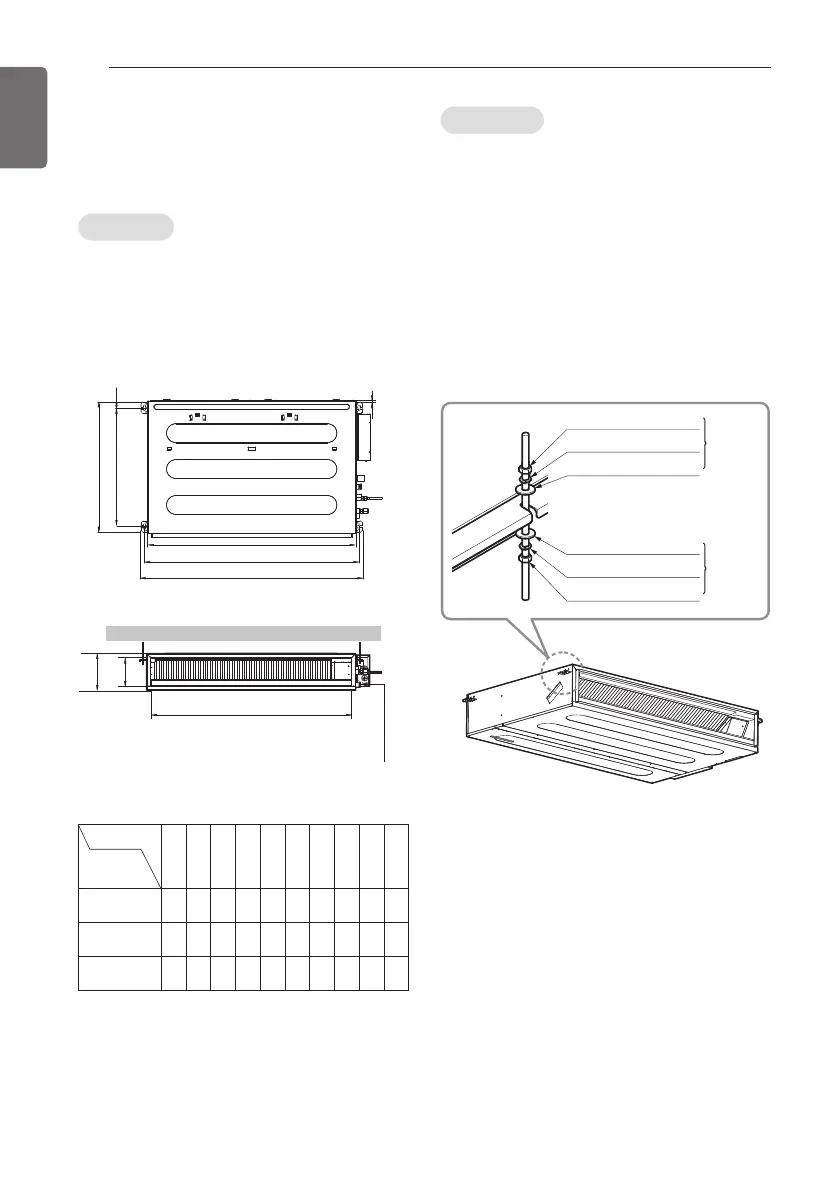

Ceiling dimension and hanging
bolt location
Install the unit above the ceiling correctly.
Position of suspension Bolt
- Apply a joint-canvas between the unit and
duct to absorb unnecessary vibration.
- Apply a filter Accessory at air return hole.
CASE 1
C
E
G
D
F
I
A
J
B
H
Drainage hole
- Install the unit leaning to a drainage hole side
as a figure for easy water drainage.
Position of console Bolt
- A place where the unit will be leveled and
that can support the weight of the unit.
- A place where the unit can withstand its
vibration.
- A place where service can be easily
performed.
CASE 2
Dim ension
Capacity
(kBtu/h
)
A B C D E F G H I J
9 733 772 628 700 36 190 20 660 155 700
12/18 933 972 628 700 36 190 20 860 155 900
24 1133 1172 628 700 36 190 20 1060 155 1100
(Unit: mm)
M10 Nut
M10 SP. washer
M10 washer
X 4
X 4
(Local
supply)
X 4
M10 Nut
M10 SP. washer
M10 washer
X 4
X 4
(Local
supply)
X 4
