INSTALLATION OF INDOOR
ENGLISH
9

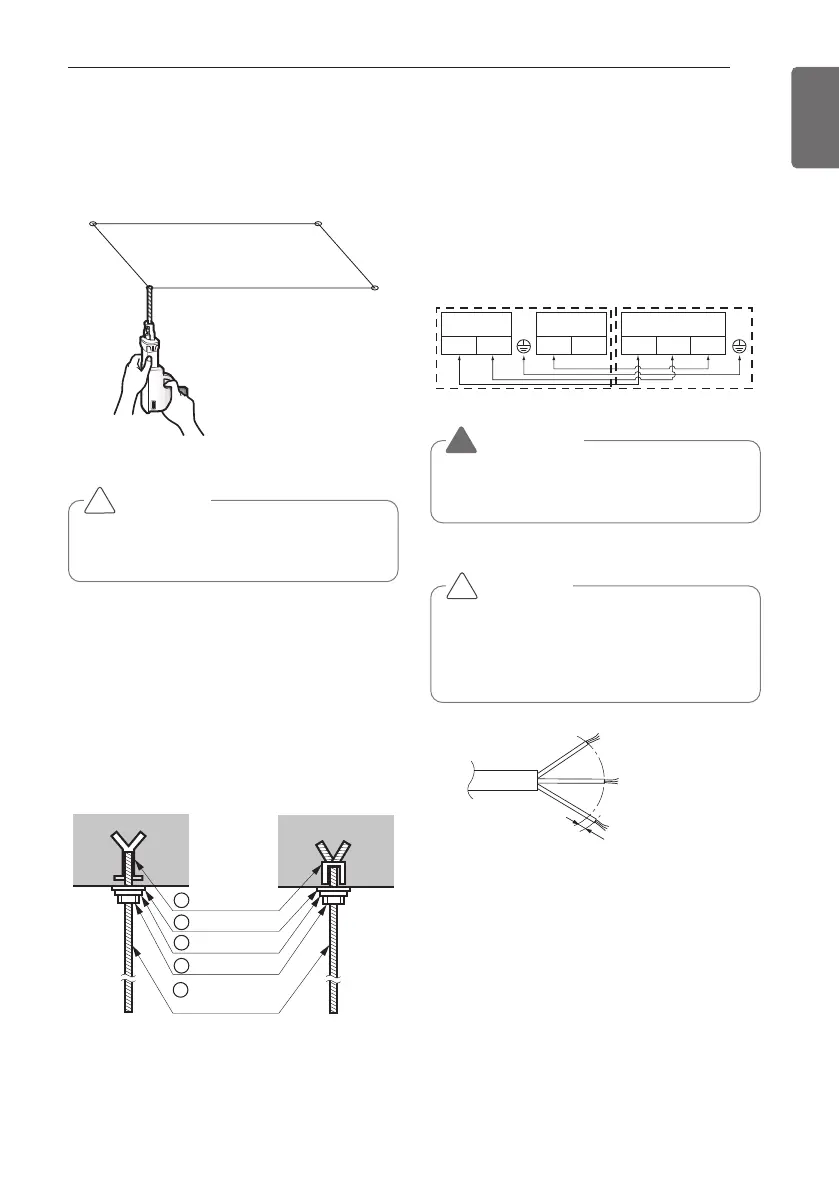

Wiring Connection
Connect the wires to the terminals on the
control board individually according to the
outdoor unit connection.
- Ensure that the color of the wires of outdoor
unit and the terminal No. are the same as
those of indoor unit respectively.
Terminal Block
Indoor
Terminal Block
Indoor
1(L) 2(N) 3
Outdoor unitIndoor unit
Terminal Block outdoor
1(L) 2(N) 3
CAUTION
• Tighten the nut and bolt top revent unit
falling.
!
- Insert the set anchor and washer onto the
suspension bolts for locking the suspension
bolts on the ceiling.
- Mount the suspension bolts to the set
anchor firmly.
- Secure the installation plates onto the
suspension bolts (adjust level roughly) using
nuts, washers and spring washers.
1 Set anchor
Old building New building
2 Plate washer
3 Spring washer
4 Nut
5 Suspension
bolts
CAUTION
The Power cord connected to the unit
should be selected according to the
following specifications. (Cable type CV
approved by IEC 60502-1)
!
20mm
GN/YL
NORMAL
CROSS-SECTIONAL
AREA 2.5mm
2
WARNING
!
Make sure that the screws of the terminal
are free from looseness.
Indoor Unit Installation
- Select and mark the position for fixing bolts.
- Drill the hole for set anchor on the face of
ceiling.
