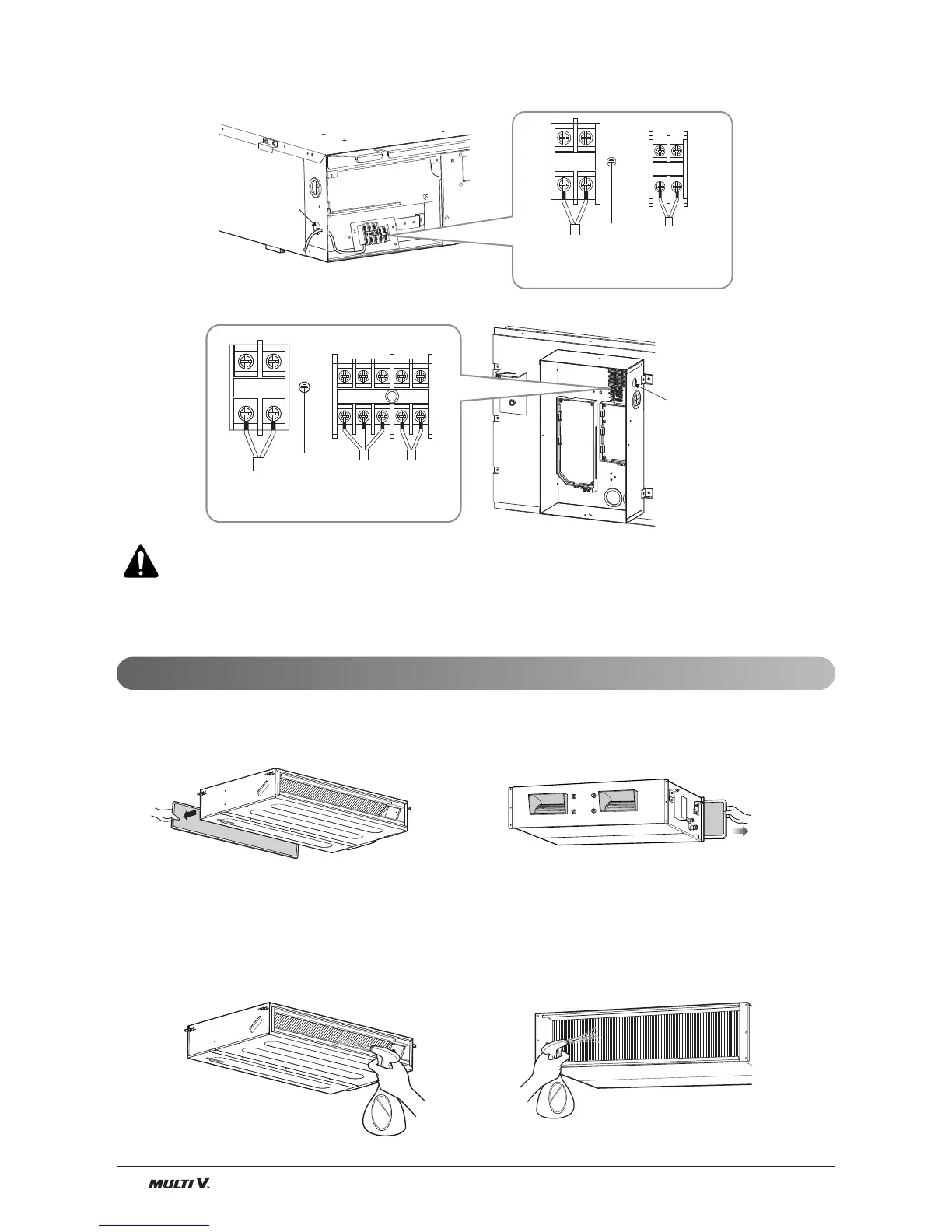

12 Indoor Unit
Installation
1. Remove the Air Filter.
2. Check the drainage.
• Spray one or two glasses of water upon the evaporator.
• Ensure that water flows drain hose of indoor unit without any leakage.
Checking the Drainage
WARNING : Loose wiring may cause the terminal to overheat or result in unit
malfunction. A fire hazzard may also exist.
Therefore, be sure all wiring is tightly connected.
Conduit Hole
Power Supply
High Voltage
(208/230V)
TransmissionWired Remote
Controller
YL RD BK A B
L(L1) N(L2)
GN/YL
Connection method of the connecting cable(Example)
Conduit Hole
L(L1) N(L2)
Power Supply
High Voltage
(208/230V)
Transmission
3(A) 4(B)
GN/YL
L1, L2, L3 Series
BH/BG/BR/B8 Series
Low static Duct type
High static Duct type
Low static Duct type
High static Duct type
