LG ARNU363B8A4 - Ceiling Dimension and Hanging Bolt Location

Installation Manual 9
ENGLISH
Installation
n Installation of Unit
Install the unit above the ceiling correctly.
• Apply a joint-canvas between the unit and duct to absorb unnecessary vibration.
• Apply a filter Accessory at air return hole.
CASE 1
POSITION OF SUSPENSION BOLT
Drainage hole
A
B
CD
(G)
H
I
EF

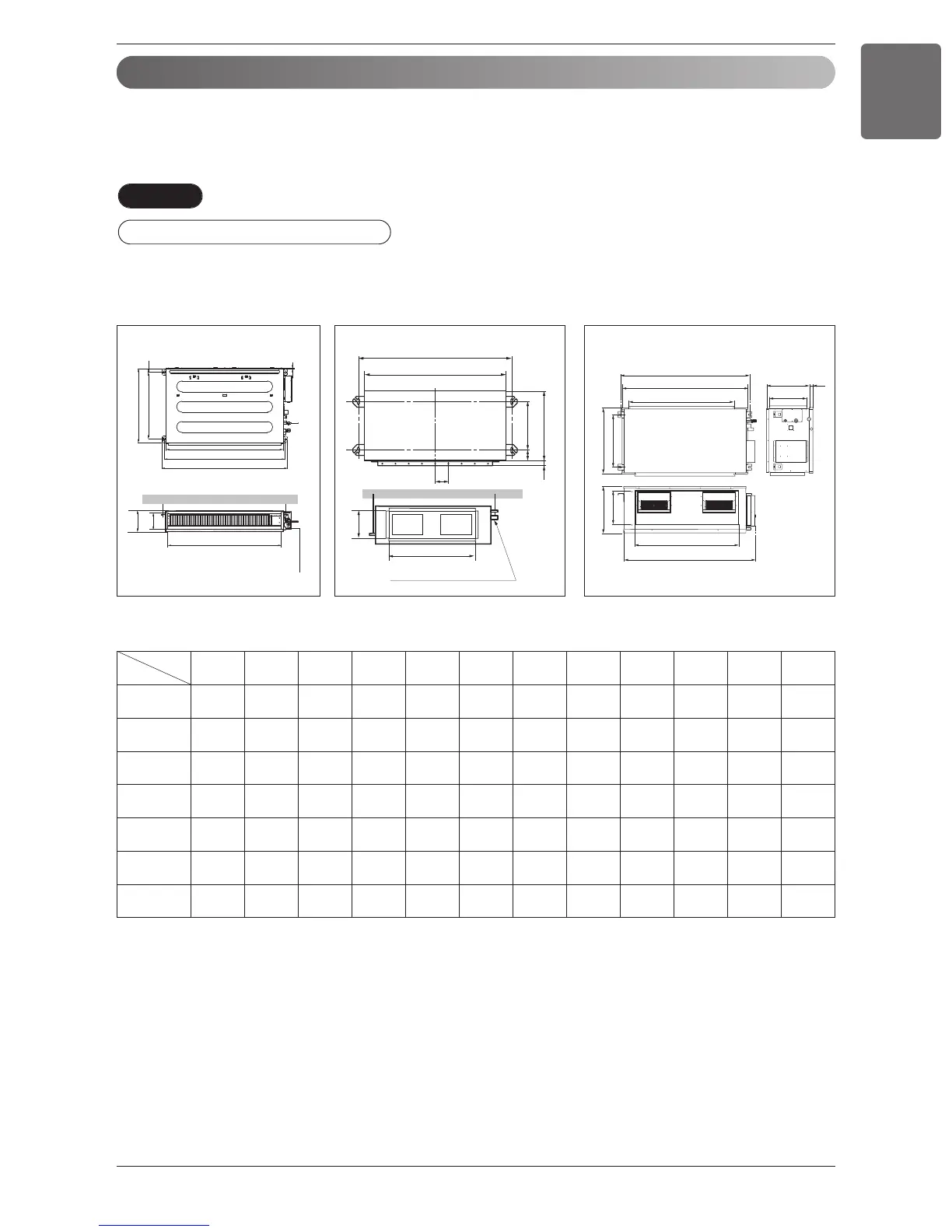

Ceiling dimension and hanging bolt location
[Unit:mm(inch)]
C
E
G
D
F
I
A
J
B
H
Drainage hole
Chassis
Dimension
ABCDEFGH I JKL
BH
932 882 355 47 450 30 87 750 158
---
(36-9/13) (34-21/29) (13-5/8) (1-3/4) (17-23/32) (1-3/16) (3-5/8) (295-8/29) (62-9/44)
BG
1,232 1,182 355 47 450 30 87 830 186
---
(48-7/13) (46-7/13) (13-5/8) (1-3/4) (17-23/32) (1-3/16) (3-5/8) (32-11/16) (7-5/16)
BR
1,282 1,230 477 56 590 30 120 1,006 294
---
(50-15/32) (48-7/16) (18-13/16) (2-3/13) (23-7/32) (1-3/16) (4-9/13) (39-19/32) (11-9/16)
B8
1,622 1,565 580 292 695 1,400 460 1,122 1,680 390 445 15
(63-27/32) (61-5/8) (22-27/32) (11-1/2) (27-3/8) (55-1/8) (18-1/8) (44-3/16) (66-5/32) (15-3/8) (17-7/13) (5/8)
L1
733 772 628 700 36 190 20 660 155 700
--
(28-27/32) (30-13/32) (24-23/32) (27-9/16) (1-13/32) (7-15/32) (25/32) (25-31/32) (6-3/32) (27-9/16)
L2
933 972 628 700 36 190 20 860 155 900
--
(36-23/32) (38-9/32) (24-23/32) (27-9/16) (1-13/32) (7-15/32) (25/32) (33-27/32) (6-3/32) (35-7/16)
L3
1133 1172 628 700 36 190 20 1060 155 1100
--
(4-7/16) (46-5/32) (24-23/32) (27-9/16) (1-13/32) (7-15/32) (25/32) (41-23/32) (6-3/32) (43-5/16)
L1, L2, L3 Series BH/BG/BR Chassis
A
F
B
KL
J
EC
G
D
H
I
B8 Chassis
