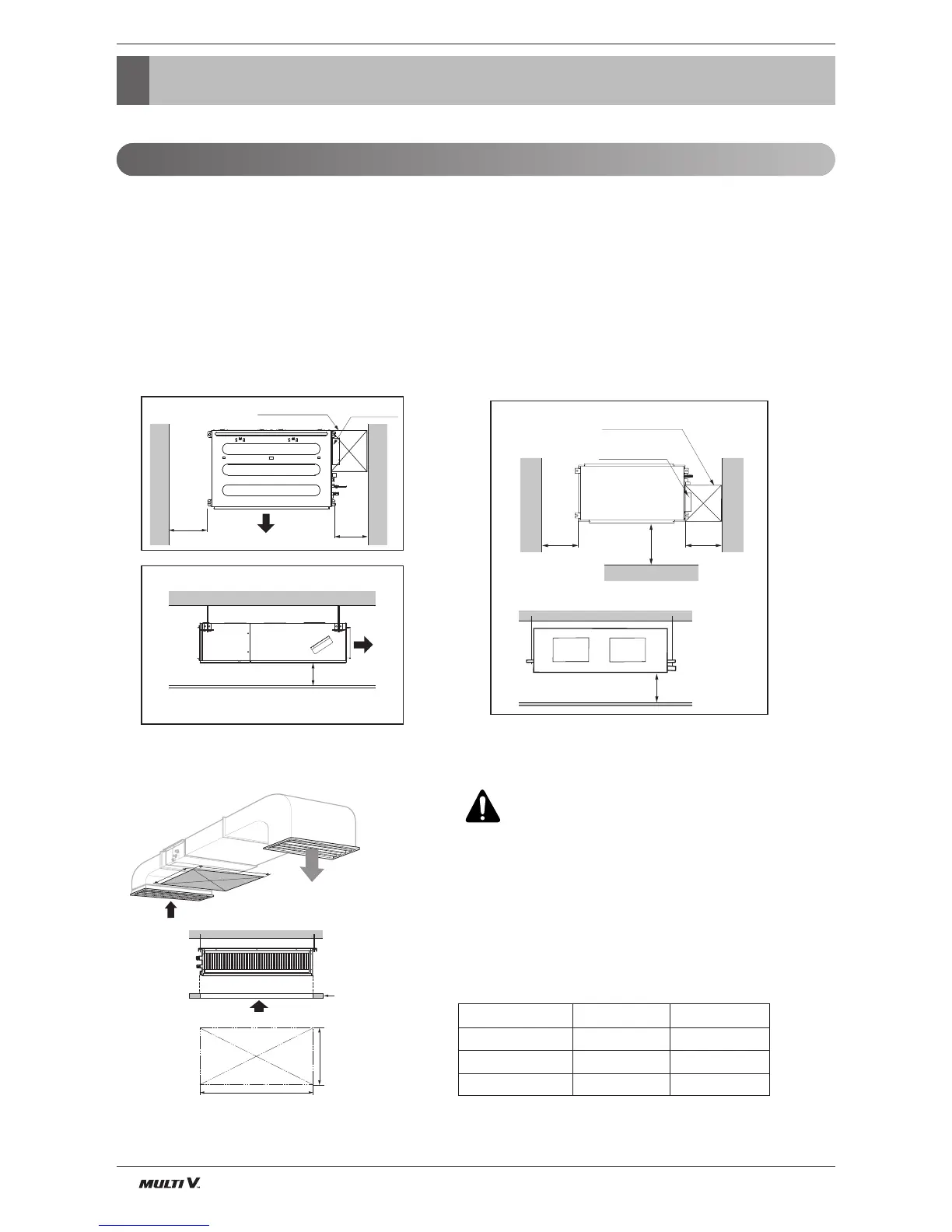

8 Indoor Unit
Installation
Install the air conditioner in the location that satisfies the following conditions.
• The place shall easily bear a load exceeding four times the indoor unit’s weight.
• The place shall be able to inspect the unit as the figure.
• The place where the unit shall be leveled.
• The place shall allow easy water drainage.
(Suitable dimension “H” is necessary to get a slope to drain as figure.)
• The place shall easily connect with the outdoor unit.
• The place where the unit is not a ffected by an electrical noise.
• The place where air circulation in the room will be good .
• There should not be any heat source or steam near the unit.
Read completely, then follow step by step.
Top view
20(25/32) or more
Front view
600
(23-5/8)
600
(23-5/8)
Front
Inspection hole
[600(23-5/8) x 600(23-5/8)]
Control box
1,000
(39-3/8)
Unit:mm(inch)
Installation
Selection of the best location
CAUTION : In case that the unit is
installed near the sea, the installation
parts may be corroded by salt, The
installation parts (and the unit) should
be taken appropriate anti-corrosion
measures.
A(Min)
B(Min)
Ceiling
Service Space
A
B
Inspection hole
(600 x 600)
Control box
H=20 or more
• Suitable dimension "H" is necessary to get a slope
to drain as shown in the figure
Side view (unit: mm)
600
600
(Unit: mm)
Top view
Air outlet
Air outlet
Low static Duct type
Capacity(kBtu/h) A B
L1 800 800(31-1/2)
L2 800 1,000(39-3/8)
L3 800 1,200(47-1/4)
Unit:mm(inch)
