Connecting Input Devices
A PC or notebook computer and video devices can be connected to the projector at the same time. Video
devices include DVD, VCD, and VHS players, as well as movie camcorders and digital still cameras.
Check the user manual of the connecting device to confirm it has the appropriate output connector.

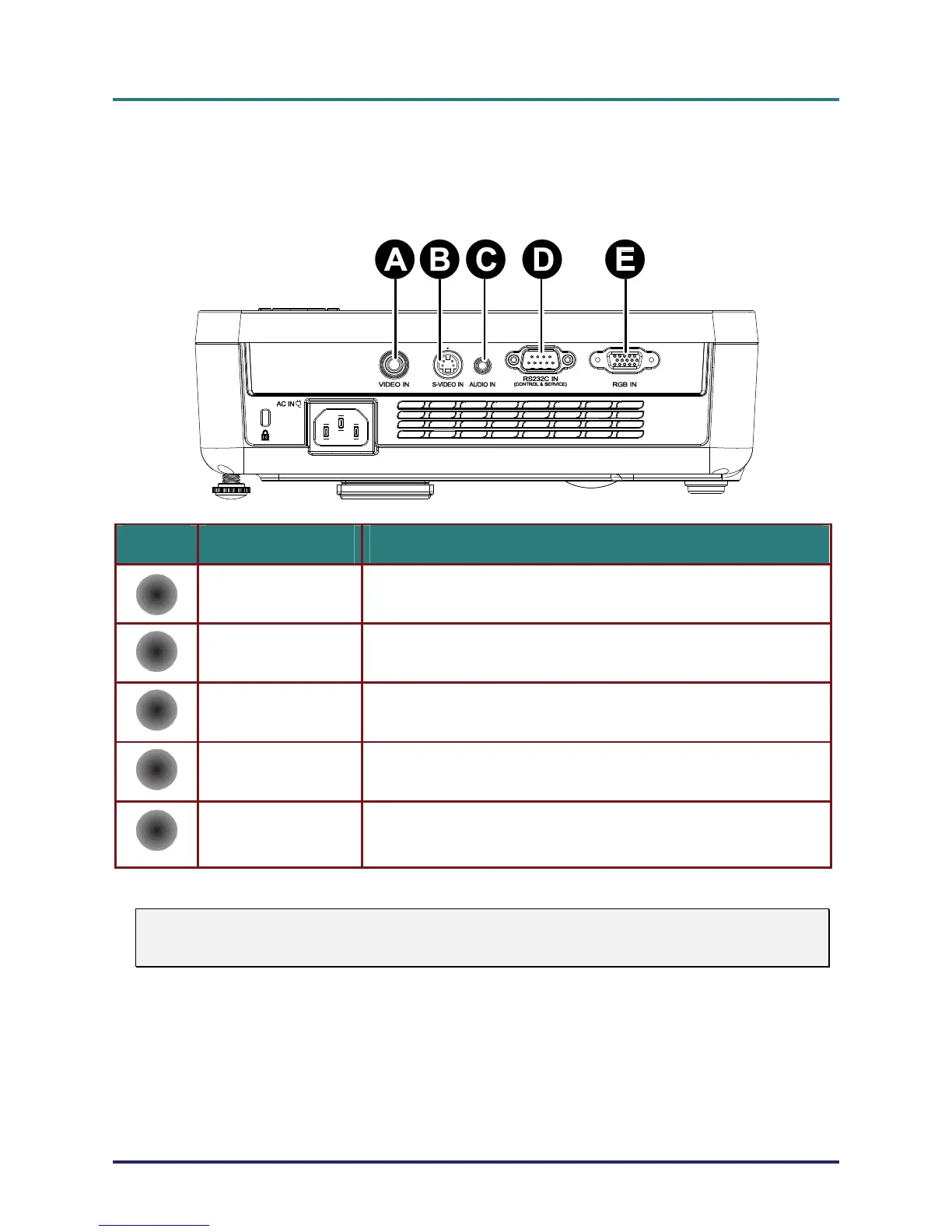

ITEM LABEL DESCRIPTION
A
VIDEO IN Connect the VIDEO CABLE from a video device
B
S-VIDEO IN Connect the S-VIDEO CABLE from a video device
C
AUDIO IN
Connect the AUDIO CABLE from the computer’s audio-out connector.
Connect the AUDIO CABLE (mini jack-to-RCA x 2) from a video device.
D
RS-232C IN Connect the RS-232C CABLE from a computer (CONTROL & SERVICE)
RGB IN
Connect the RGB CABLE from a computer.
Connect DVD input YCbCr / YPbPr, through optional RGB to
COMPONENT ADAPTOR.
E
Warning:
As a safety precaution, disconnect all power to the projector and connecting devices before making
connections.
