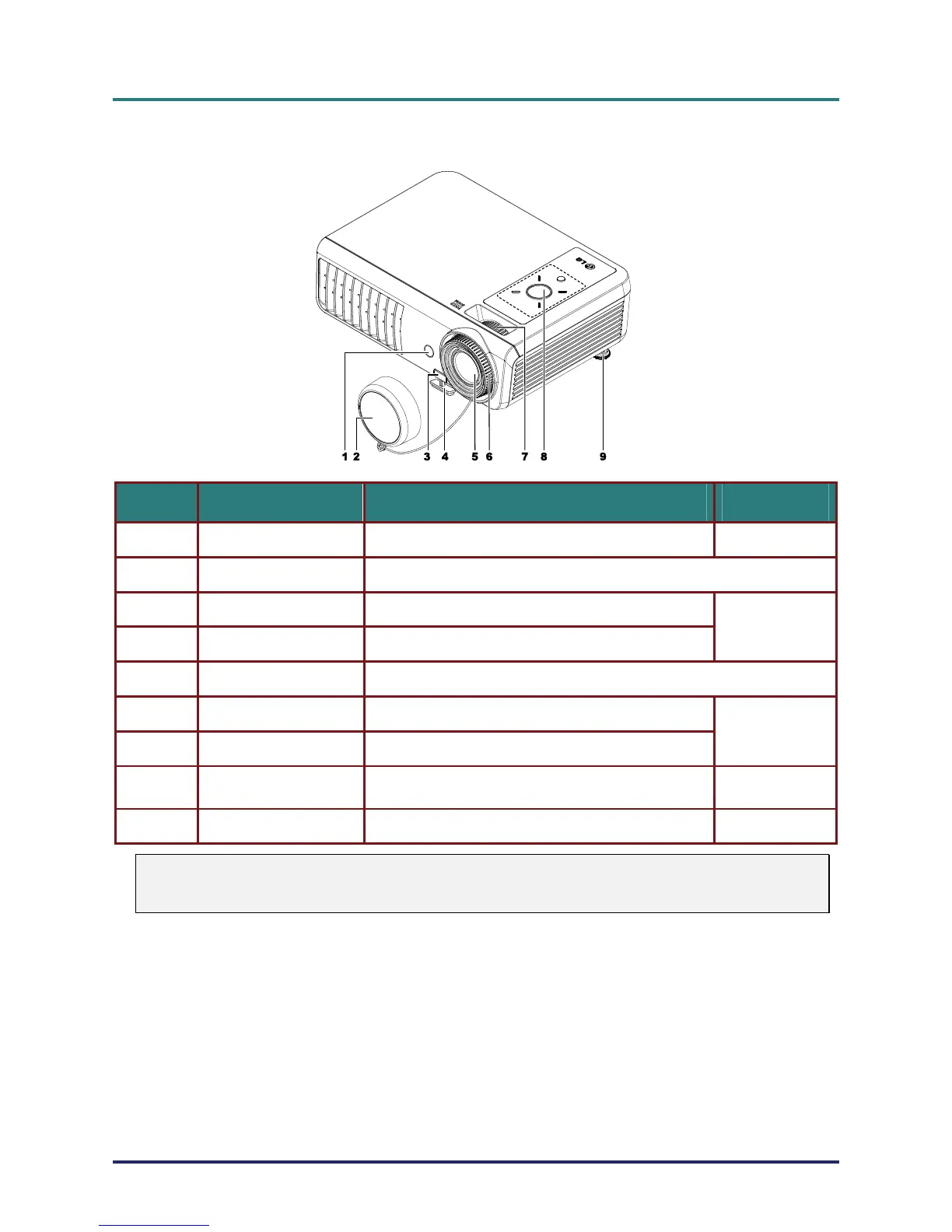

Views of Projector Parts
ITEM LABEL DESCRIPTION SEE PAGE:
1.
IR receiver Receiver for IR signal from remote control
6
2.
Lens cap Covers lens to protect when not in use
3.
Height-adjuster button Push to release height adjuster
4.
Height adjuster Adjusts level of projector
14
5.
Lens Remove lens cap before use
6.
Zoom ring Enlarges the projected image
7.
Focus ring Focuses the projected image
15
8.
Function keys
See Top view—On-screen Display (OSD) buttons and
LEDs.
3
9.
Height adjuster Adjusts level of projector
14
Important:
Ventilation openings on the projector allow for good air circulation, which keeps the projector lamp
cool. Do not obstruct any of the ventilation openings.
– 2 –
