LG CM9730 - Aux; Tuner; Speaker Light Jack Circuit Diagram

3-75 3-76

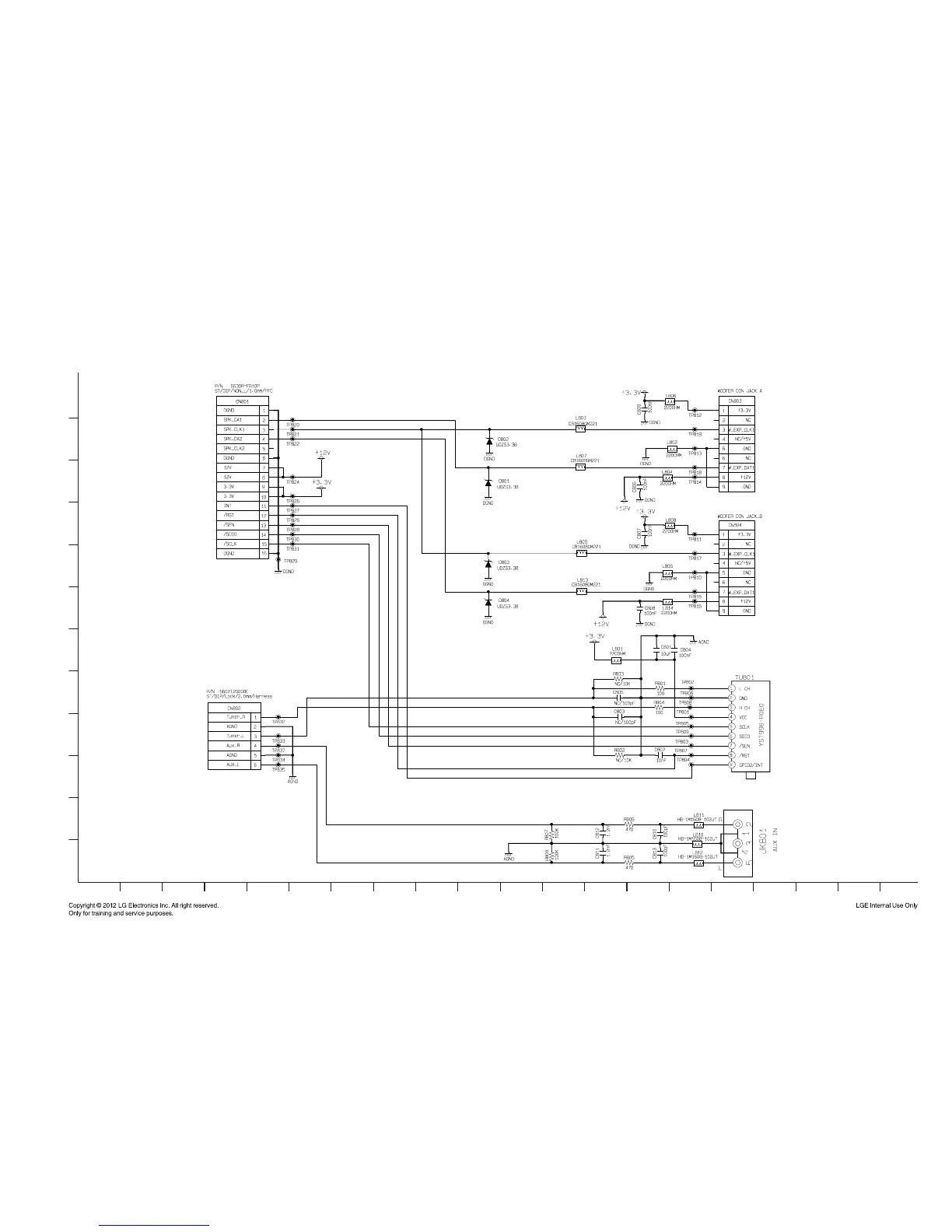

14. AUX / TUNER / SPEAKER LIGHT JACK CIRCUIT DIAGRAM
A
1
2
3
4
5
6
7
8
9
10
11
12
B C D E F G H I J K L M N O P Q R ST
AUX/ TUNER/ SPK LIGHT JACK
EAX64800701-SD_5.1.5
2012. 09. 12
