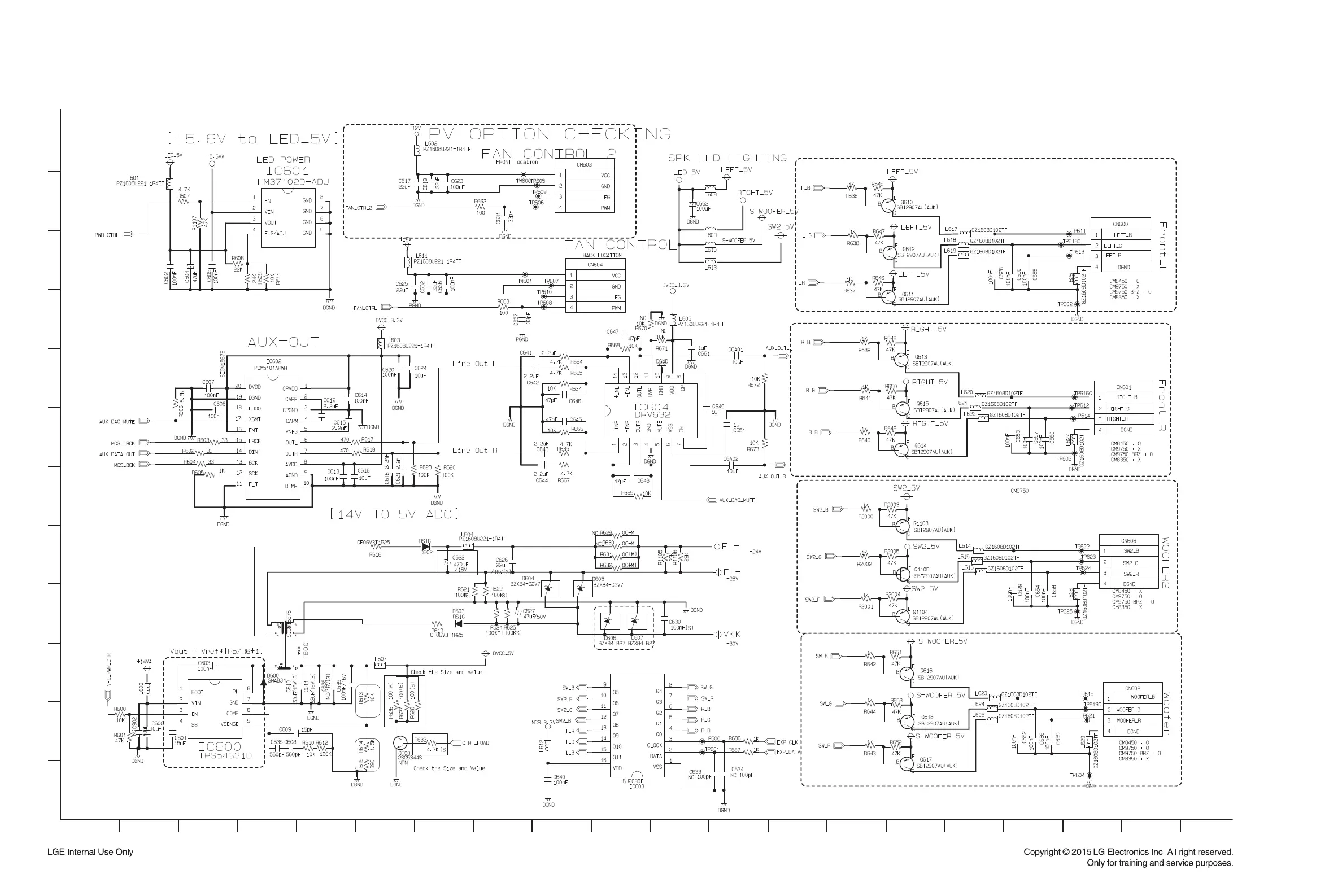

8. MAIN - MIC/ AUX CIRCUIT DIAGRAM
A
1
2
3
4
5
6
7
8
9
10
11
12
B C D E F G H I J K L M N O P Q R ST
MIC/ AUX
EAX66215801_1.7(22)-SD(#6)
2015. 01. 07
