5
NSTALLATION INSTRUCTIONS
I
Unit:mm

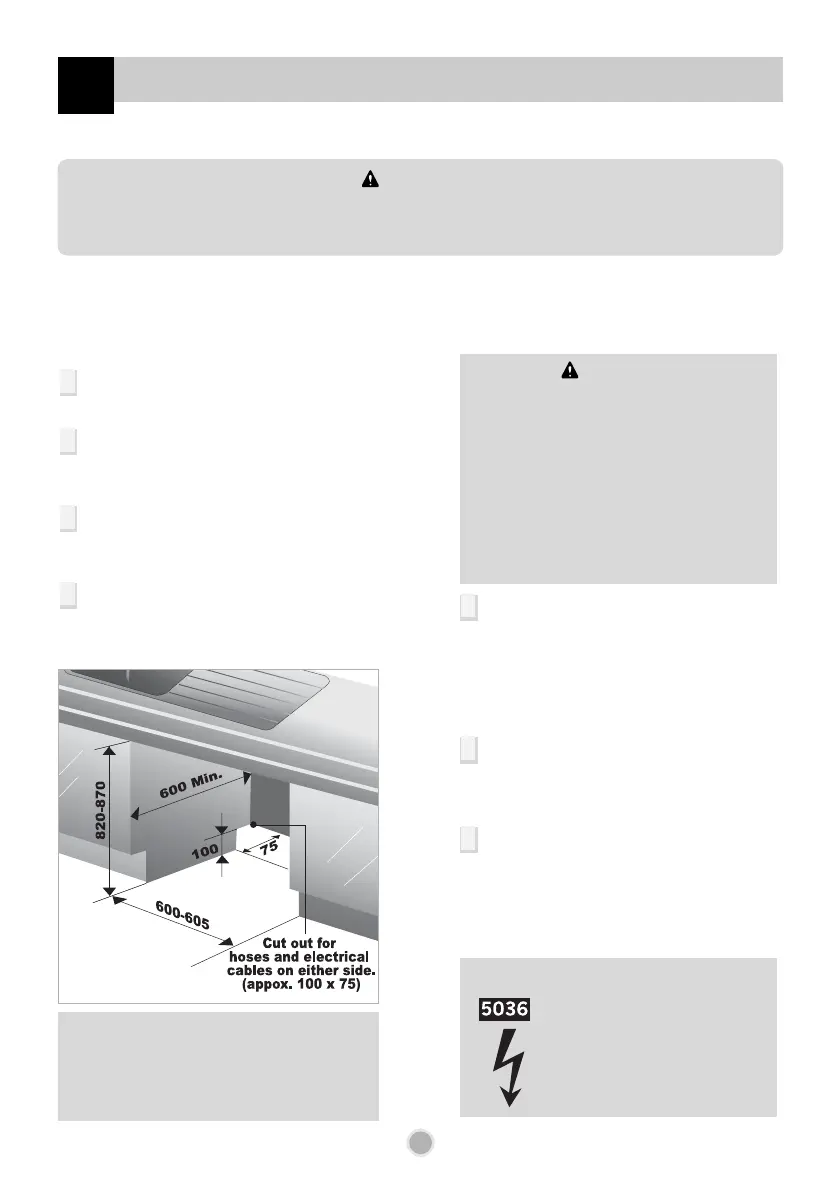

Step 1 :
PREPARE CUPBOARD OPENING
Step 2 :
PREPARATION FOR ELECTICAL WIRING
1
2
3
This appliance must be supplied with
correct rating voltage and hertz as shown
on instruction manual, and connected to
an individual, properly earthed branch
circuit, protected by a minimum 15 amp
circuit breaker or time delay fuse.
Wiring must be 2 wire with Earth.
The power plug must be in a accessible
location adjacent to and not behind the
dishwasher and within 1.2 meters of the
dishwasher side.(See page 7 Fig.A)
The power plug must be correctly
earthed, if in doubt, have it checked by a
qualified Electrician. No other appliance
should be connected to the same plug
outlet by a double adapter or similar
plug.
CAUTION
For personal safety, remove house
fuse or open circuit breaker before
installation. Do not use an extension
cord or adapter plug with this
appliance. Electrical and earthing
connections must comply with the
national electrical code/provincial and
municipal code and/or other local
codes.
Any bare wood surrounding the
dishwasher should be sealed with a
waterproof paint or sealant to prevent
swelling.
Dangerous voltage
To indicate hazards arising
from dangerous voltages.
Note – In case of application
in a warning sign the rules
according to ISO 3864 shall
be adhered to.
WARNING
A qualified electrician/plumber or competent person should carry out any electrical/plumbing
work required to install this appliance.
1
2
3
4
This dishwasher is designed to fit the size
shown as below.
Select a location as close to sink as
possible for ease of connection to the
water and drain pipes.
To ensure good drainage, the dishwasher
should not be installed more than 3 meters
away from the sink.
If dishwasher is installed in a corner, a
minimum of 5cm of space is required
between the washer and an adjacent
cabinet or wall.
