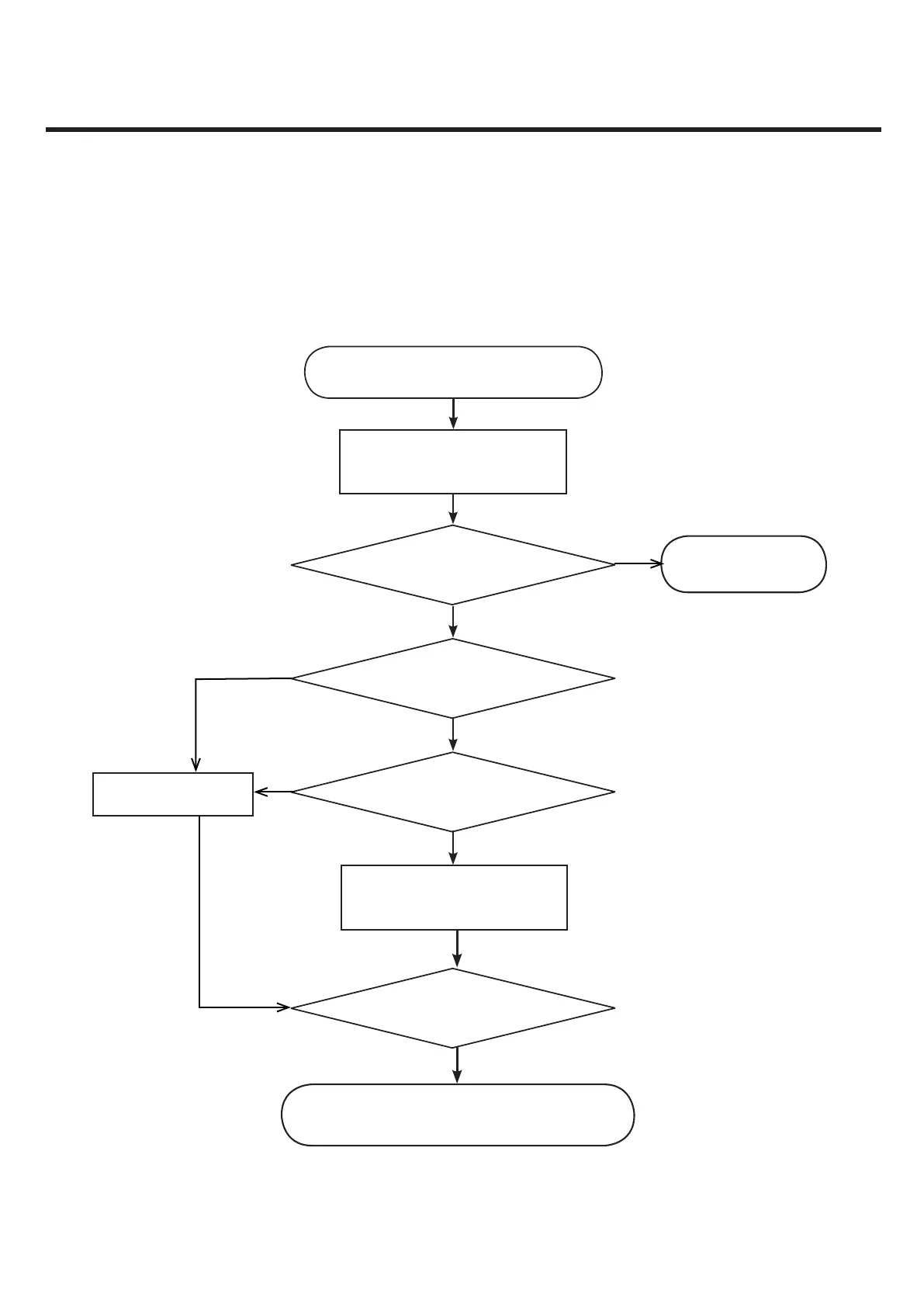

3.17. 8M Main Camera TS
8M camera control signals are generated by MT6582 (U2100 : Main Chipset).
And powered by voltage regulator (U4100)
Camera is OK ?
Check VIO(TP1), DVDD(TP2), AVDD(TP3)
Camera is OK ?
Check the camera signals MCLK(TP4),MIPI_
CLK(TP5), MIPI_DATA(TP6)
START
END
END
Check the camera Conn.
And reconnect the camera
Change the Main board
Change the Camera
No
Yes
Yes
Yes
No
No
No
