8. PCB LAYOUT
8. PCB LAYOUT

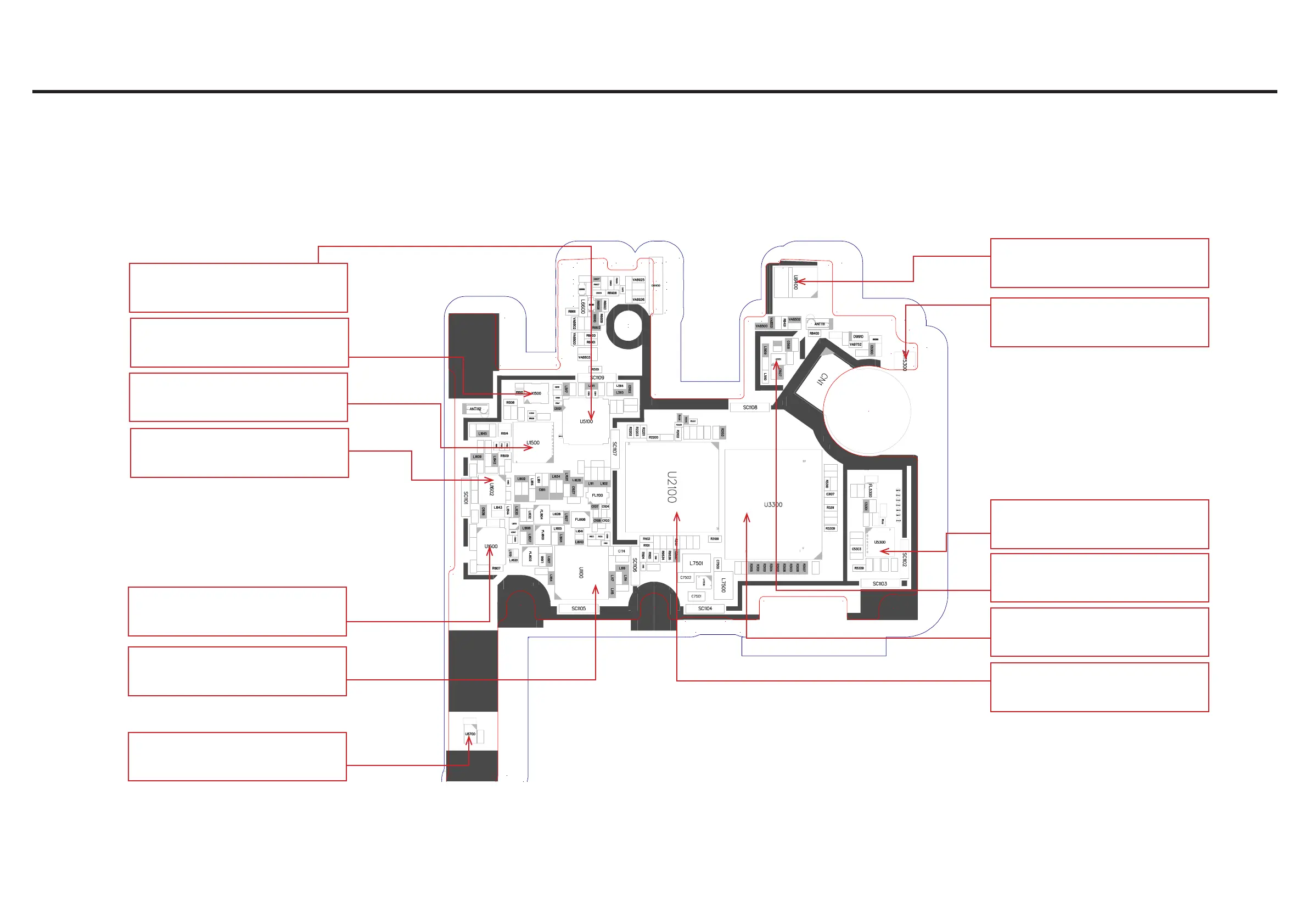

LG-D337_Main_EAX65632401_1.0_TOP-1
D:\expedition\L80V\EAX66073001_1_0_LGD337_MAIN_140618_1715\PCB\Board1.pcb - Page 1 of 1 pages.















 


























 
   
 
   












 














  



 























 






















Model name : MT6627 (U5100)
Function : Connectivity IC
- no BT/WiFi, no FM Radio, no GPS
Model name : OZ26000008 (X1500)
Function : TCXO
- no booting, no RF
Model name : MT6166 (U1500)
Function : RF transmitter
-no RF
Model name : SKY77761(U1602)
Function : 3G PAM
-no RF(WCDMA Band1)
Model name : SKY77758(U1600)
Function : 3G PAM
-no RF(WCDMA Band2/5/8)
Model name : SKY77589-11(U1100)
Function : RF FEM(Front End Module)
-no RF
Model name : BU52033NVX(U8700)
Function : Hall IC
no quick circle case
Model name : APDS-9130-200(U8400)
Function : Proximity sensor
- no proximity sensor
Model name : Antenna PAD(ANT5300)
Function : DTV antenna pad
- no DTV
Model name : FC8150 (U5300)
Function : 1-SEG receiver
-no DTV
Model name : SFMG2XAB002 (U5101)
Function : GPS LNA
- no GPS
Model name : KMQ7X000SA-B315(U3300)
Function : Memory
- no SIM detect, no SD card
Model name : MT6582(U2100)
Function : Application processor
- no booting, no function
