4. Trouble Shooting

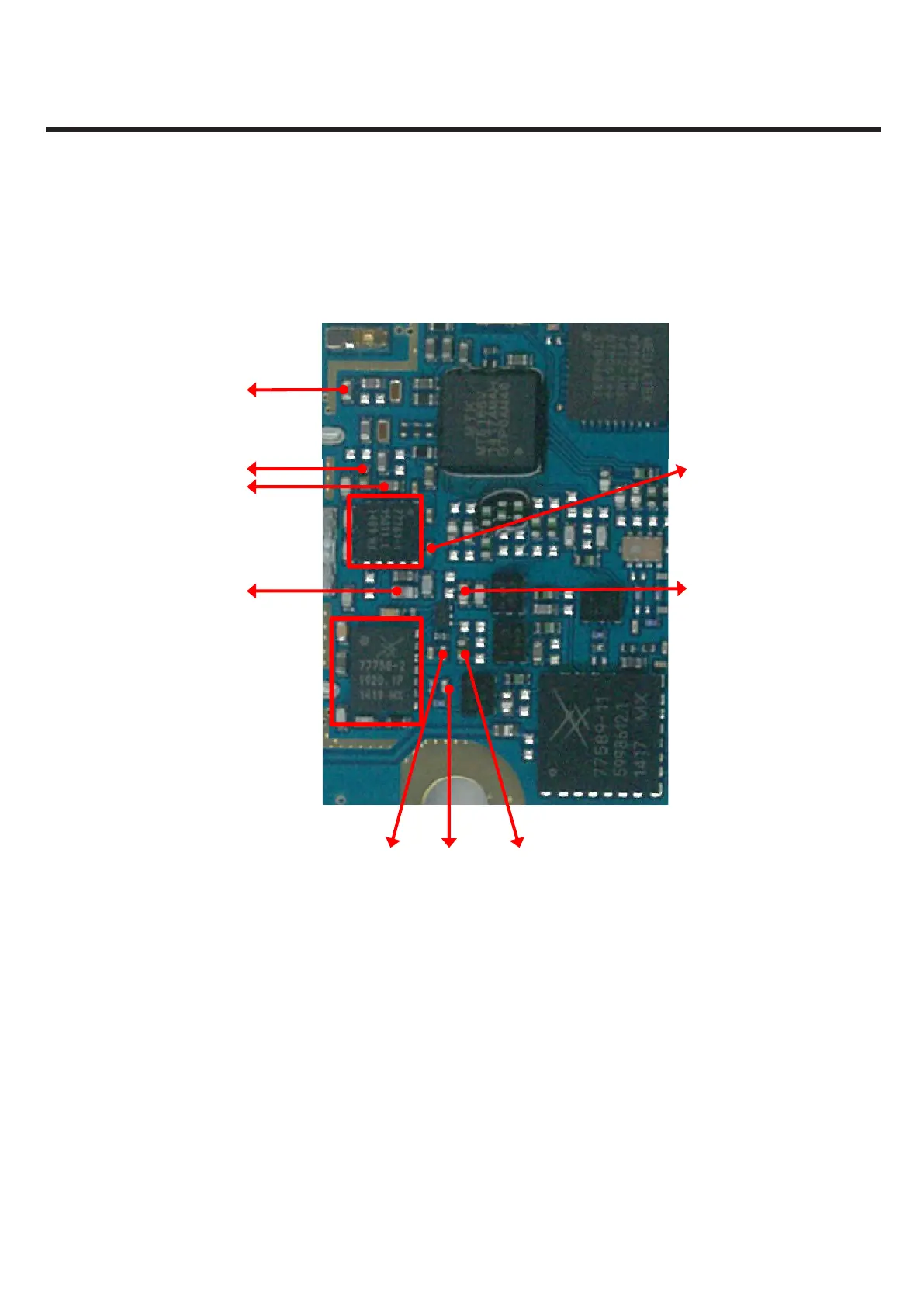

3.2.1.3 Checking B1/B2/B5/B8 TX PA
Test Point
TP1(B2)
: C1657
TP1(B5/B8)
TP3(B1)
TP2(B1)
: C1650
PAM
(U1602)
TP1(B1)
: C1651
: C1605
TP2(B8)
: C1635
TP3(B1)
: C1610
PAM
(U1600)
TP2(B2)
: C1618
TP2(B5)
: C1602
TP3(B2/B5/B8)
: C1609
