4. Trouble Shooting
3.3.1.1 Checking DC Power supply circuit

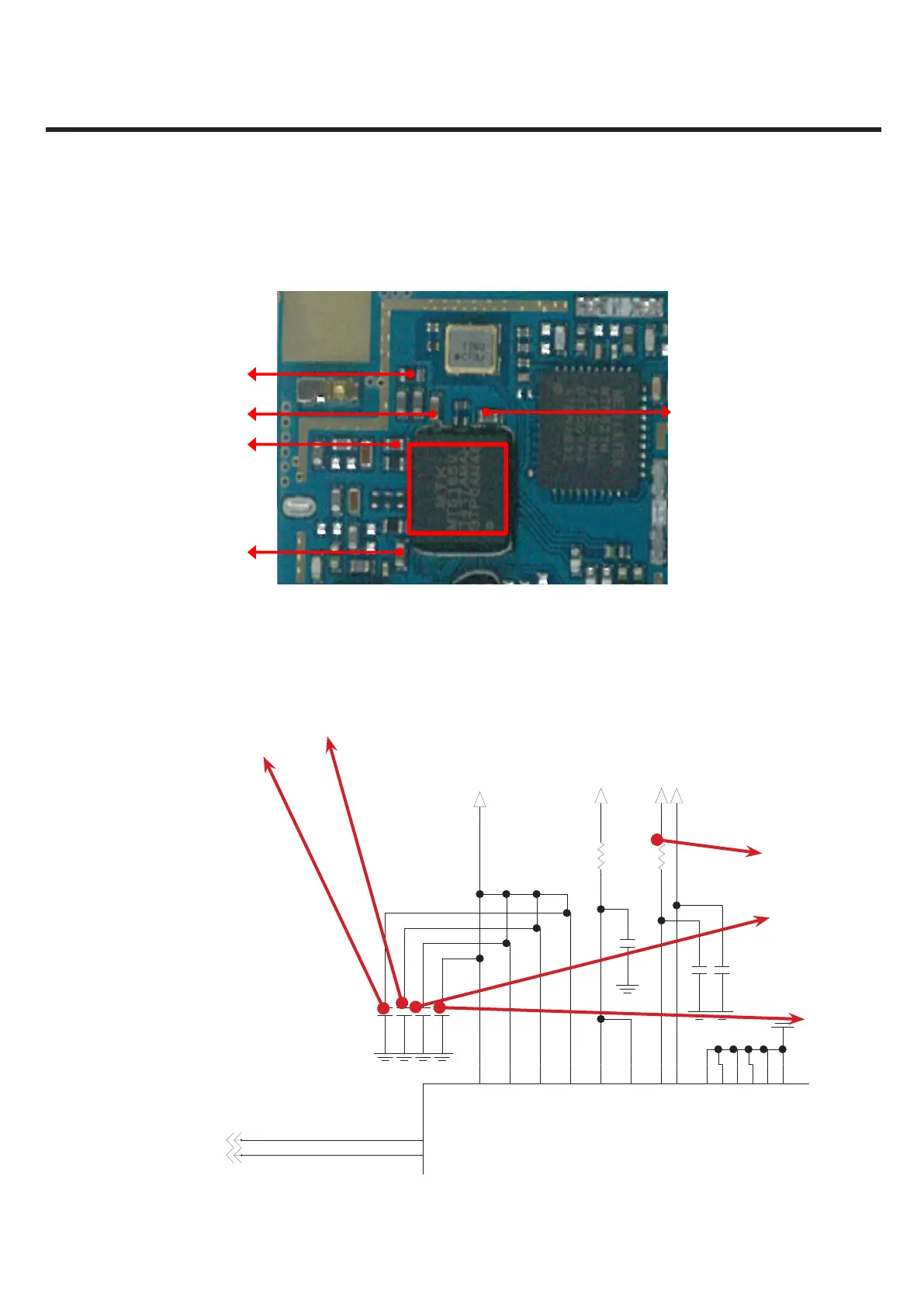

Test PointTest Point
TP5 R1506
TP1 : C1506
(+1V825_MTK_VRF )
TP4: C1503
(+1V825_MTK_VRF )
TP5
:
R1506
(+2V8_MTK_VTCXO)
TP2: C1505
(+1V825_MTK_VRF )
MT6166
(U1500)
Circuit Diagram
TP3 : C1504
(+1V825_MTK_VRF )
TP2
TP4
TP5
TP1
TP3
TP2
TP4
TP5
