INSTALLATION
Preparing Door Panel
1

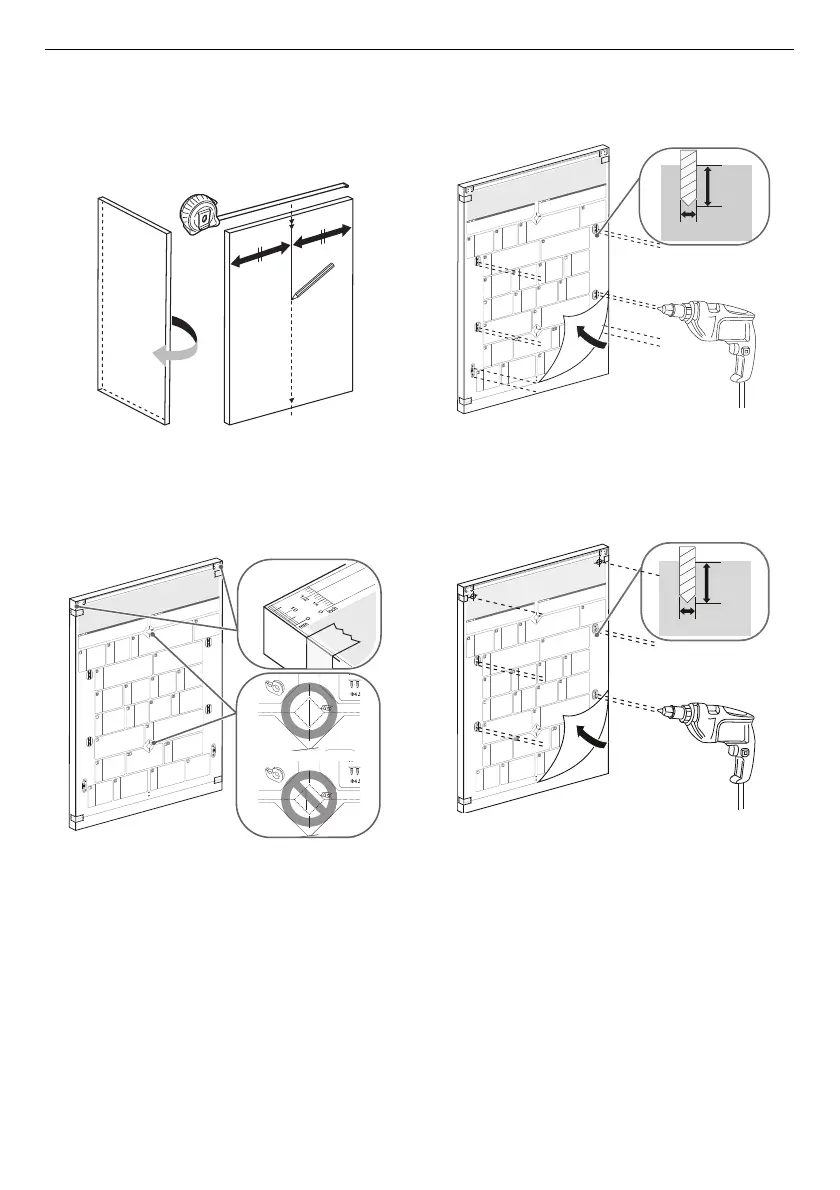

Mark a centre line lengthwise down the back of
the door panel.
2
Align the top and centre line on the installation
template with the top and centre line of the
door panel. Securely tape the installation
template to the back of the door panel.
3
(Case A) Mounting the sliding panel
Use a 2 mm diameter drill bit to drill 10 mm
deep pilot holes at the 12 points marked on the
template.
(Case B) Mounting the fixed panel
Use a 2 mm diameter drill bit to drill 10 mm
deep pilot holes at the 10 points marked on the
template.
4
(Case A) Mounting the sliding panel
Remove the template, and attach the upper
and middle panel brackets (provided) to the
