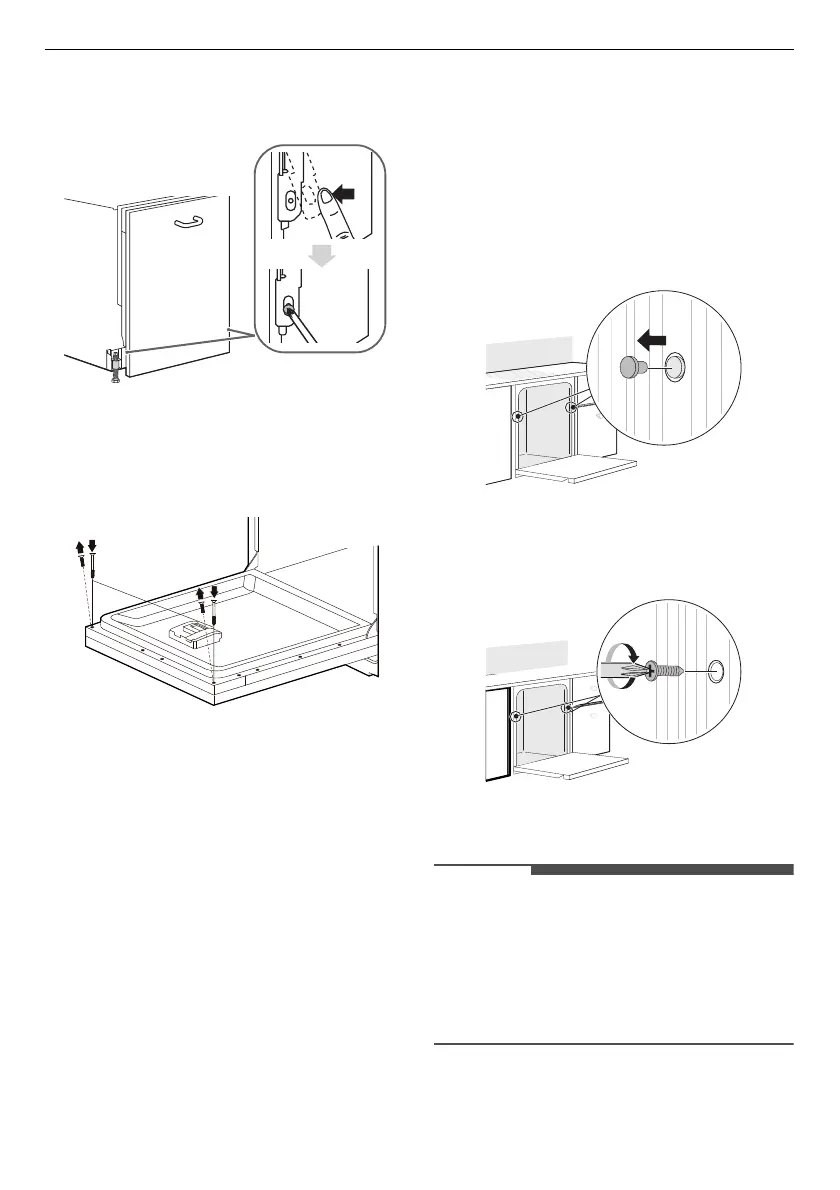

INSTALLATION
Attach the door panel to the dishwasher door
on the sides using the provided wood screws
(Φ 4 x 14 mm).
(Case B) Mounting the fixed panel
Remove the 2 screws from the control panel.
Attach the door panel to the dishwasher door
using the provided wood screws (Φ 4 x 40 mm).
Securing Dishwasher to
Cabinet Opening
Securing Dishwasher to Cabinet
Framework
1
Remove the 2 plastic caps from the mounting
bracket access holes.
2
Drive a wood screw (Φ 4.5 x 12 mm) through
the mounting bracket and into the cabinet
frame.
3
Reinstall the plastic caps.
• External water leakage could result if the
installation of the screws to the surrounding
timber cabinet is not done correctly.
• Please ensure that the height levelling of the
dishwasher is done by adjusting the feet before
installing the side cabinet securing screws.
