Dedicated Outdoor Air System (DOAS) Installation and Operation Manual
LOCATION SELECTION
Unit Orientation and Control Component Location

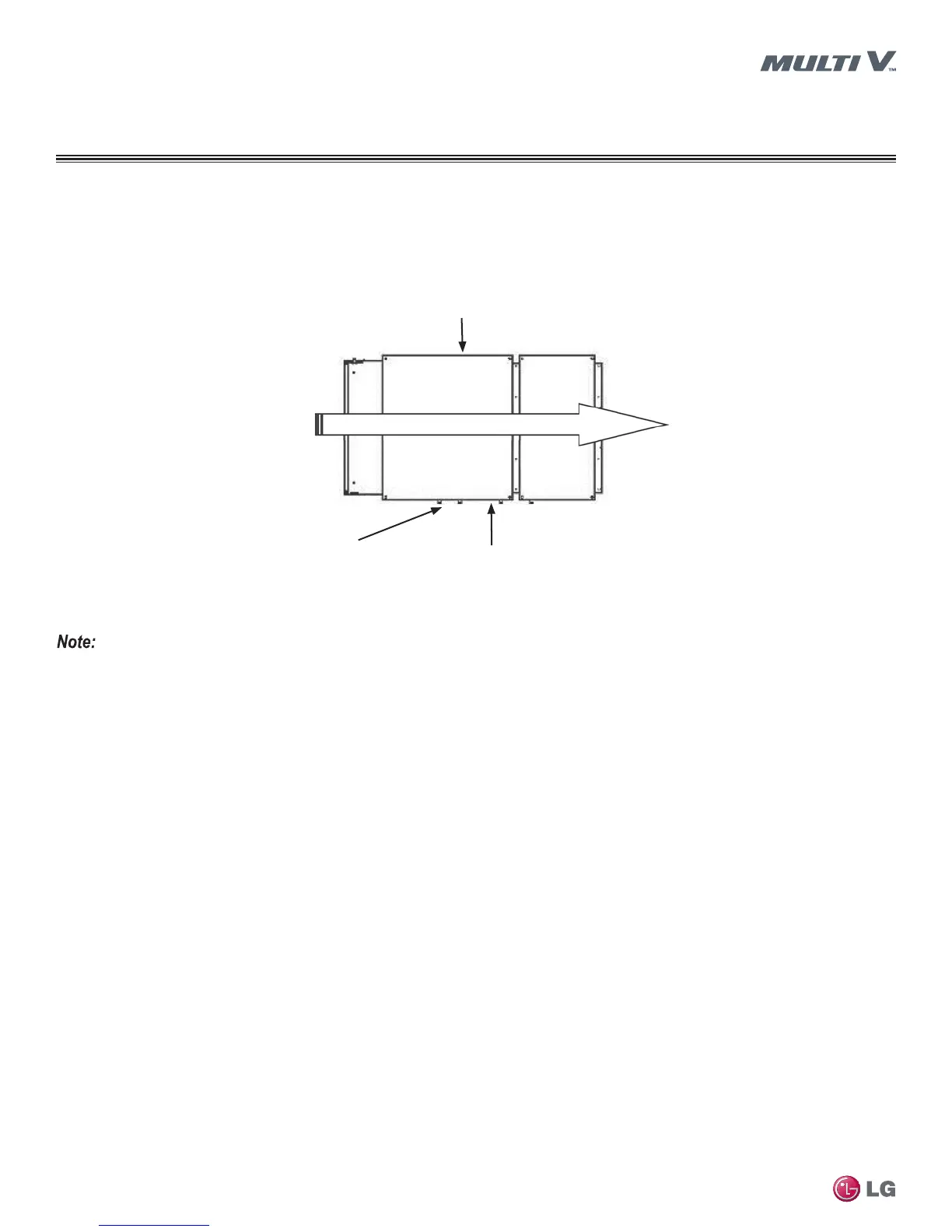

Figure 4: Unit Orientation
Filter, coil and wiring access doors are on the right side as designated by the unit orientation and fan access door is on the left side. The back will
always be the same side as the lter and outdoor air opening. The front will always be the side opposite the lter and
outdoor air opening.
DOAS TOP VIEW
Connections and
Service Access on
Right Side for Right-
Hand Orientation
Supply Air
(Front)
Left Hand Side
Right Hand Side
Outdoor Air
(Back)
AIR FLOW
To Next Page
