Dedicated Outdoor Air System (DOAS) Installation and Operation Manual
IOs Page
START-UP
Web System Interface

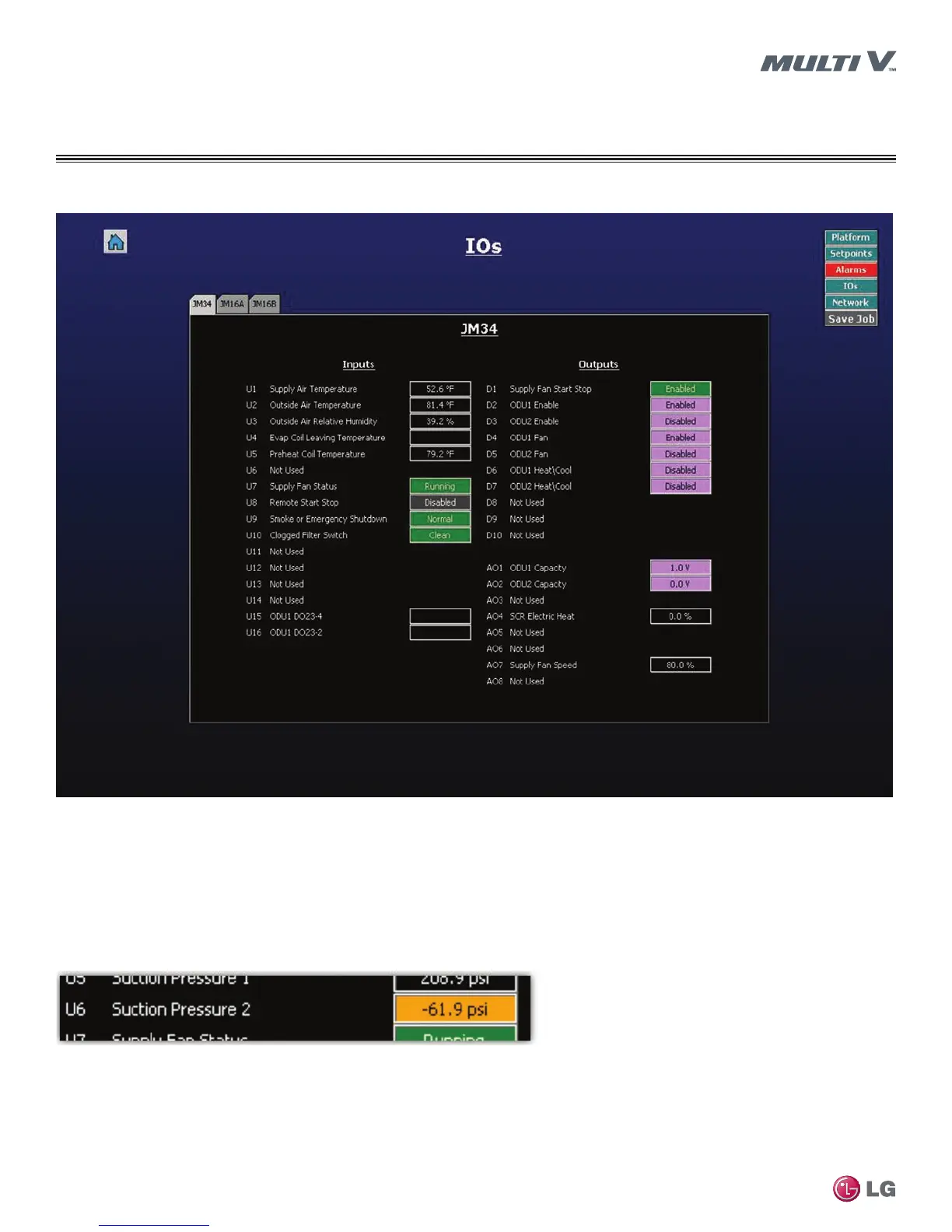

Figure 51: Web User Interface IOs Page
Web User Interface IOs Page Overview
The Web User Interface IOs page has a tabbed window that displays all inputs and outputs for each possible IO module.
• Displays Not Used for modules that are not in use.
• Each value comes directly from the input or output on the associated IO module.
• Indicates if any of the inputs or outputs are in a fault position and not working properly. Faults are indicated with orange shading (shown
below).
Figure 52: Web Interface Page IO Fault
