4

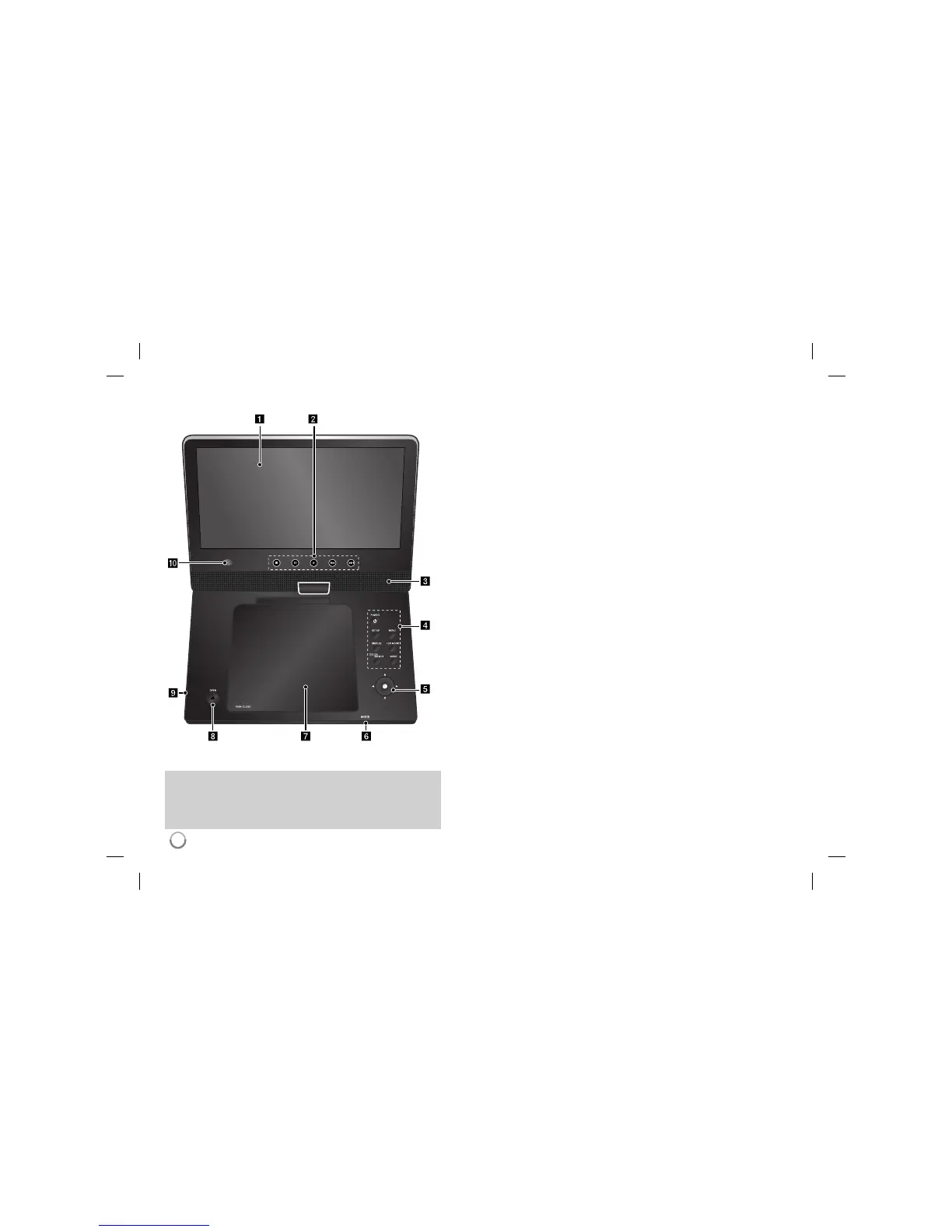

Main Unit
a LCD screen
b Playback Control Buttons
• N (Play): Starts playback.
• x (Stop): Stops playback.
• X (PAUSE/STEP): Pauses playback temporarily/ press repeatedly for
frame-by-frame playback.
• . (Skip): Search backward* or returns to the beginning of current chapter or
track or go to the previous chapter or track.
• > (Skip): Search forward* or Go to next chapter or track.
* Press and hold button for about two seconds.
c Speakers
d Function Buttons
• POWER (1): Turn the unit ON or OFF.
• SETUP: Accesses or exits the setup menu.
• MENU: Accesses the DVD menu.
• DISPLAY: Accesses On-Screen Display.
• LCD MODE: Selects the LCD mode. (16:9, 4:3 or Off)
• COLOR/BRIGHT*: Displays the Brightness or Color menu for LCD display.
• MODE: Selects a operation mode among [DISC], [USB] and [AV IN].
* To adjust the color or brightness of the LCD display, press COLOR/BRIGHT
repeatedly on the main unit to display the Brightness or Color menu then use
b / B to adjust the value. Press ENTER to confirm the adjustment.
e Joystick: Use the joystick to select an item in the menu. Press the joystick to con-
firm the menu selection.
f Battery charge and power indicator
• The indicator turns red in charging and changes to green color when the charging
is complete. (Refer to page 3 for details.)
• The indicator turns green for a few seconds when the unit is turned on.
g Disc Lid
h OPEN (Z): Opens the disc lid.
i USB Port: Connect an USB Flash Drive.
j Remote sensor: Point the remote control here. To control the unit using the remote
control, do not fold the LCD panel down.
Volume: You can adjust the volume level using the volume controller
on the right side.
Earphones: Connect a earphones to the earphones jack on the right
side to enjoy the sound individually.
