LG F1***ND1 - Heater Removal and Installation; Thermistor Removal and Installation

Open the lower cover cap ( ) by
using a coin. Turn the drain plug
( ) to pull out the hose.
30
1

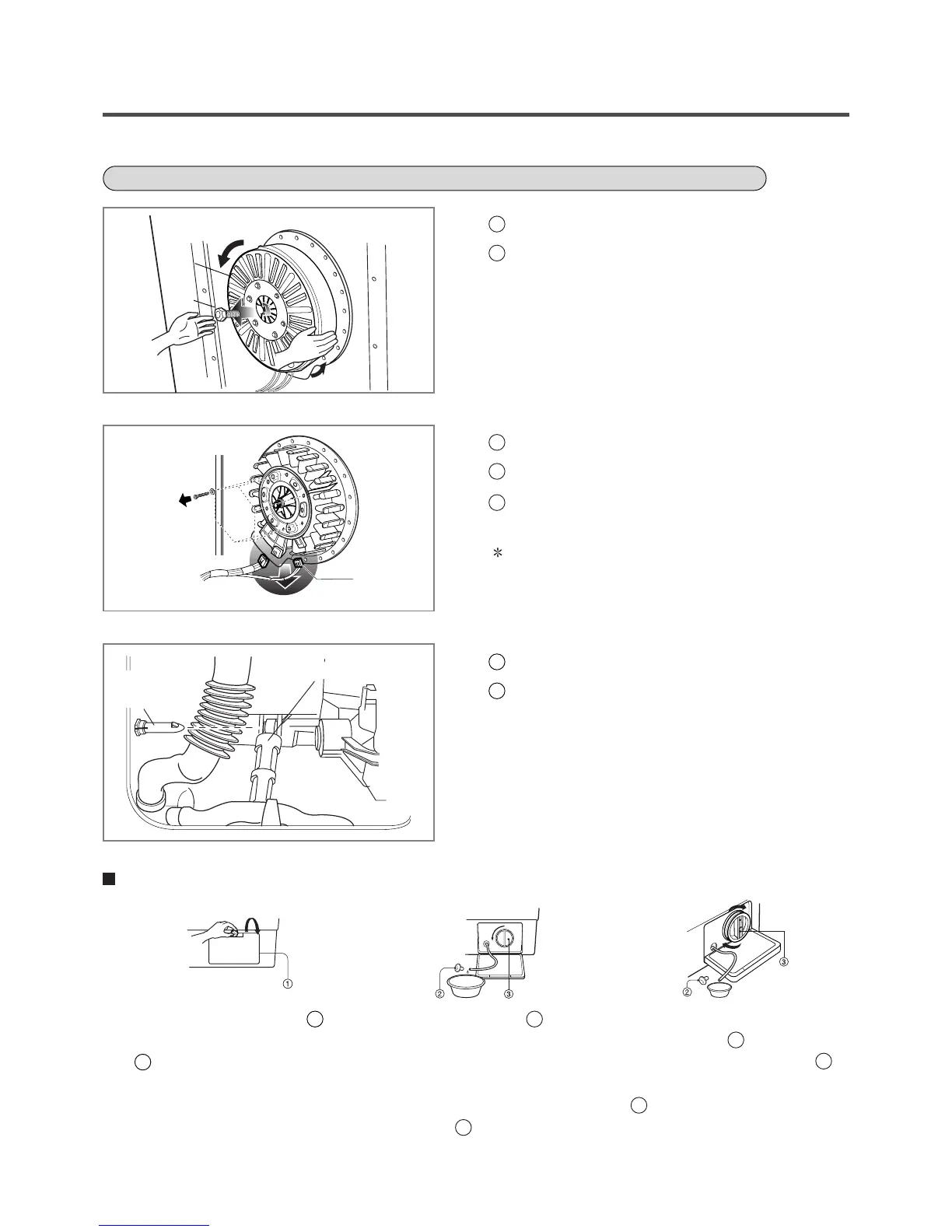

Remove the BACK COVER.
2
Unscrew the bolt to pull out the ROTOR assembly.
1
Disconnect the wiring connector.
2
Unscrew 6 bolts from the STATOR.
3
Remove the STATOR.
1
Pull out the hinge, pressing its snap.
1
2
2
Do not use the pulled-out hinge again. It may be
taken off during operation.
ROTOR ASSEMBLY, STATOR ASSEMBLY, FRICTION DAMPER ASSEMBLY
Clean the drain pump filter
Unplug the drain plug ( ) , then
the water flows out, At this time
use a vessel to prevent water from
flowing on the floor. If the water
does not flow any more, turn the
pump filter ( ) open to the left.
2
3
Take out any foreign material from
the pump filter ( ). After
cleaning, turn the pump filter( )
clockwise and insert the drain plug
( ) to the original place. close
the lower cover cap.
3
3
2
Rotor
Bolt
(1)
Hinge,
Damper
Damper
(ROTOR ASSEMBLY)
(STATOR ASSEMBLY)
(DAMPER)
Note : Hook of connector (1) is on the backside
