HEATER
THERMISTOR
①①

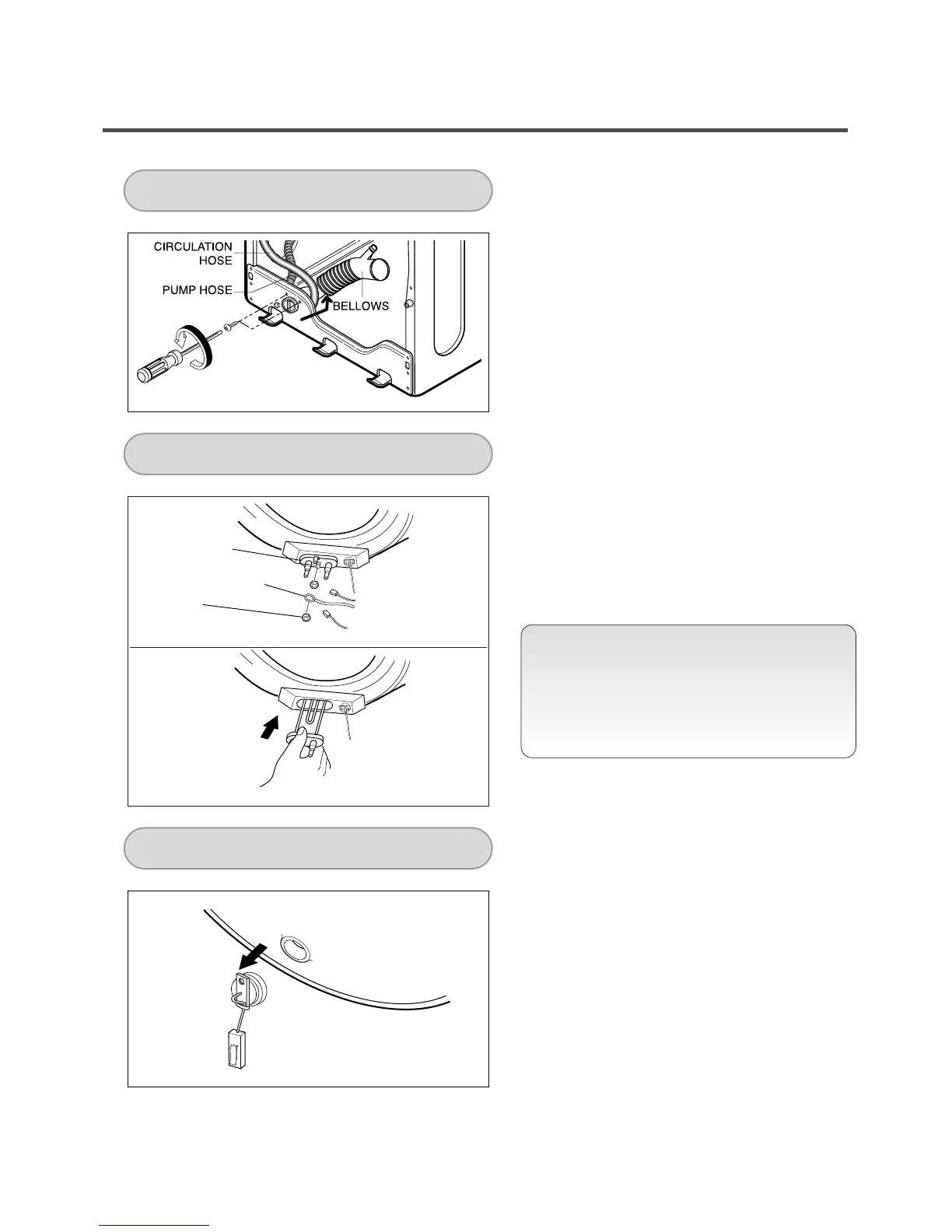

Disassemble the cabinet cover.
②②
Separate the pump hose, the bellows
and the circulation hose assembly from the
pump assembly.
③③ PPrreessss tthhee hhooookk..
④④
Disassemble the pump assembly in arrow
direction.
①①
Disassemble the cabinet cover.
②②
Separate 2 connectors from the heater.
③③
Loosen 2 nuts and pull out the heater.
①①
Disassemble the cabinet cover.
②②
Unplug the white connector from the thermistor.
③③
Pull it out by holding the bracket of the
thermistor.
※※
CAUTION
• When assembling the heater, insert the
heater into the heater clip on the bottom of
the tub.
• Tighten the fastening nut so the heater is
secure.
