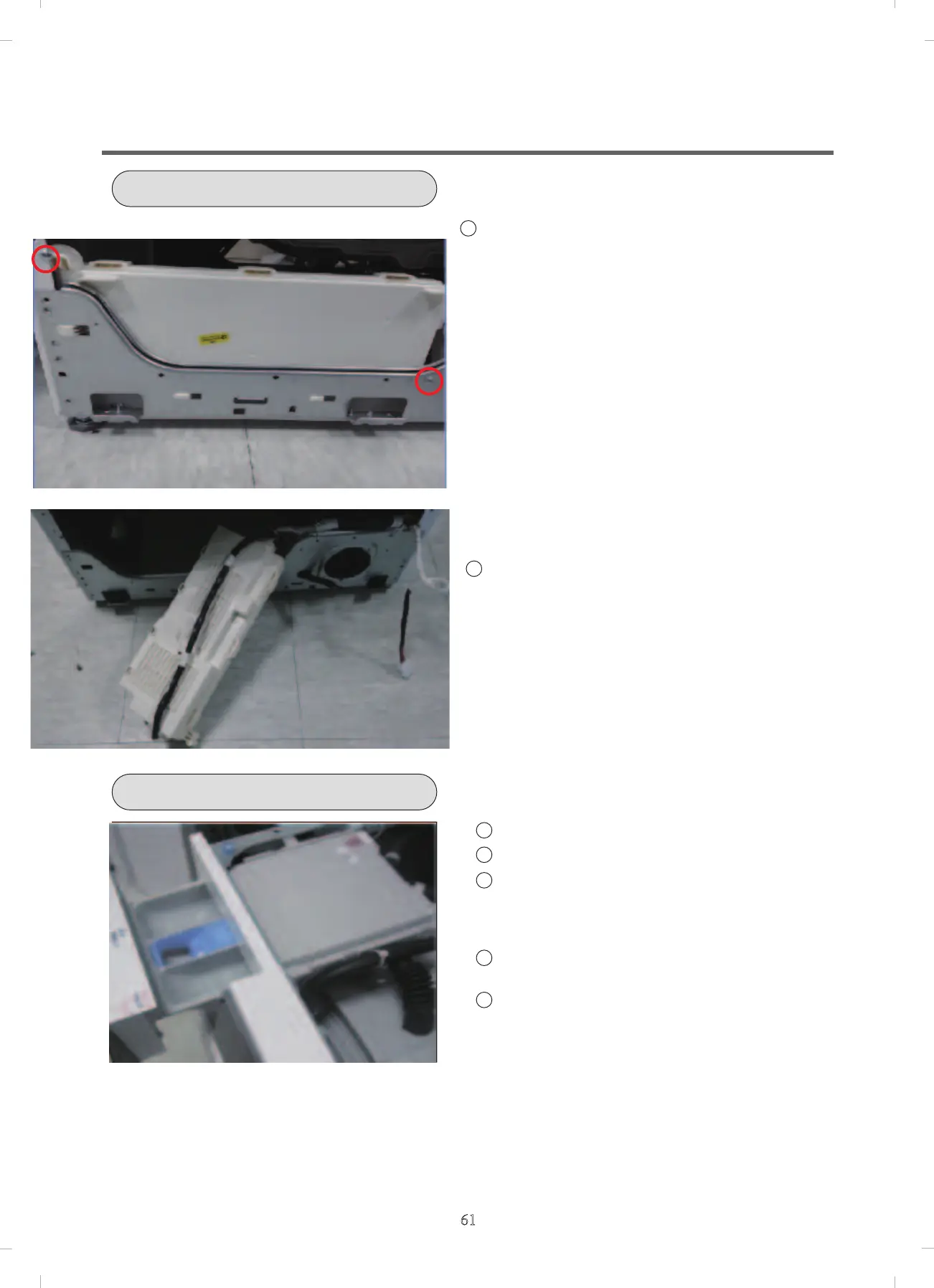

Unscrew two screw of the PWB
2
Disassembly PWB like the picture
PWB ASSEMBLY(MAIN)
1
The plate assembly(Top) are disassembled.
3
Two screws are unscrewed.
2
Pull the drawer to arrow direction.
4
Clamp
5
Cutting cable ties and the ventillation hose
are disassembly on the dispenser
DISPENSER ASSEMBLY
îî
To Next Page
