• Just check cut-off.
• Check the operating time.
* Door Locking time : 1~8 sec.
Check the time between from
input the power to parts
move up, then Door locked.
*
Door Releasing time : 25~100 sec.
Check the time between from off
the power to parts
move down, then Door released.
1
1
1
4

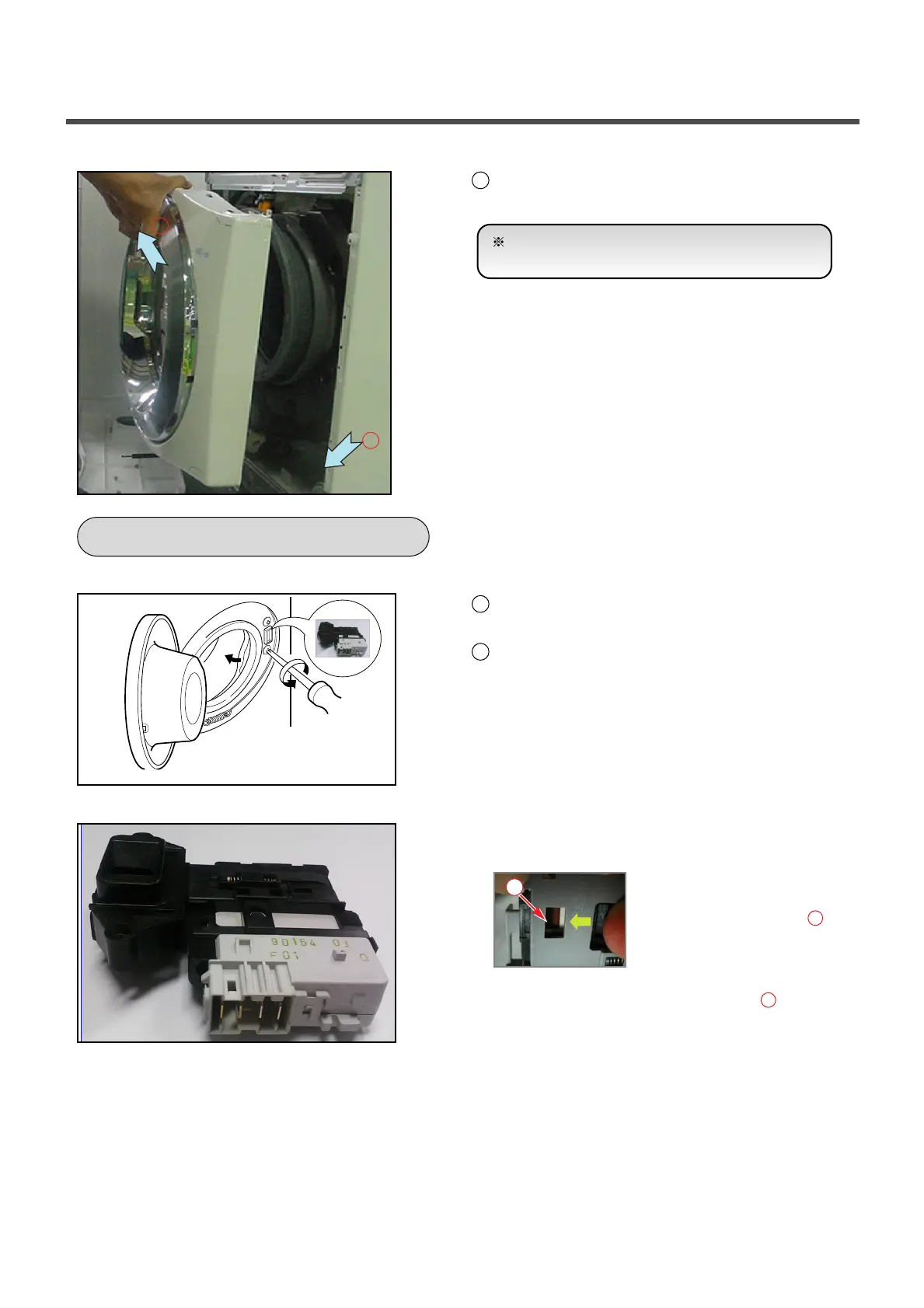

Lift and separate the cabinet cover.
1
Two screws are unscrewed and disassembly
cabinet cover.
2
The Door Lock S/W is disconnected form the
wiring connector and the strap.
NOTE:
When assembling the CABINET
COVER, connect the Door S/W connector.
SWITCH ASSY, DOOR LOCK
