LG F14A8RDS Series

59
• V ~ U (8~11Ω)
• U ~ W (8~11Ω)
• W ~ V (8~11Ω)
Motor Stator
U V W
Hall Sensor
Ha
Hb
Common
• Common ~ Ha (5~15kΩ)
• Common ~ Hb (5~15kΩ)
1
Remove the back cover.
2
After loosening the bolt, Rotor, pull out the
rotor.
1
Remove the 6 bolts from the stator.
2
Disconnect the 2 connectors.
1
Remove the hinges (Damper) at the Tub.
3
The hinge at the base is pulled off.
(In directions of the arrow)
2
The Hinge(Damper) at the base is pulled off by
pressing on the snaps at the sharp end.

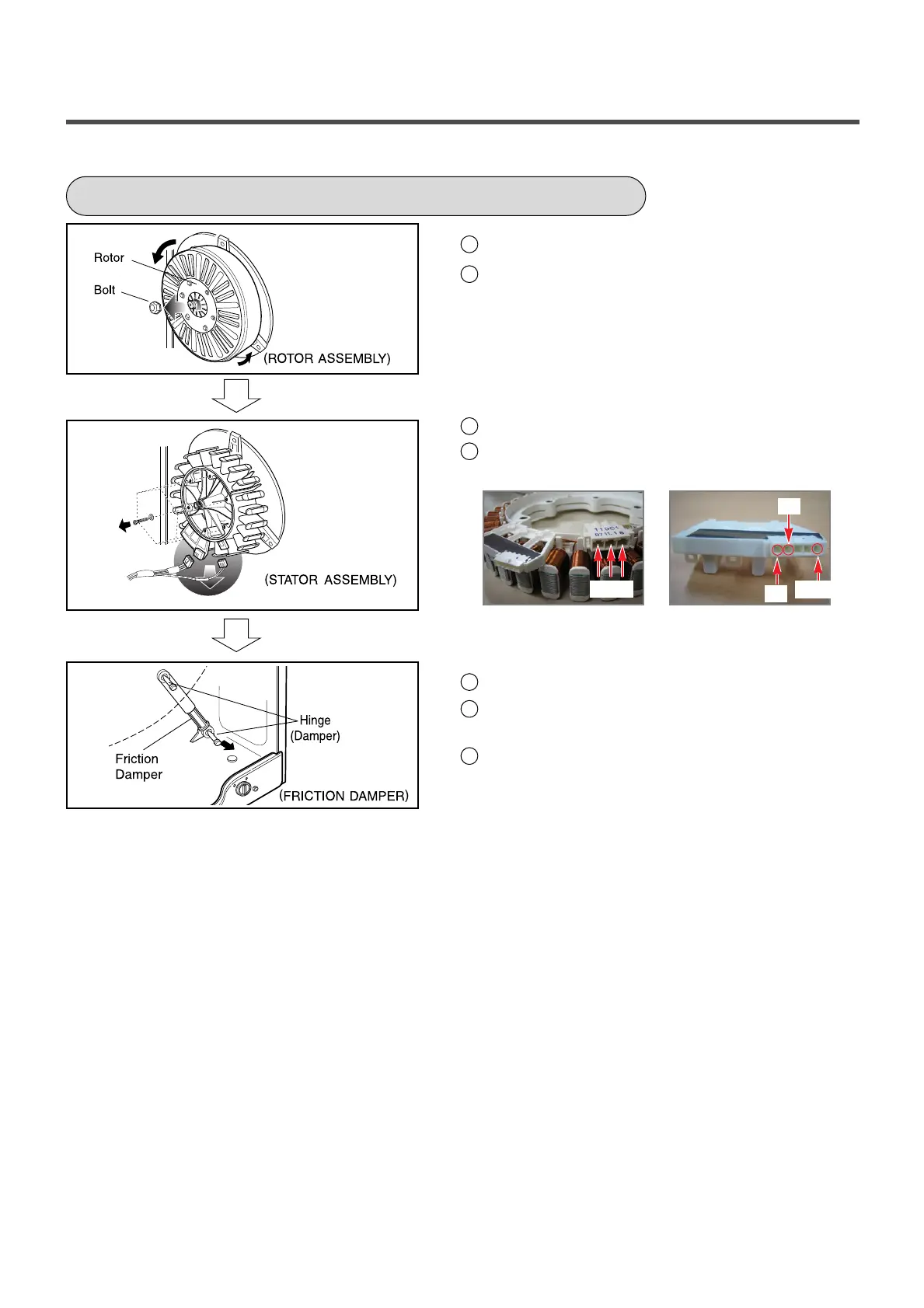

ROTOR ASSEMBLY, STATOR ASSEMBLY, FRICTION DAMPER
