3-25
PIN 4 : SLIN
PIN 11 : SL+

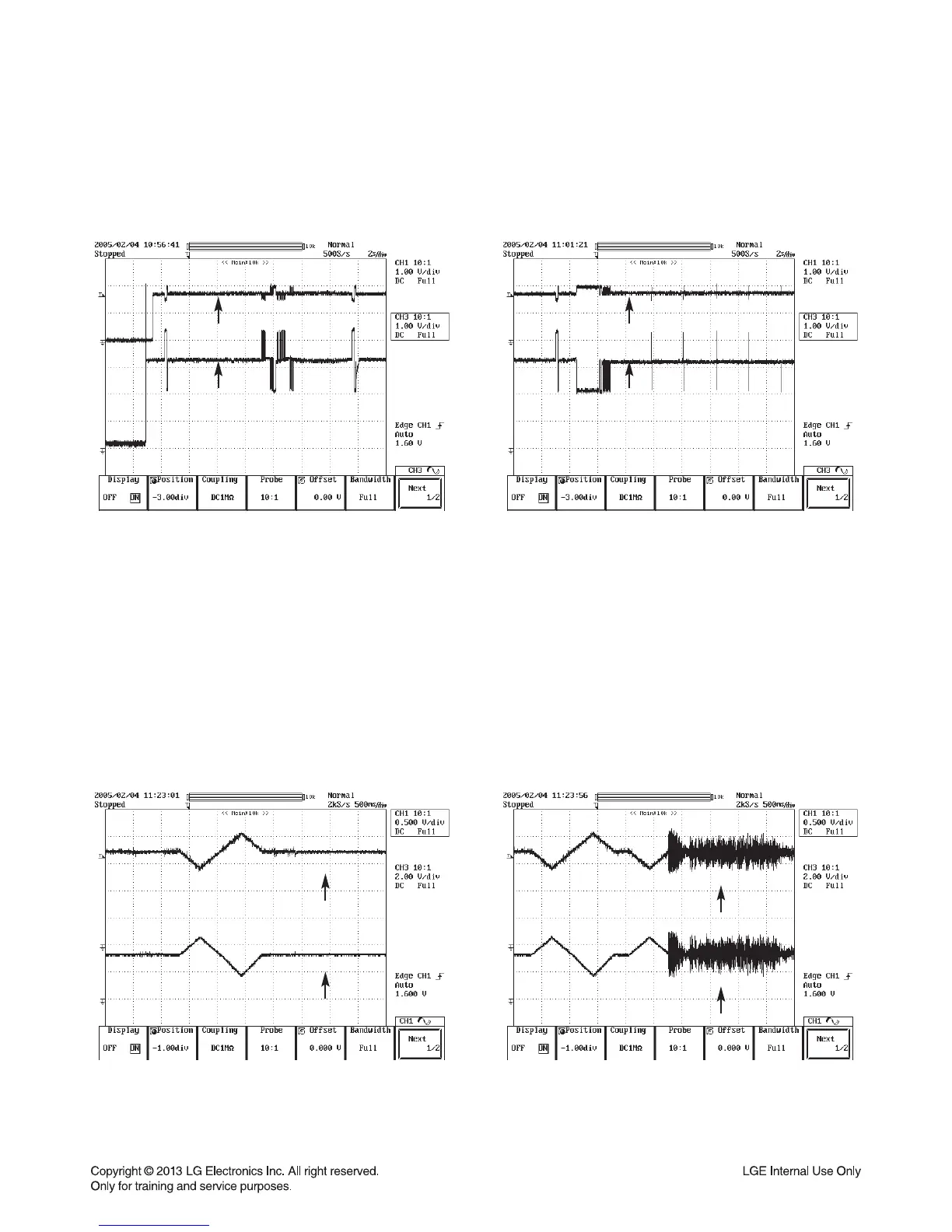

#2. SLED DRIVE AND MOTOR WAVEFORM
(IC401 PIN 4, 11) WHEN
FOCUS SEARCH
PIN 4: SLIN
PIN 11 : SL+
#2. SLED DRIVE AND MOTOR WAVEFORM
(IC401 PIN 4, 11) DURING
NORMAL PLAY
PIN 1: FAO
PIN 14 : FA
+
#3. FOCUS DRIVE AND MOTOR WAVEFORM
(IC401 PIN 1, 14)
• WHEN FOCUS SEARCH FAILED OR THERE
IS NO DISC ON TRAY
PIN 1 : FAO
PIN 14: FA
+
#3. FOCUS DRIVE AND MOTOR WAVEFORM
(IC401 PIN 1, 14)
• THERE IS DISC ON TRAY AND FOCUS
SEARCH SUCCESS
