3-24
PIN 20 : CD_RW
PIN 34 : DI (IC400 PIN46 DATA OUT)
PIN 19 : DO (IC400 PIN45 DATA IN)

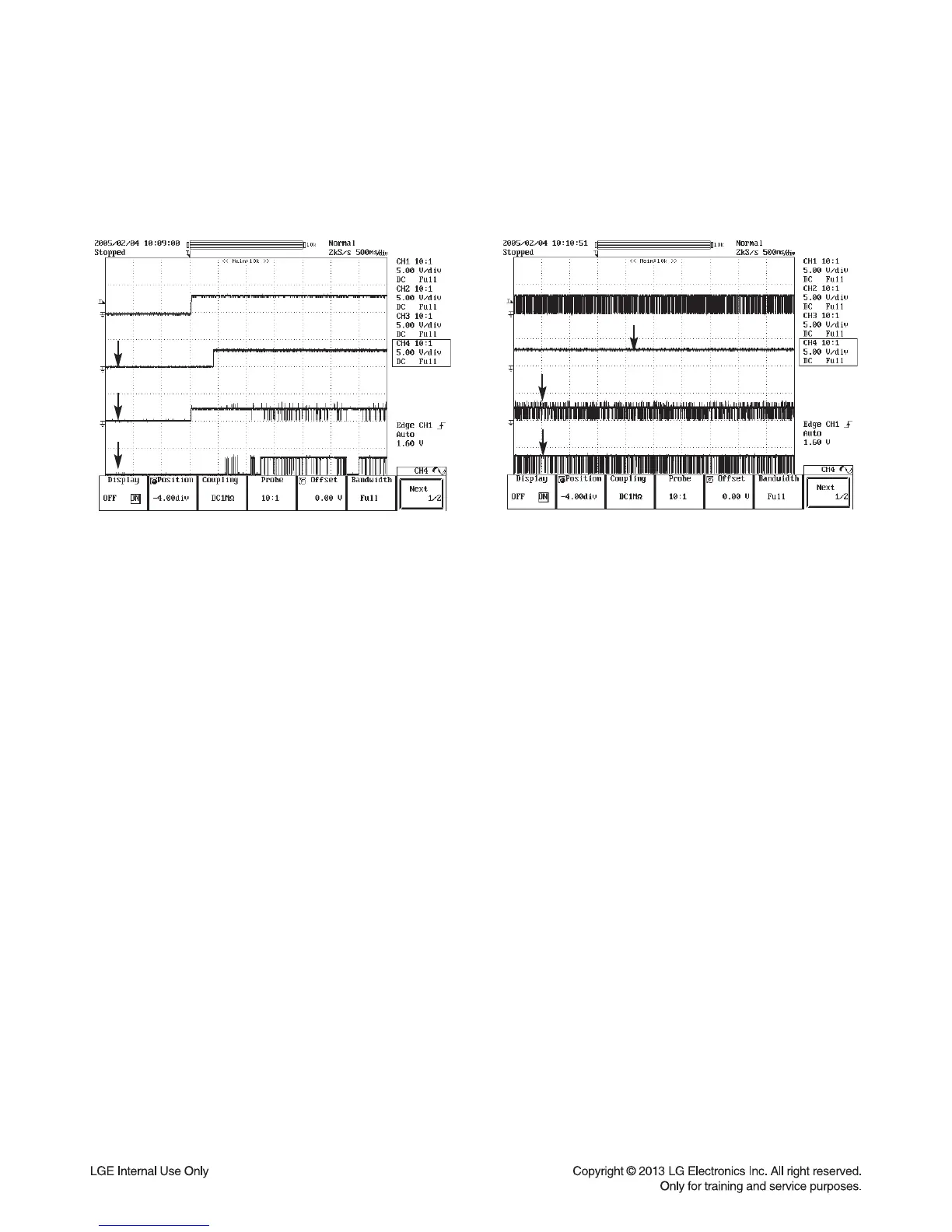

#1. MICOM INTERFACE WAVEFORM
(IC400 PIN19, 20, 30, 34) DURING
POWER ON
PIN 30 : CD_RW
PIN 34 : DI (IC400 PIN46 DATA OUT)
PIN 19 : DO (IC400 PIN45 DATA IN)
#2. MICOM INTERFACE WAVEFORM
(IC400 PIN19, 20, 30, 34) DURING
NORMAL PLAY
WAVEFORMS OF MAJOR CHECK POINT
