LG FH6 - Waveforms of Major Check Point; Dsp (Ic501)

3-32

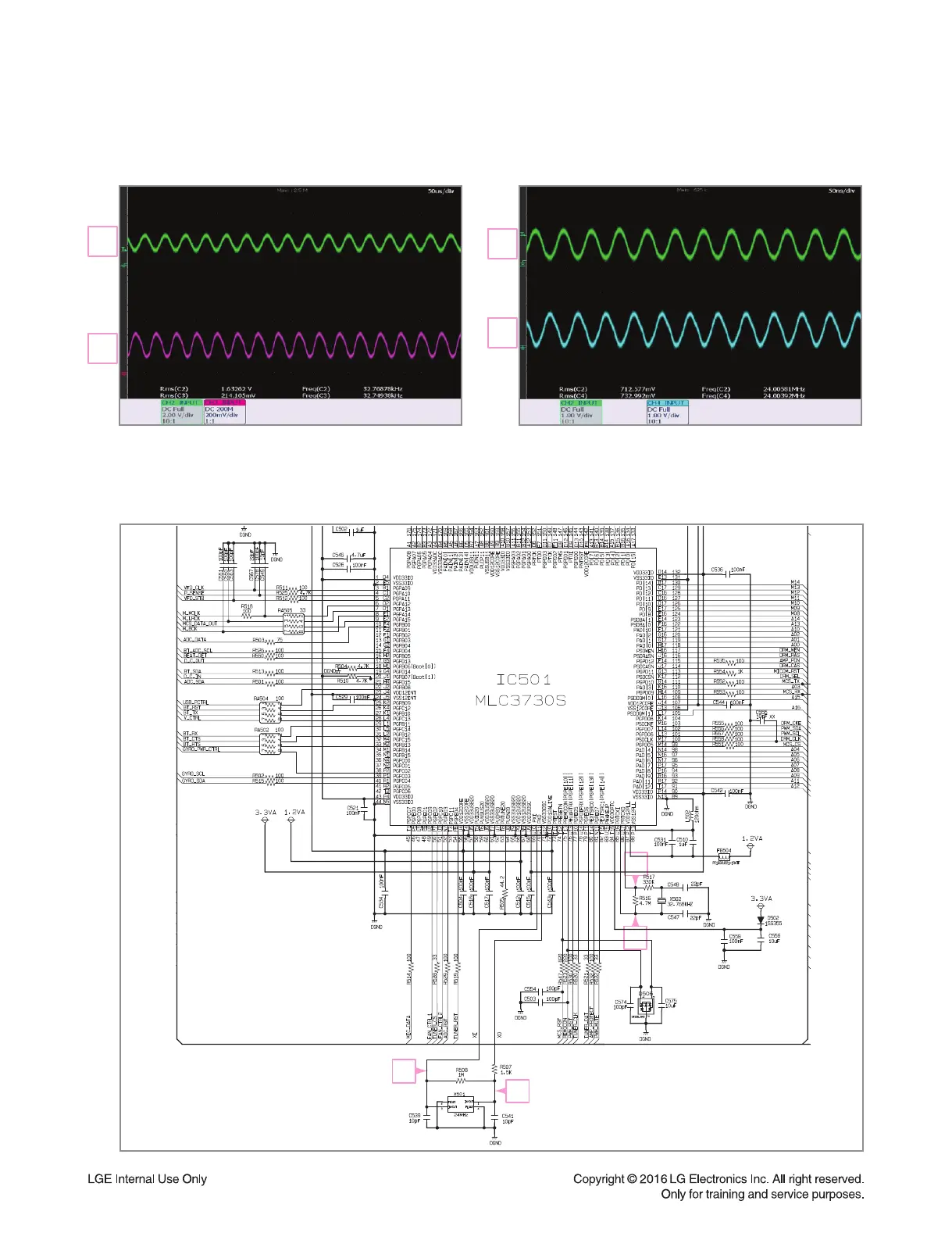

WAVEFORMS OF MAJOR CHECK POINT
1. DSP (IC501)
X
XI
XO
X
XI
XO
Fig 1-2. X501: Crystal of system 24 MHz
(R508, R507)
Fig 1-1. X502: Crystal of RTC 32.768 kHz
(R516 both sides)
2
1
3
4
1
2
4
3
